16

 En

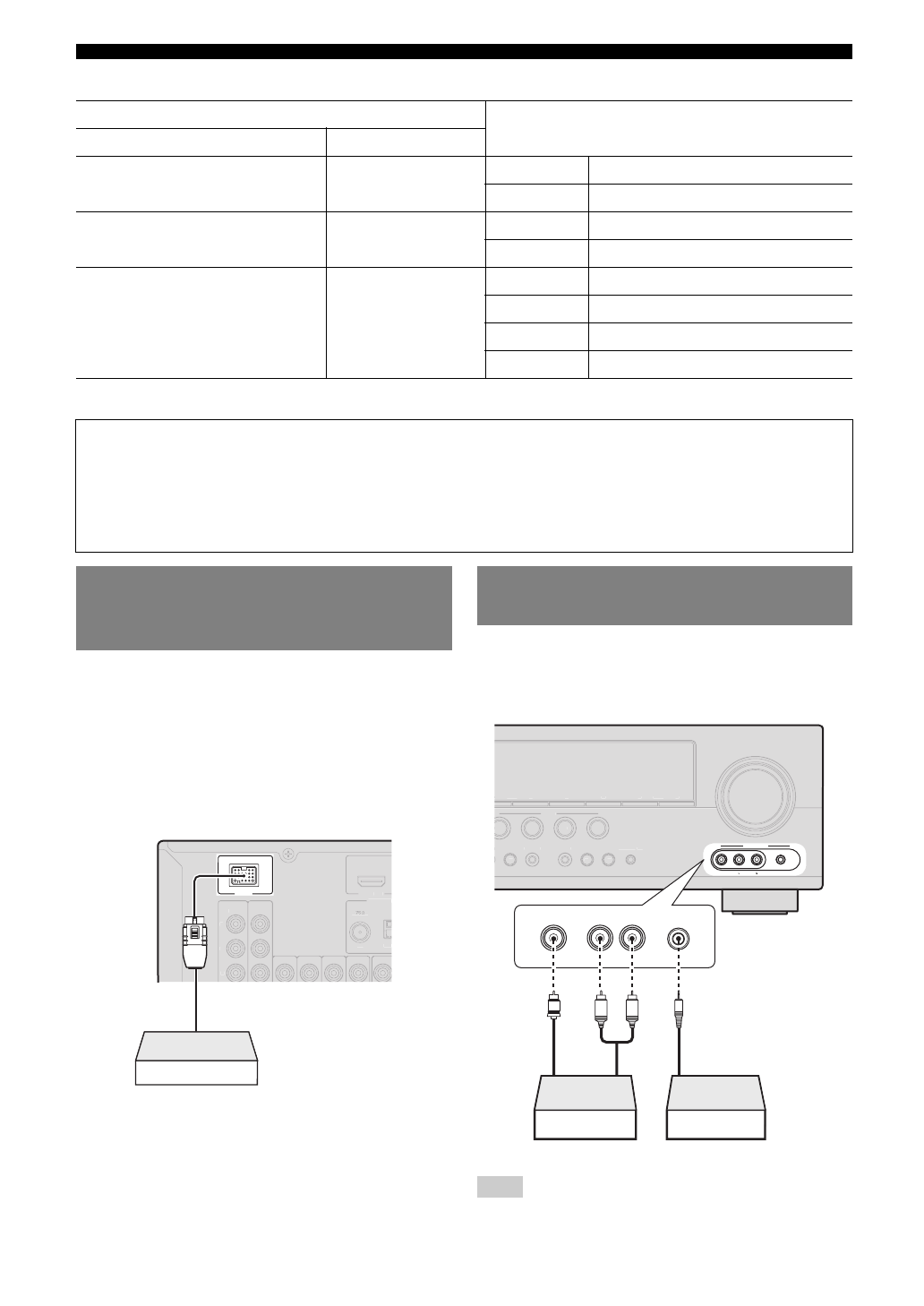

Connections

■

Audio player

y

•

We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.

This unit has the DOCK terminal, to which you can
connect a Yamaha iPod universal dock (YDS-11, sold
separately) or a Bluetooth wireless audio receiver (YBA-
10, sold separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
terminal.
Use a dedicated cable for connection between the dock/
receiver and this unit.

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit. Be sure to
turn down the volume of this unit and other components
before making connections.

Note

•

When external components are connected both the PORTABLE jack and
AUDIO jack, sound input from the PORTABLE jack is output.

Output jacks on the connected external component

Input sources/jacks of this unit

External components

Output jacks

External component with optical digital

output

Optical digital output

AV 1 (TV)

OPTICAL

AV 4

OPTICAL

External component with coaxial digital

output

Coaxial digital output

AV 2

COAXIAL

AV 3 (CD)

COAXIAL

External component with analog audio

output

Analog audio output

AV 5

AUDIO

AV 6

AUDIO

AUDIO 1

AUDIO

AUDIO 2

AUDIO

About audio/video output terminals

Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the
selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal,
COMPONENT VIDEO input signal or digital audio input signal cannot be output.
When using the AV OUT jack: connect an external component to the composite or analog audio terminal.
When using the AUDIO OUT jack: connect an external component to the analog audio terminal.

Connecting a Yamaha iPod universal
dock or Bluetooth™ wireless audio
receiver

DOCK

UNBAL.

FM

GND

ANTENNA

VIDEO

P

R

P

B

Y

VIDEO

HDMI OUT

COMPONENT

Yamaha iPod universal
dock/Bluetooth wireless
audio receiver

Using the VIDEO AUX jacks on the
front panel

VIDEO

AUDIO

PORTABLE

VIDEO AUX

OGRAM

STRAIGHT

INPUT

OPTIMIZER MIC

VOLUME

EFFECT

h

l

h

BD/DVD

TV

CD

RADIO

SCENE

PRESET

l

h

l

h

TUNING

FM

AM

DIRECT

R

L

AUDIO

VIDEO

V

L

R

PORTABLE

Game console/Camcorder

Music player

An
alog audio

ou
tput

An
alog audio

ou
tput

V

ideo output
