10

 En

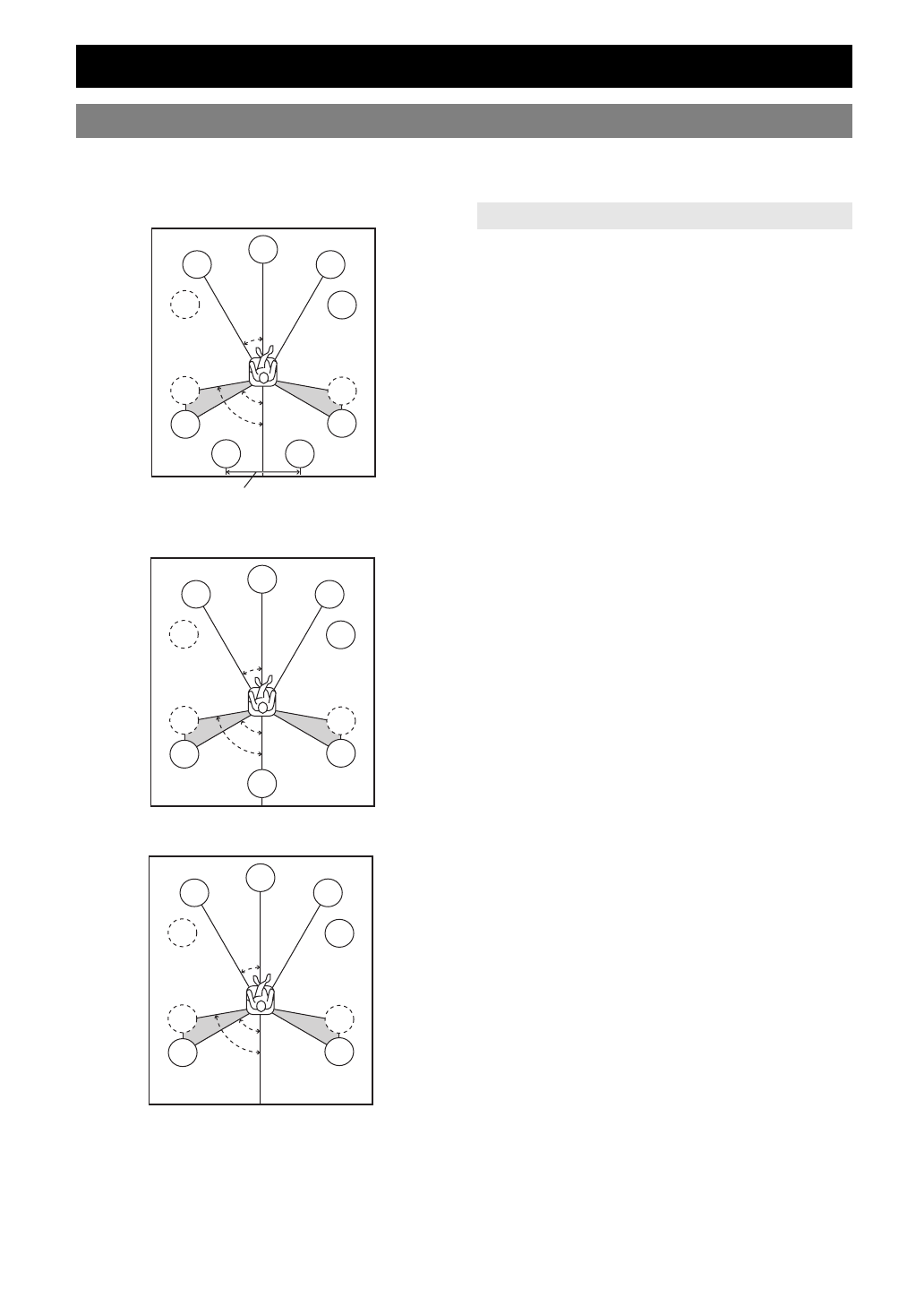

This unit supports up to 7.1-channel surround. We recommend the following speaker layout in order to obtain the
optimum surround effect.

7.1-channel speaker layout

6.1-channel speaker layout

5.1-channel speaker layout

■

Front left and right speakers (FL and FR)

The front speakers are used for the front channel sounds
(stereo sound) and effect sounds. Place these speakers at
an equal distance from the ideal listening position. When
using a screen, the appropriate top positions of the
speakers are about 1/4 of the screen from the bottom.

■

Center speaker (C)

The center speaker is for the center channel sounds
(dialog, vocals, etc.). Place it halfway between the left and
right speakers. When using a TV, place the speaker just
above or just under the center of the TV with the front
surfaces of the TV and the speaker aligned. When using a
screen, place it just under the center of the screen.

■

Surround left and right speakers (SL and SR)

The surround speakers are used for effect and surround
sounds.
Place them at the rear left and rear right facing the
listening position.
To obtain a natural sound flow in the 5.1-channel speaker
layout, place them slightly further back than in the 7.1-
channel speaker layout.

■

Surround back left and right speakers (SBL
and SBR) / Surround back speaker (SB)

The surround back left and right speakers are used for rear
effect sounds. When using the surround back speakers,
connect an external amplifier to the SURROUND BACK
jacks of the PRE OUT terminals. Place them at the rear of
the room facing the listening position at least 30 cm away
from each other, ideally at the same distance as that
between the front left and right speakers.
In the 6.1-channel speaker layout, surround back left and
right channel sound signals are mixed down and output
from the single surround back speaker.
In the 5.1-channel speaker layout, surround back left and
right channel sound signals are output from the surround
left and right speakers.

■

Subwoofer (SW)

The subwoofer speaker is used for bass sounds and low-
frequency effect (LFE) sounds included in Dolby Digital
and DTS signals. Use a subwoofer with a built-in
amplifier, such as the Yamaha Active Servo Processing
Subwoofer System. Place it exterior to the front left and
right speakers facing slightly inward to reduce reflections
from a wall.

Connections

Placing speakers

60˚

30˚

SBR

SBL

FL

FR

C

SL

SR

SR

80˚

SL

SW

SW

30 cm (12 in) or more

60˚

30˚

SB

FL

FR

C

SL

SR

SR

80˚

SL

SW

SW

60˚

30˚

FL

FR

C

SL

SR

SR

80˚

SL

SW

SW

Speaker channels
