Assembly



Before any work on the machine itself, pull the mains
plug.

Auxiliary Handle



Operate your machine only with the auxiliary handle 5.

Screw the auxiliary handle

5

 into the thread

4

 on the gear

head.

Changing the Tool (see figure A)

Drilling tools with a MK3 morse taper can be inserted directly
into the tool holder

1

. For drill bits with MK2 morse taper, use

the reducing sleeve

10

.

Pay attention that the morse cone and the morse taper are
free of grease.

The use of drilling tools with cylindrical shank is possible with
the key chuck

12

. For this, screw the tapered arbor

11

 onto

the key chuck

12

 and insert the tapered arbor with the reduc-

ing sleeve

10

 into the tool holder

1

.



Do not exert any force when inserting the morse taper
or the tapered arbor.

This can damage the tool holder and

the inserted tool.

Place the drift

9

 into the opening

2

 in such a manner that the

rounded-off side faces to the auxiliary handle

5

.

If the drift

9

 cannot be inserted through the drive spindle, turn

the tool insert a little.
Press the drift

9

 toward the auxiliary handle

5

 and release the

tool insert from out of the tool holder.

Dust/Chip Extraction



Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the mate-
rials to be worked.



Prevent dust accumulation at the workplace.

Dusts can

easily ignite.

Operation

Starting Operation



Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.

Gear selection, mechanical



Actuate the gear selector 3 only when the machine is at
a standstill.

Four speed ranges can be preselected with the gear selector

3

. Press the gear selector

3

 down, slide it to the requested

setting according to the gearing diagram and allow it to en-
gage at the respective end position.

If the gear selector

3

 cannot be slid to the stop, lightly rotate

the drive spindle via the drill bit.

Switching On and Off

To

start

 the machine, press the On/Off switch

7

 and keep it

pressed.

To lock the

pressed

 On/Off switch

7

, press the lock-on button

6

.

To

switch off

 the machine, release the On/Off switch

7

 or

when it is locked with the lock-on button

6

, briefly press the

On/Off switch

7

 and then release it.

To save energy, only switch the power tool on when using it.

Henk Becker
Executive Vice President
Engineering

Helmut Heinzelmann
Head of Product Certification
PT/ETM9

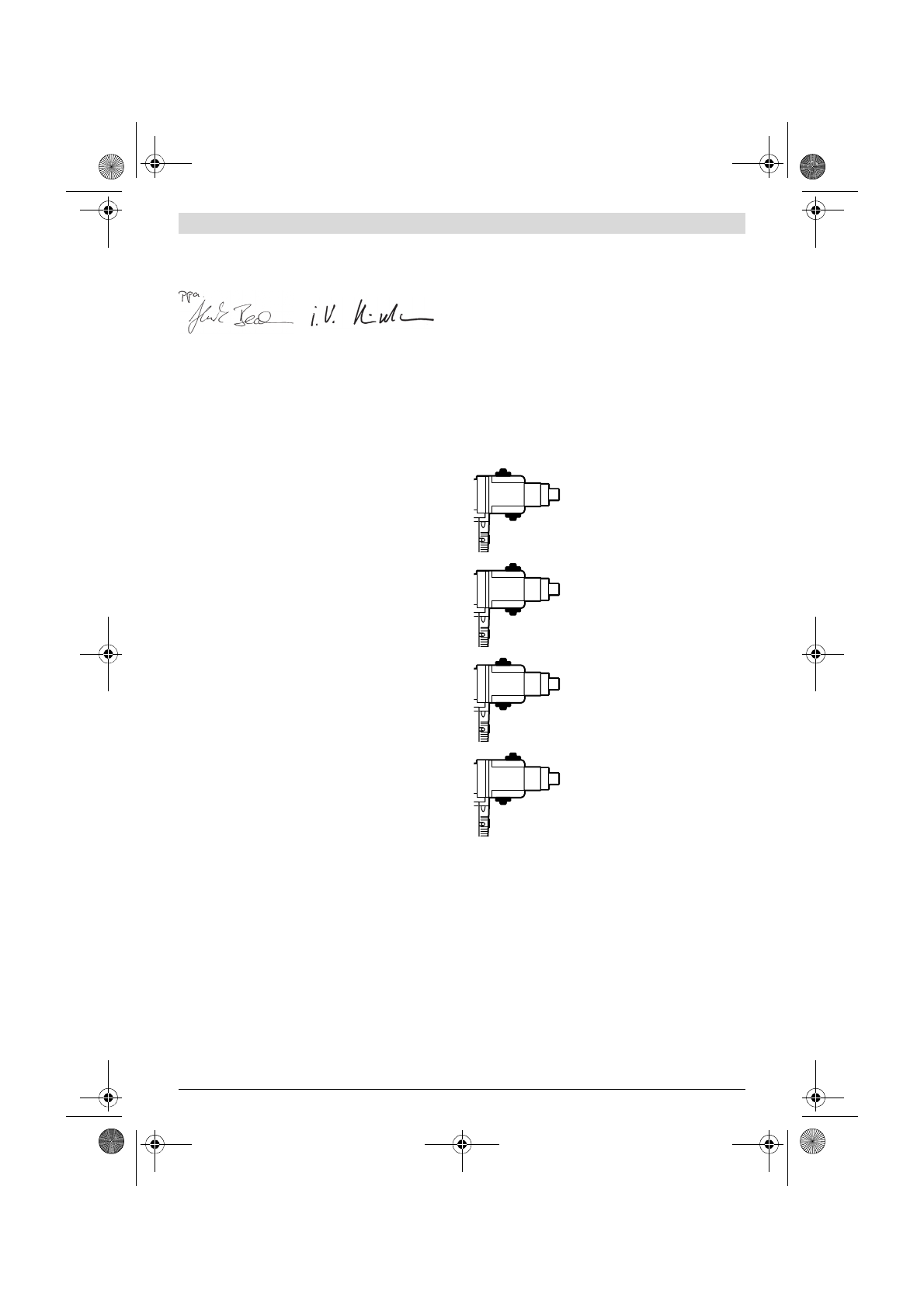

1st gear:

Low speed range; for working with
large drilling diameter.

2nd gear:

Average speed range.

3rd gear:

Average speed range.

4th gear:

High speed range; for working with
small drilling diameter.
