6

En

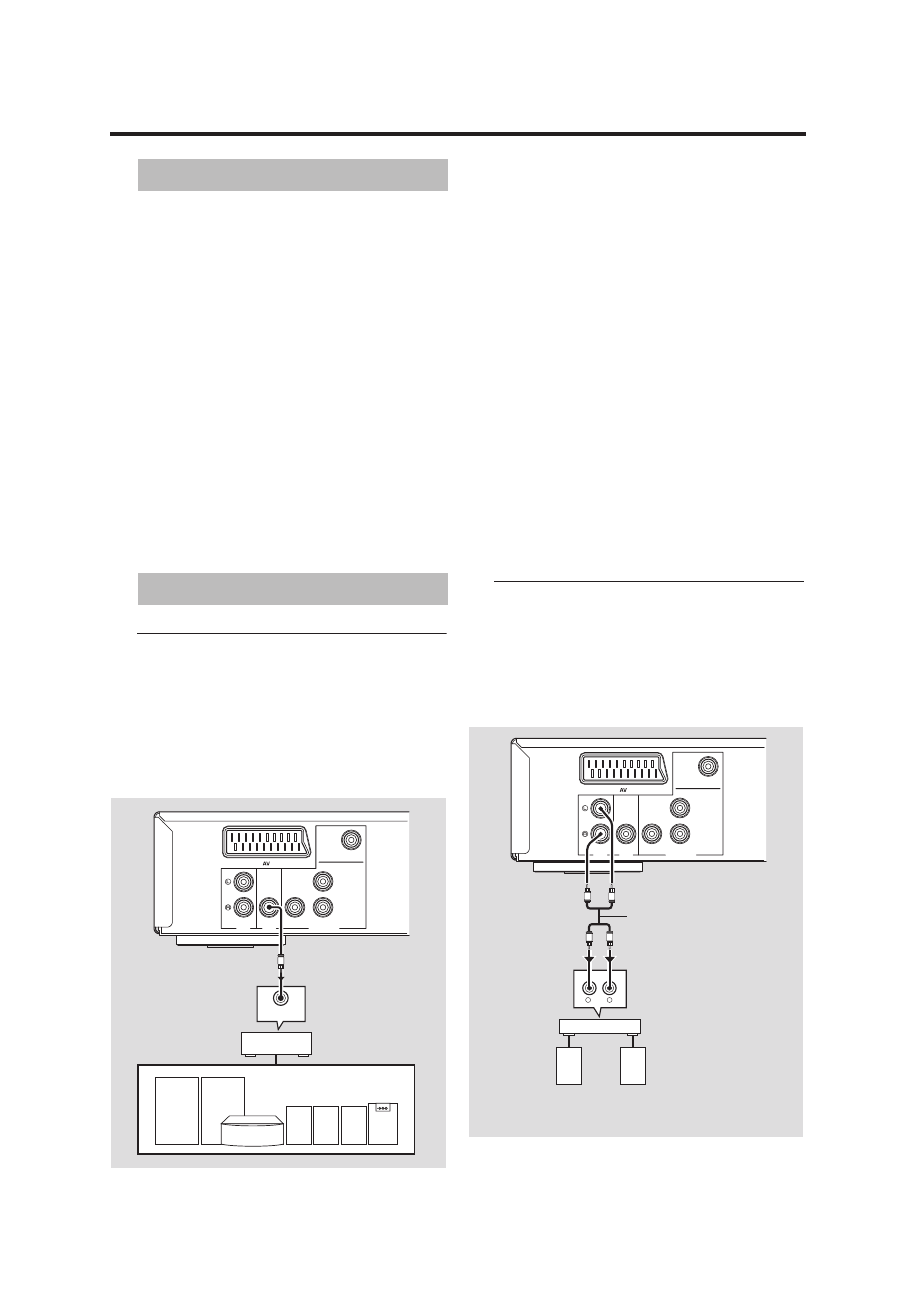

Connections

Be sure to turn off this unit and unplug the
power supply cable before you make or
change connections.

• Depending on the component you wish

to connect, there are various ways to
make connections. Possible connections
are described below.

• Refer to the manuals of your other

components as necessary to make the
best connections.

• Do not connect this unit via your VCR.

The video quality could be distorted by
the copy protection system.

• Do not connect the audio out jack of

this unit to the phono in jack of your
audio system.

Digital connection

This unit has a coaxial digital out jack.
Connect DIGITAL OUT - COAXIAL jack
of this unit to your AV receiver equipped
with a Dolby Digital, DTS, or MPEG
decoder using a commercially available
coaxial cable.

You need to set “DIGITAL
OUTPUT” to “ALL” (see “DIGITAL
OUTPUT” on page 23).

Notes:
– If the audio format of the digital output

does not match the capabilities of your
receiver, the receiver produces a distorted
sound or no sound at all. Make sure to
select the appropriate audio format from
the menu screen on the disc.
Pressing AUDIO on the remote control once
or more may change not only the audio
language but also the audio format. The
selected format appears in the front panel
display for several seconds.

– If you wish to enjoy Dolby Digital, DTS, and

MPEG formats, you must connect this unit
to an AV receiver that supports these
formats.

Analog connection

This unit has analog output jacks.
Connect AUDIO OUT (L, R) jacks of this
unit to the corresponding input jacks of
your audio component (such as a stereo
amplifier) using the supplied audio cable.

General notes on connections

Audio connections

AUDIO

OUT

DIGITAL

OUT

VIDEO OUT

V I D E O

COAXIAL

COMPONENT

Y

P

B

/C

B

P

R

/C

R

COAXIAL

IN

C

AV receiver

Speakers

This unit

AUDIO

OUT

DIGITAL

OUT

VIDEO OUT

V I D E O

COAXIAL

COMPONENT

Y

P

B

/C

B

P

R

/C

R

CD/DVD

R

L

L

R

R

L

Right

speaker

Left

speaker

Stereo
amplifier

This unit

Audio pin cable
(supplied)
