Rotating

shaft

Recess on

main unit

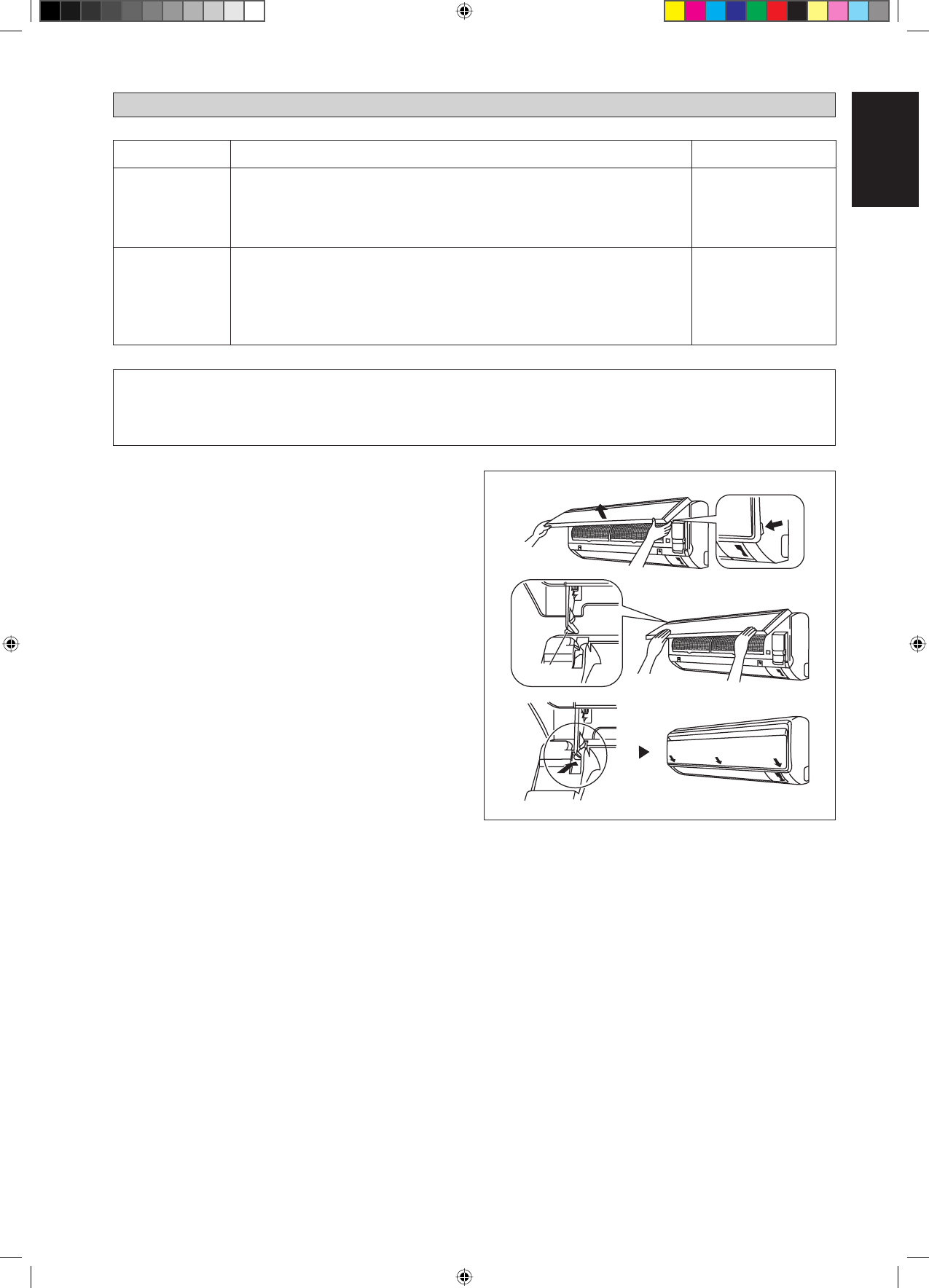

SERVICE AND  MAINTENANCE

Open the front panel.

 Hold the panel at the recesses on the main unit
(2 recesses on right and left sides) and lift it until it
stops.

1.

•

Remove the front panel.

 While lifting the front panel further, slide it to the right
and pull it to the front side. The left rotating shaft is
detached. Slide the right rotating shaft to the left and
pull it to the front side to remove it.

2.

•

Attach the front panel.

 Align the right and left rotating shafts of the front panel
with the grooves and push them all the way in.
 Gently close the front panel. (Push both ends and the
center on the front panel.)

3.

•

•

Service Parts

Maintenance Procedures

Period

Indoor air filter

Remove any dust adhering to the filter by using a vacuum cleaner or wash
in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent.
Rinse the filter well and dry before placing it back onto the unit.
Do not use gasoline, volatile substances or chemicals to clean the filter.

1.

2.
3.

At least once every
2 weeks.
More frequently if
necessary.

Indoor unit

Clean any dirt or dust on the grille or panel by wiping it with a soft cloth
soaked in lukewarm water (below 40°C/104°F) and a neutral detergent
solution.
Do not use gasoline, volatile substances or chemicals to clean the indoor
unit.

1.

2.

At least once every
2 weeks.

More frequently if
necessary.

!

CAUTION

•   Avoid direct contact of any coil treatment cleaners on plastic part. This may cause plastic part to deform as a result

of chemical reaction.
