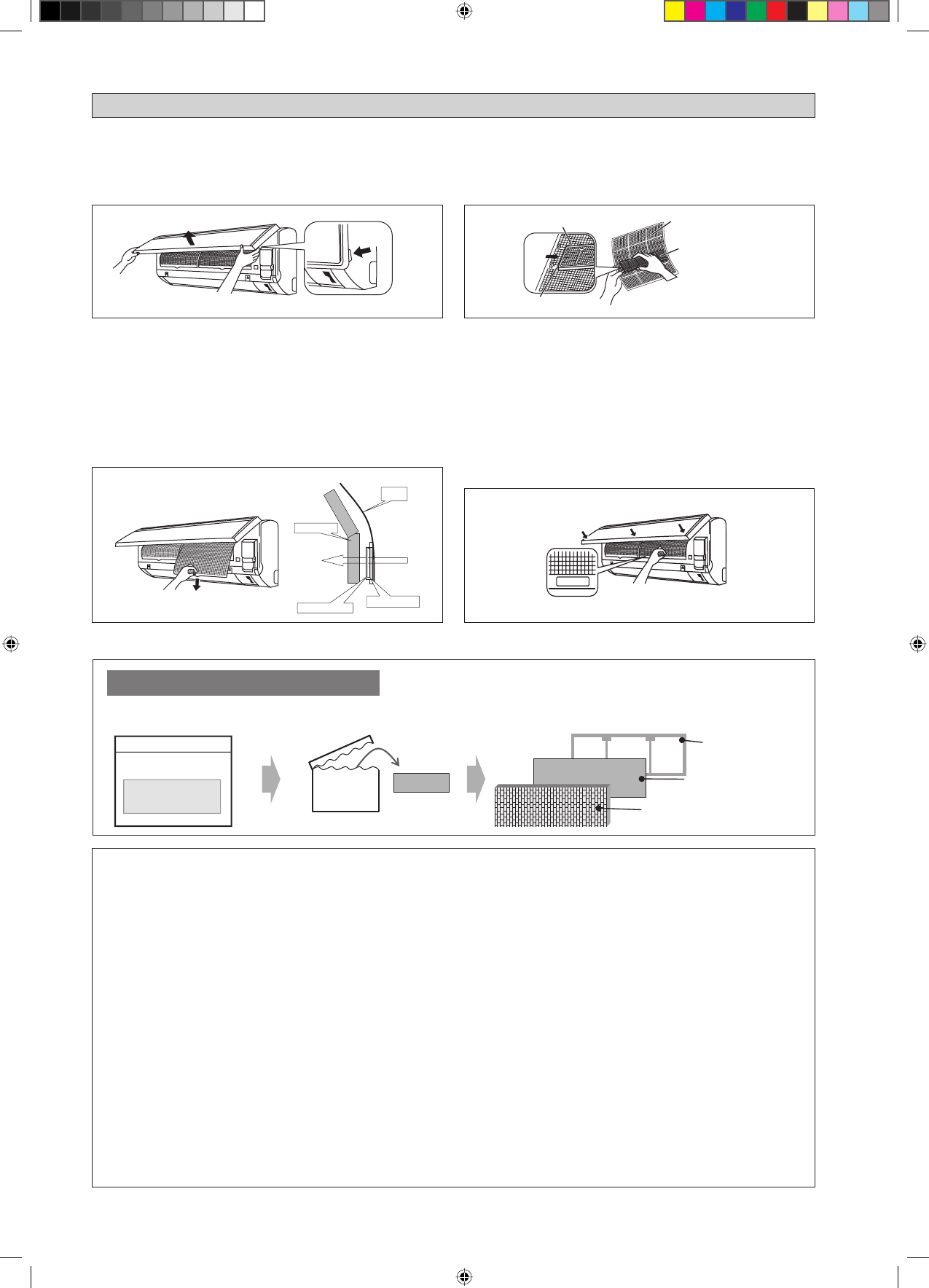

1-16

FRONT

Recess on
main unit

Filter frame

Tab

Air filter

Bio filter with
bacteriostatic,
virustatic functions

Bio Filter packs in a
hermetically-sealed bag.

Take it out
at the time of installation.

Slip the Filter in between Filter frame and
Titanium Apatite  Filter.

Titanium Apatite  Filter

Bio Filter

Filter frame

Titanium Apatite Filter (Bio Filter)
Attached Concept

Air Filter

Heat exchanger

Bio Filter attached part

Titanium Apatite  Filter

AIR FILTER

!

 CAUTION

•  Please use this Bio Filter during

dry season

 such as winter.

•

Storage, handling and disposal methods.

•

  The lifetime of this Bio Filter is about a year after opening.

•

   In case you do not use this Bio Filter right away, please don’t place the Bio Filter in any place where it will be

subjected to direct sunlight, high temperatures and/or high humidity.

•

   There can be slight differences between Bio Filter color because of the manufacturing reasons, there is no effect

on the unit performance.

•

   Please open this bag right before you use it. Bio Filter should remain unopened and sealed in its packaging until

right before usage. (It may cause performance deterioration or quality change.)

•

   To avoid danger of suffocation and any unexpected accident, please dispose the plastic bag immediately after you

remove the Bio Filter. Keep out of reach of babies and children.

•

   If you keep this Bio Filter for a long time, please keep it unopened and store in a cool place avoiding direct

sunlight.

•

  Please dispose the old Bio Filter as nonflammable garbage after use.

•

Operation with dirty filters:

(1) cannot deodorize the air.

(3) results in poor heating or cooling.

(2) cannot clean the air.

(4) may cause odour.

•  To order Bio Filter, contact the service shop where you bought the air conditioner.

1. Open the front panel.

  •  Hold the panel at the recesses on the main unit

(2 recesses on right and left sides) and lift it until it
stops.

4. Clean or replace each filter.

 See

figure.

  •  When shaking off remaining water, do not wring the

filter.

2. Pull out the air filters.

  •  Push a little upwards the tab at the center of each air

filter, then pull it down.

5. Set the air filter and Bio filter with bacteriostatic,

virustatic functions as they were and close the
front panel.

  •  Insert claws of the filters into slots of the front panel.

Close the front panel slowly and push the panel at the
3 points. (1 on each side and 1 in the middle.)

  •  The air filter and Bio filter with bacteriostatic,

virustatic functions have a symmetrical form in the
horizontal direction.

3. Take off the Bio filter with bacteriostatic,

virustatic functions.

  •  Hold the recessed parts of the frame and unhook the

four claws.

Installation Procedure for Bio Filter

* Bio Filter and Titanium Apatite Filter are optional accessories.
