Water

leaking

Water
retention

End
dipped
into
water

Drain

Correct

Wrong

Water

leaking

Water

leaking

Wrong

Wrong

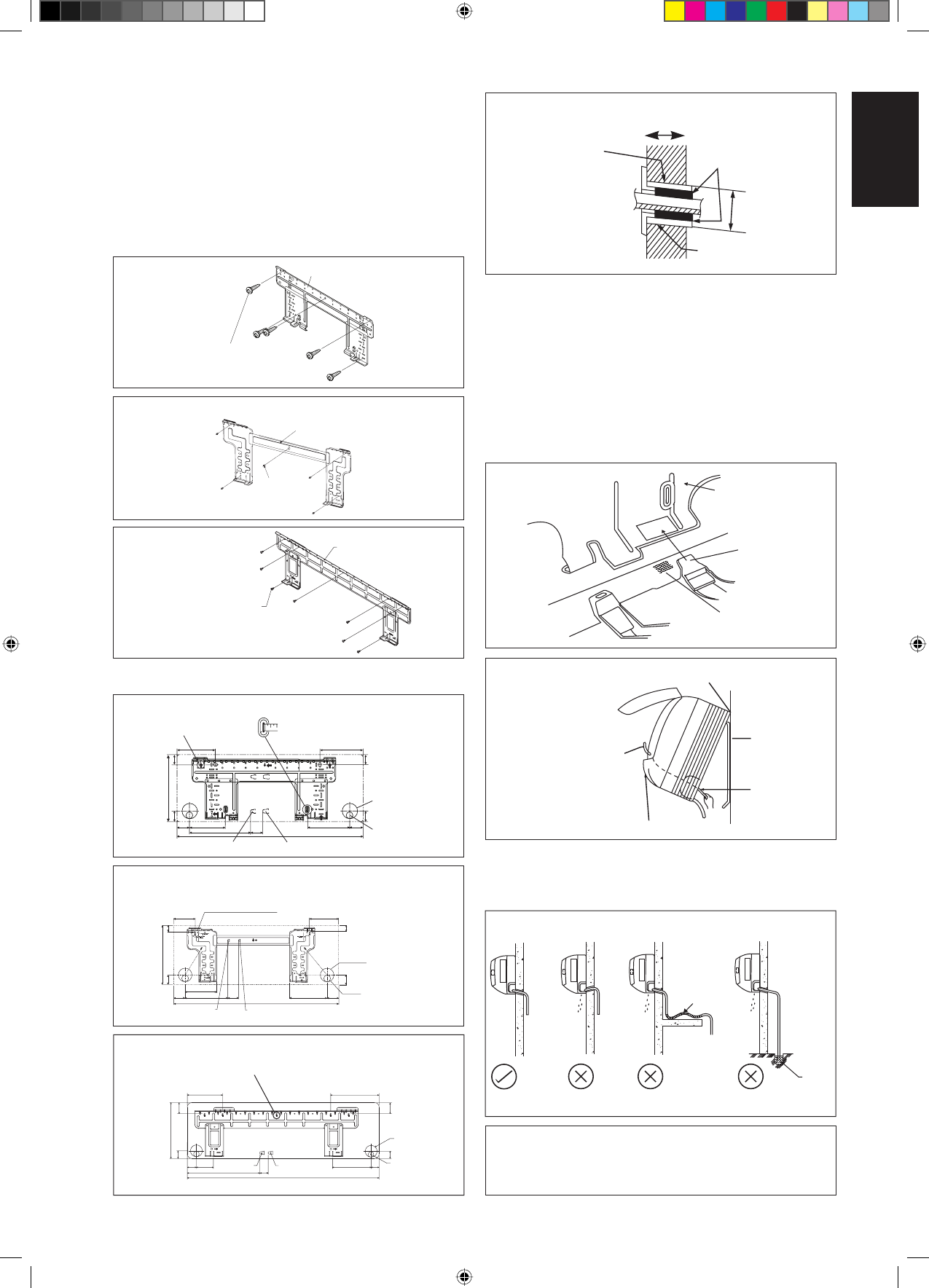

Mounting Installation Plate

Ensure that the wall is strong enough to withstand the weight
of the unit. Otherwise, it is necessary to reinforce the wall
with plates, beams or pillars.
Use the level gauge for horizontal mounting, and fix it with 5
suitable screws for FTXN/FTK 25/35 and 7 suitable screws
for FTXN/FTK 50/60.
In case the rear piping draws out, drill a hole 65mm in
diameter with a cone drill, slightly lower on the outside wall
(see figure).

Water Drainage Piping

The indoor drain pipe must be in a downward gradient for
smooth drainage. Avoid situations that are likely to cause
water to leak.

Water Drainage

Mount The Unit Onto The Installation Plate

Hook the indoor unit onto the upper portion of the installation
plate (Engage the two hooks at the rear top of the indoor unit
with the upper edge of the installation plate). Ensure that the
hooks are properly seated on the installation plate by moving
it to the left and right.

How To Attach The Indoor Unit

Hook the claws of the bottom frame to the mounting plate.

How To Remove The Indoor Unit

Push up the marked area (at the lower part of the front
grille) to release the claws.

Mounting plate

Mounting plate fixing screw

FTXN 50/60

FTK 50/60

Mounting plate

Mounting plate fixing screw

FTXN 25/35
FTK 25/35

W h e n   s t r i p p i n g   t h e   e n d s
of interconnecting wires in
advance, bind right ends of
wires with  insulating tape.

Hand indoor unit’s hook here.

Mounting plate

Interconnecting
wires

Wire guide

!

 CAUTION

•   Do not install the unit at altitude over 2000m for both

indoor & outdoor.

Hole with cone drill

Inside

Ø 65

Wall embedded pipe
(Field supply)

Wall hole cover
(Field supply)

Wall embedded pipe
(Field supply)

Outside

Caulking

Recommended Mounting Plate Retention Spots And

Dimensions

Through the wall hole Ø 65mm

Drain hose position

Use tape measure as shown.
Position the end  of a tape measure at

Ñ

Gas pipe end

Liquid pipe end

166

184

181.7

55.5

54.5

153.8

263

51.9

800

45.9

42.2

288

42.2

45.9

FTXN 25/35

FTK 25/35

«

Recommended mounting plate retention spots
(5 spots in all)

Gas pipe end

Liquid pipe end

Through the wall hole Ø 65mm

Drain hose position

«

Recommended mounting plate retention spots

(5 spots in all)

104

141

30

46

56

181

800

55

207

52

153

46

30

288

Through the wall hole
Ø 65mm

190

173

61

310

61

Drain hose position

Gas pipe end

Liquid pipe end

48

45

580

1065

219

40

40

91

45

FTXN 50/60

FTK 50/60

«

Recommended mounting plate retention spots
(7 spots in all)

Mounting plate

Clip

Bottom frame

Mark (Rear side)

Front grille

All dimensions are in mm

Mounting plate

Mounting plate
fixing screw

(ALTERNATIVE INSTALLATION PLATE)

FTXN 25/35

FTK 25/35

(ALTERNATIVE INSTALLATION PLATE)

FTXN 25/35

FTK 25/35

All dimensions are in mm

All dimensions are in mm
