24

 | English

1 609 92A 1GM | (23.6.15)

Bosch Power Tools

Permissible Workpiece Dimensions
Maximum

 workpiece sizes:

Minimum

 workpiece sizes (= all workpieces that can be

clamped left or right from the saw blade with the supplied ma-
terial clamp

27

): 100 x 40 mm (length x width)

Cutting depth, max.

(0 °/0 °): 60 mm

Cutting Off

– Firmly clamp the workpiece as appropriate for its dimen-

sions.

– Adjust the requested mitre and/or bevel angle.
– Switch on the machine.
– Press lever

3

 and slowly guide the tool arm downward by

handle

1

.

– Saw through the workpiece applying uniform feed.
– Switch off the machine and wait until the saw blade has

come to a complete stop.

– Guide the tool arm slowly upward.

Replacing the Insert Plate

The black insert plate

7

 can become worn after prolonged use

of the power tool.

Replace a defective insert plate.

– Bring the power tool into the working position.
– Unscrew the fastening screw

31

 using the hex key

24

 and

remove the old insert plate.

– Insert the new insert plate and screw the fastening screw

31

 in tight again.

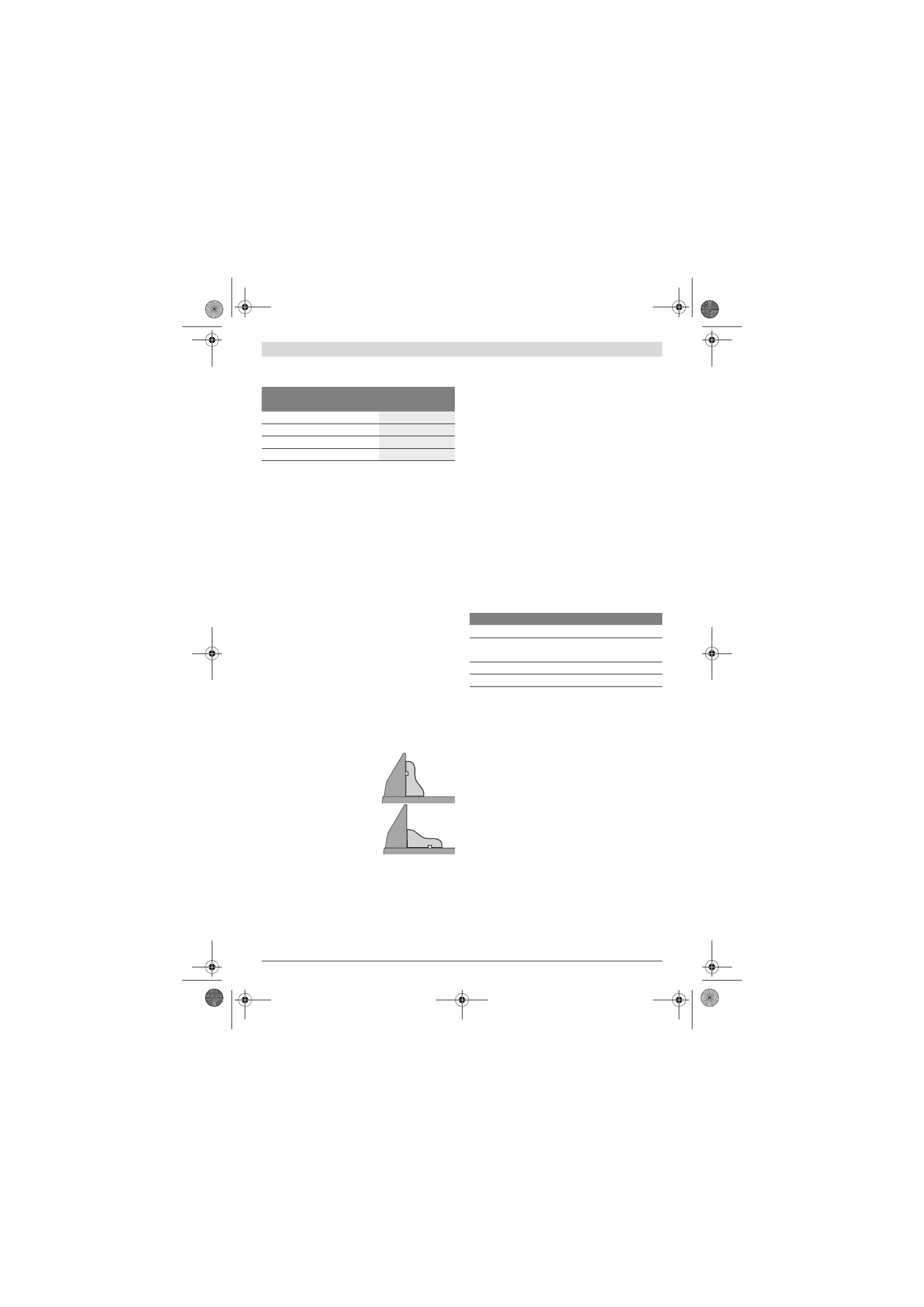

Sawing Profile Strips

Profile strips/mouldings can be sawn in two different ways:

Always make trial cuts with the mitre angle setting first on
scrap wood.

Transport

Before transporting the power tool, the following steps must
be carried out:
– Bring the machine into the transport position.
– Remove all accessories that cannot be mounted firmly to

the power tool.

If possible, place unused saw blades in an enclosed con-
tainer for transport.

– For lifting or transporting, hold the power tool by the re-

cessed grips

13

 on the side of the saw table

12

.



When transporting the power tool, use only the trans-
port devices and never use the protective devices.

Maintenance and Service

Maintenance and Cleaning



Before any work on the machine itself, pull the mains
plug.

Cleaning

For safe and proper working, always keep the power tool and
its ventilation slots clean.

The retracting blade guard must always be able to move freely
and retract automatically. Therefore, always keep the area
around the retracting blade guard clean.

Remove dust and chips after each working procedure by
blowing out with compressed air or with a brush.

Clean the roller

17

 regularly.

Accessories

After-sales Service and Application Service

Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:

www.bosch-pt.com

Bosch’s application service team will gladly answer questions
concerning our products and their accessories.

In all correspondence and spare parts orders, please always
include the 10-digit article number given on the nameplate of
the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com

Mitre/Bevel Angle

Height x Width

Horizontal

Vertical

0 °

0 °

60 x 120 mm

45 °

0 °

60 x 85 mm

0 °

45 °

37 x 120 mm

45 °

45 °

37 x 85 mm

– Placed against the fence

– Lying  flat  on  the  saw  table

Article number

Saw blades for wood

Saw blade 216 x 30 mm, 24 teeth

Saw blade 216 x 30 mm, 48 teeth

2 608 640 431

2 608 640 432

Saw blades for hardwood and composite materials

Saw blade 216 x 30 mm, 60 teeth

2 608 640 433
