 | English

1 609 92A 1GM | (23.6.15)

Bosch Power Tools



Make sure that the guard operates properly and that it
can move freely.

Never lock the guard in place when

opened.



Keep the floor free of wood chips and material remain-
ders.

You could slip or trip.



Do not touch the saw blade after working before it has
cooled.

The saw blade becomes very hot while working.



Never leave the machine before it has come to a com-
plete stop.

Cutting tools that are still running can cause in-

juries.



Guide the saw blade against the workpiece only when
the machine is switched on.

Otherwise there is danger of

kickback when the saw blade becomes wedged in the
workpiece.



Never stand on the power tool.

Serious injuries can occur

when the power tool tips over or when inadvertently com-
ing into contact with the saw blade.



Products sold in GB only:

 Your product is fitted with a

BS 1363/A approved electric plug with internal fuse
(ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place by an
authorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.

Products sold in AUS and NZ only:

 Use a residual current

device (RCD) with a rated residual current of 30 mA or
less.

Symbols

The following symbols can be important for the operation of
your power tool. Please memorise the symbols and their
meanings. The correct interpretation of the symbols helps
you operate the power tool better and more secure.

Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in wood. In this, mitre
angles from – 48 ° to +48 ° as well as bevel angles from 0 ° to
45 ° are possible.
The capacity of the power tool is designed for sawing hard-
wood and softwood.

The power tool is not suitable for cutting aluminium or other
non-ferrous metals or alloys.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Handle

2

Laser warning label

3

Lever for releasing the tool arm

4

Blade guard

5

Retracting blade guard

6

Fence

7

Insert plate

8

Mounting holes

9

Locking knob for various mitre angles

10

Mitre angle indicator

11

Scale for mitre angle

12

Saw table

13

Recessed handles

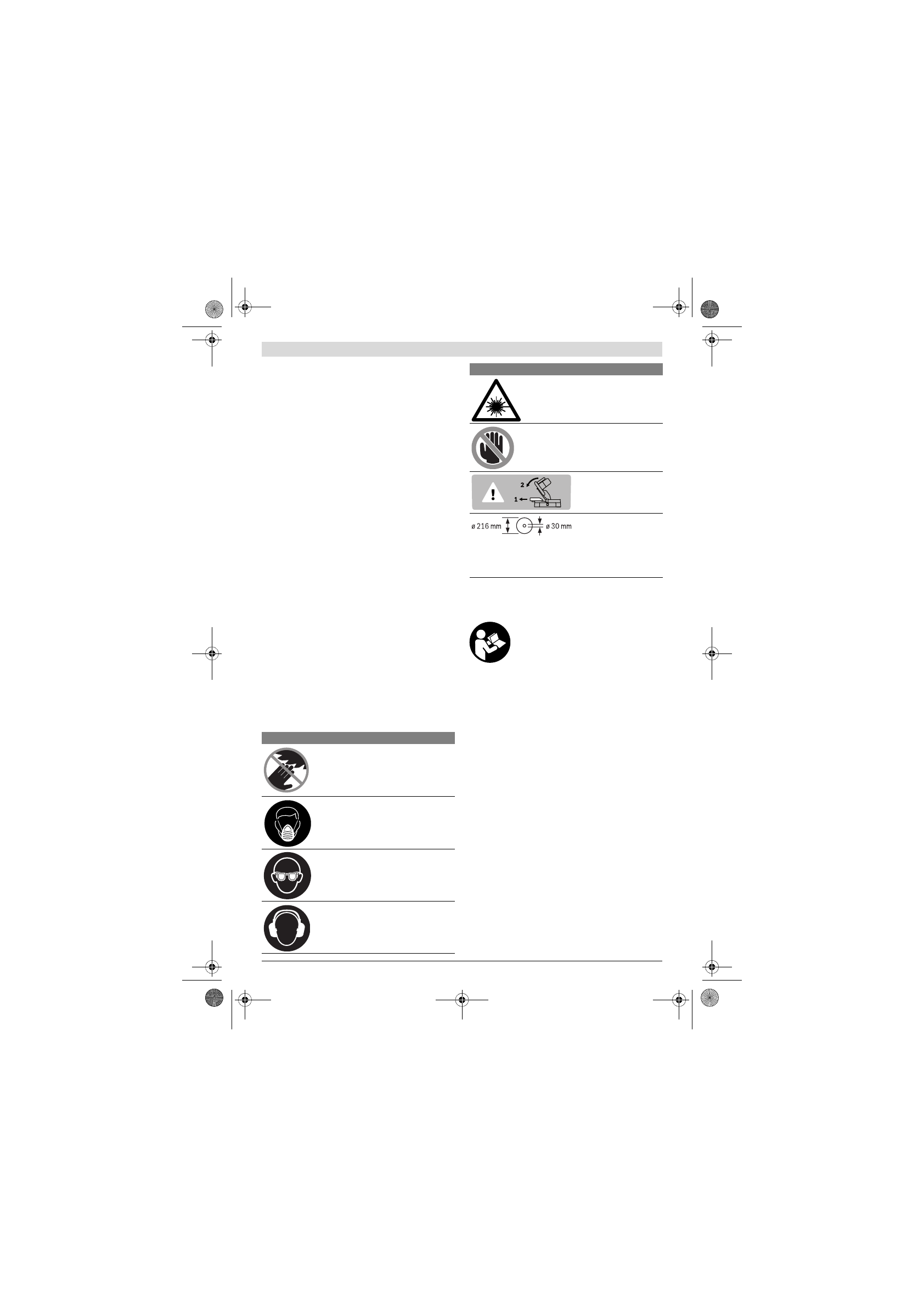

Symbols and their meaning



Keep hands away from the cutting
area while the machine is running.

Danger of injury when coming in con-
tact with the saw blade.



Wear a dust respirator.



Wear safety goggles.



Wear ear protectors.

Exposure to

noise can cause hearing loss.



Laser Radiation
Do not stare into beam
Class 2 laser product



Danger area! Keep hands, fingers or
arms away from this area.

The adjustable fence
must be pulled outward
when sawing bevel an-
gles.

Observe the dimensions of the saw blade.
The hole diameter must match the tool
spindle without play. Do not use reducers
or adapters.

Symbols and their meaning
