English |
31
Bosch Power Tools
1 619 929 K16 | (29.8.11)
Product Description and
Specifications
Read all safety warnings and all instruc-
tions.
Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Intended Use
The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in hard and soft-
wood, as well as in particle and fibre board. In this, mitre an-
gles from – 60 ° to +60 ° as well as bevel angles from – 1 ° to
+47 ° are possible.
When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.
Product Features
The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.
1
Scale for clearance of the saw blade to the parallel
guide
8
2
Sliding table
3
Angle stop
4
Carrying handle
5.1
Blade guard with clamping lever *
5.2
Blade guard with clamping screw and side protector *
6
Vacuum connection on the blade guard
7
Riving knife
8
Parallel guide
9
Guide groove for angle stop
10
Table extension
11
Table width enlargement
12
Fastening nut for the cover of the saw blade storage and
for attaching the push stick
13
Push stick
14
Cover of the saw blade storage
15
Ring spanner (24 mm; 23 mm)
16
Mounting holes
17
Saw table
18
Clamping handle for table width enlargement
19
Handwheel
20
Crank for lowering and raising the saw blade
21
Safety flap of On/Off switch
Wear safety goggles.
Do not dispose of power tools into house-
hold waste!
Only for EC countries:
According to the European Guideline
2002/96/EC for Waste Electrical and Elec-
tronic Equipment and its implementation
into national right, power tools that are no
longer usable must be collected separately
and disposed of in an environmentally cor-
rect manner.
Observe the dimensions of the saw blade. The hole diameter
must match the tool spindle without play. Do not use reduc-
ers or adapters.
When changing the saw blade, pay attention that the kerf
width is not less than 2,3 mm and the blade thickness not
greater than 2,3 mm. Otherwise, there is danger that the riv-
ing knife (2,3 mm) becomes wedged in the workpiece.
The maximal possible workpiece height is 79 mm.
Left side
Indicates the position of the locking lever
for locking the saw blade and for adjust-
ing the bevel angle (saw blade tiltable).
Right side
Indicates the rotation direction of the
handwheel for lowering (
transport posi-
tion
) and raising (
working position
) the
saw blade.
Turning direction of the knurled screw for
locking/releasing the angle stop on the
sliding table.

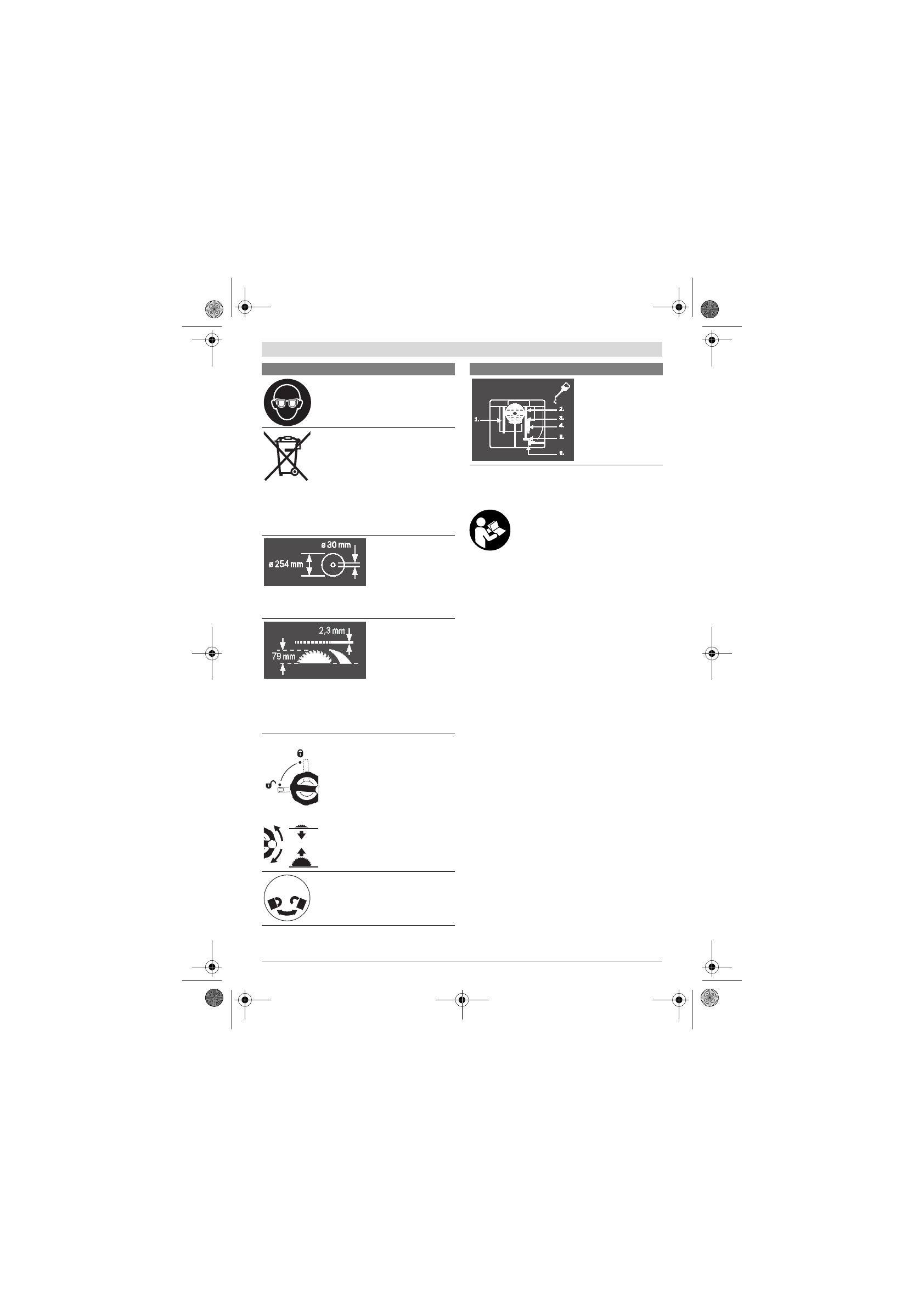

Symbols and their meaning
If required, open the bot-
tom plate and apply oil to
the lubrication points of
the power tool at the indi-
cated locations.
Symbols and their meaning
OBJ_BUCH-1375-002.book Page 31 Monday, August 29, 2011 5:05 PM
