64

SYSTEM CONNECTIONS (cont.)

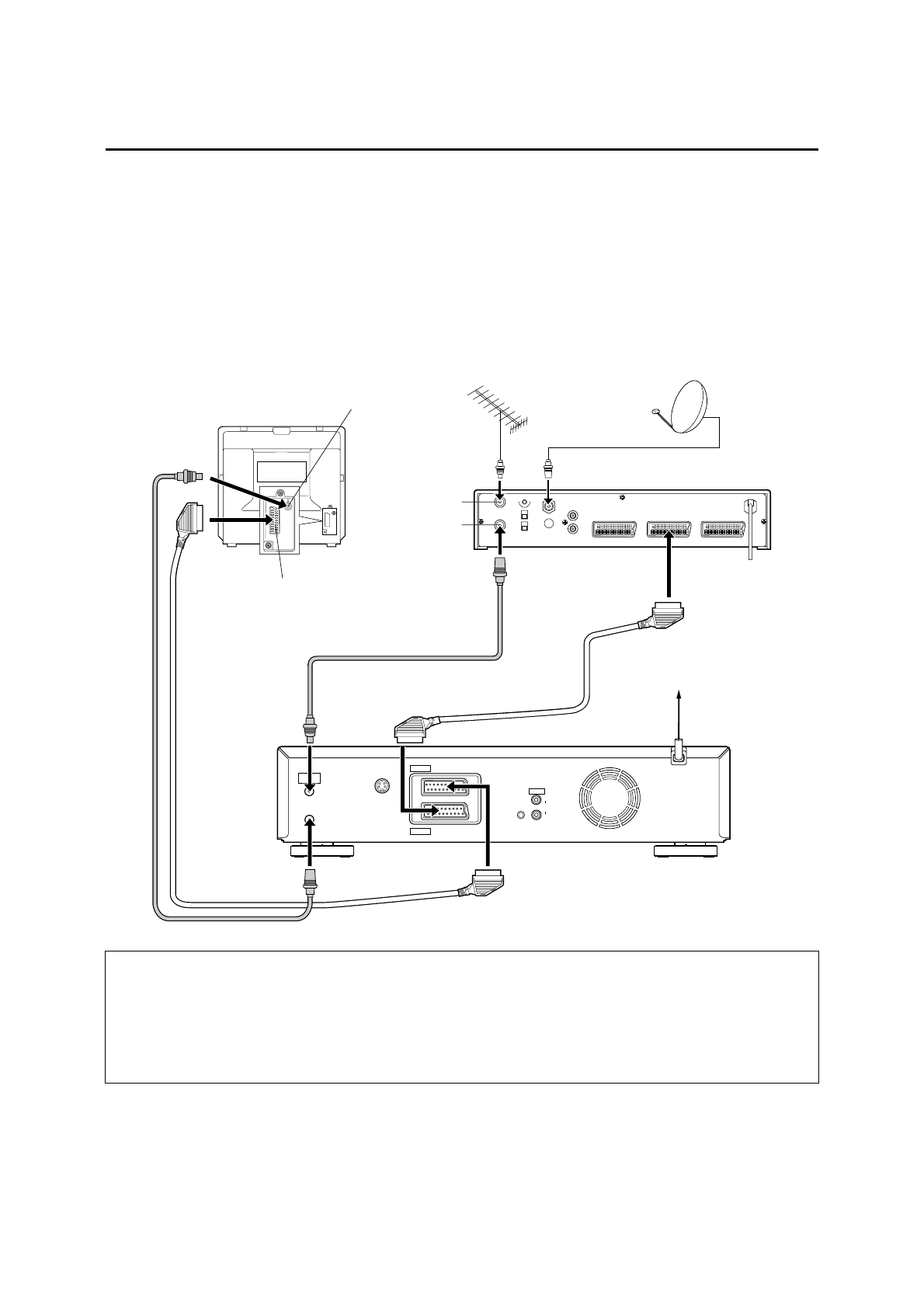

Connecting To A Satellite Receiver

Connect the satellite receiver to the AV2 (L-2) IN/
DECODER connector, then connect the AV1 (L-1) IN/
OUT connector to the TV’s connector.

NOTES:

●

Set “L-2 SELECT” to “A/V” (

墌

pg. 53).

●

To record a programme via the satellite receiver, select L-2
mode by pressing

AUX

 (

number key

 “

0

”) and/or

PR

 so that

“L-2” appears on the front display panel.

●

For details, refer to the instruction manual of the satellite
receiver.

IMPORTANT

When you set “L-2 SELECT” to “SAT” (

墌

pg. 53), it is possible to view a satellite broadcast with the TV set to its AV mode even if

the recorder is in timer mode, in stop mode, in recording mode or turned off. When the recorder is in Stop mode or recording,
press

TV/VCR

 on the remote control to turn off the VCR indicator on the front display panel.

●

Set “L-1 OUTPUT” to “VIDEO” and set the satellite receiver’s output and the TV’s input to the composite mode.

●

When the recorder is turned off, only a composite signal is output from the recorder to TV.

●

If you turn on the recorder when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the
satellite receiver, or set the TV to its TV mode, or press

TV/VCR

 on the remote control to set the recorder to the video mode.

S

OUT
SORTIE

ANTENNA
ANTENNE

IN

ENTREE

OUT

SORTIE

AUDIO

L

R

SAT CONTROL

CONTROLEUR SAT

OUT
SORTIE

AV2 (L-2)

IN/DECODER
ENTREE/DECODEUR

AV1 (L-1)

IN/OUT
ENTREE/SORTIE

DECODER

VCR

TV

Outdoor unit

Satellite cable

Satellite receiver

Aerial

TV aerial

cable

21-pin SCART connector

Back of TV

ANTENNA IN

ANTENNA OUT

Aerial
connector

Mains outlet

Back of recorder
