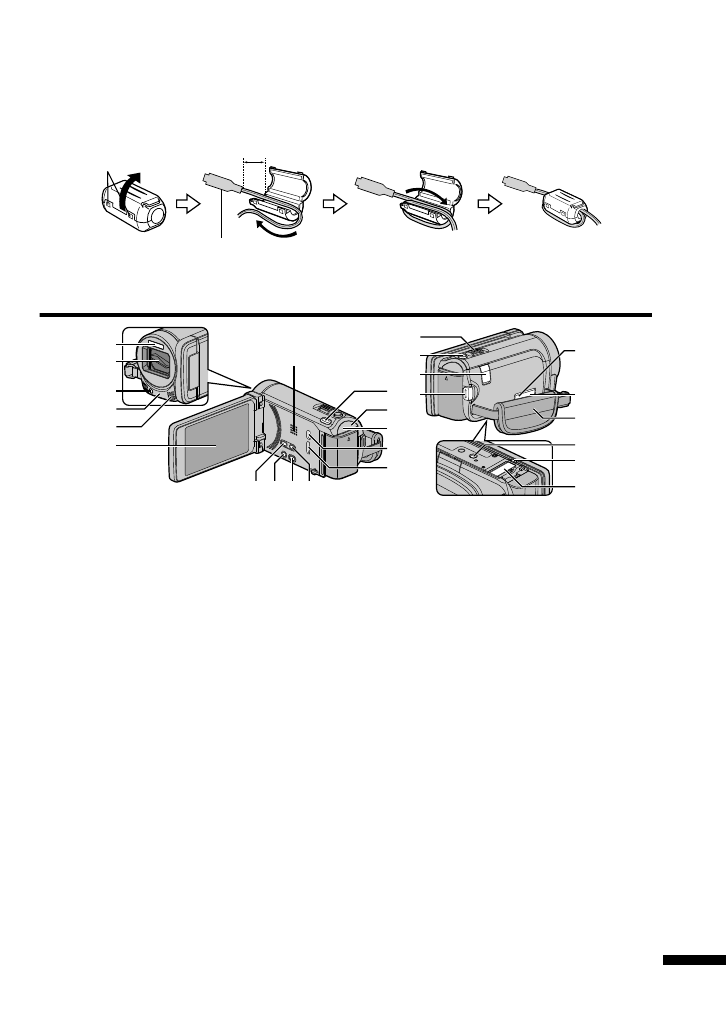

Attaching the Core Filter

Attach the core filter to the power cord of the AC adapter, AV Cable and optional Component Cable as

shown in the illustration.

The core filter reduces interference when this unit is connected to other devices.

.

To be connected to this unit

Release the
stopper.

Wind once

3 cm

Names of Parts and Functions

2

4
5

1

3

6

c

e

f

d

a
b

9

8

0

m

p

n

l

k

o

h

j

g

i

7

A

Flash

B

Lens/Lens Cover

C

Light

D

Remote Sensor

E

Stereo Microphone

F

3D LCD Monitor

Turns the power on/off by opening and

closing.

G

Speaker

H

3D Button (p. 18)

I

POWER/CHARGE (Power/Charge)

Lamp (p. 10)

J

ACCESS (Access) Lamp

Lights up/blinks during recording or

playback.

K

USB Connector

L

HDMI Mini Connector (p. 20)

M

USER (User) Button

Activates preset functions.

N

A

/

B

 (Video/Still Image) Button

Switches between video and still image

modes.

O

M

 (Power/Information) Button

Recording : Displays the remaining

time (for video only) and

battery power.

Playback : Displays file information

such as recording date.

Press and hold to turn the power on/off

while the LCD monitor is opened.

P

i.AUTO (Intelligent Auto) Button

(p. 15)

Q

Zoom/Volume Lever (p. 15, 18)

R

SNAPSHOT (Still Image Recording)

Button (p. 17)

S

DC Connector (p. 10)

T

START/STOP (Video Recording)

Button (p. 15)

U

COMPONENT (Component) Connector

(p. 20)

V

AV Connector (p. 21, 26)

W

Grip Belt (p. 11)

X

Tripod Mounting Hole

Y

Battery Release Lever (p. 10)

Z

SD Card Slot (p. 11)

For more information, refer to the Detailed User Guide

http://manual.jvc.co.jp/index.html/
