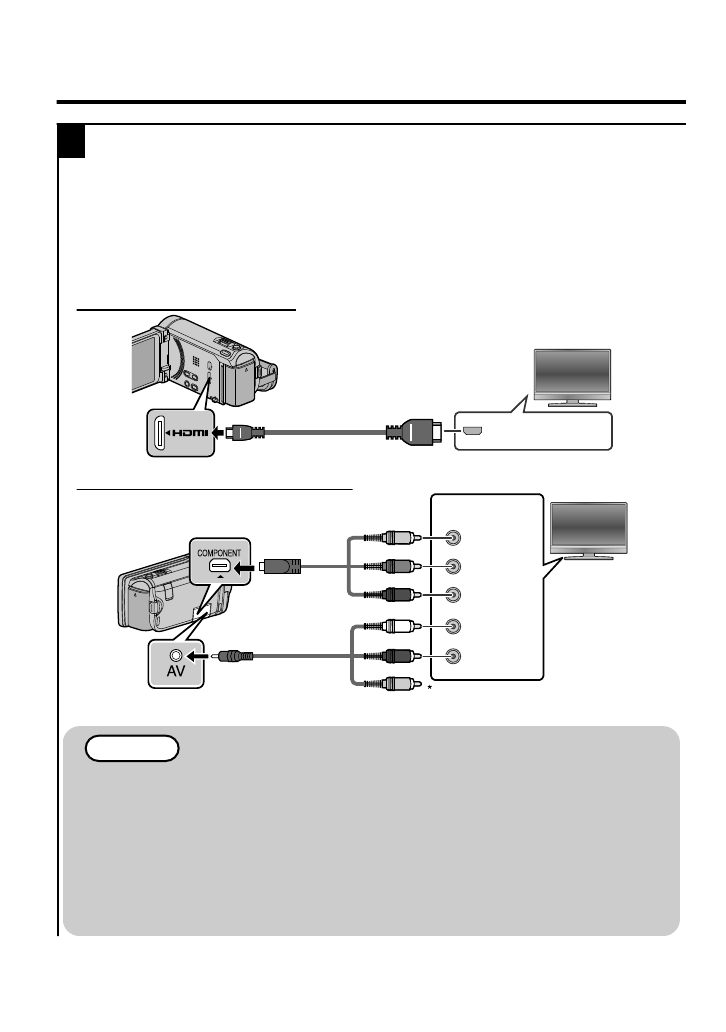

Playing Back on TV

1

Connect to a TV.

* Refer also to the instruction manual of the TV in use.

0

Turn off the camcorder by pressing the

M

 button for about 2 seconds.

o

Playing back 3D images on a 3D compatible TV

If you are using a 3D compatible TV, you can play back 3D images by connecting to the HDMI mini connector.

o

Playing back in HD quality

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI mini connector.

Connecting to the HDMI connector

.

HDMI Connector Input

TV

HDMI Mini Cable
(Provided)

To HDMI Mini Connector

Connecting to the COMPONENT connector

.

CB/PB

CR/PR

Y

Do not connect the yellow plug
when using component cable.

TV

Audio Input
(R)

Audio Input
(L)

Component
Video Input

Yellow

Red

White

Red

Blue

Green

To AV Connector

AV Cable
(Provided)

Component
Cable (Optional)

To COMPONENT Connector

NOTE

0

For questions about the TV or method of connection, contact your TV’s manufacturer.

0

Use a High Speed HDMI mini cable as the HDMI mini cable when not using the provided one.

0

When playing back in HD quality, set “COMPONENT OUTPUT” in the “COMMON” menu to “1080i”. The

video is output in standard quality if the setting remains at “480i”.

0

When 3D images are played back on a 3D compatible TV, the display on the LCD monitor is in 2D.

0

When this unit is connected to a 3D compatible TV via an HDMI cable and set to the recording mode

while in 3D mode, 3D images will appear on the TV.

0

If you experience fatigue or discomfort while viewing 3D images, it is recommended to play back in

2D mode.

20

For more information, refer to the Detailed User Guide
