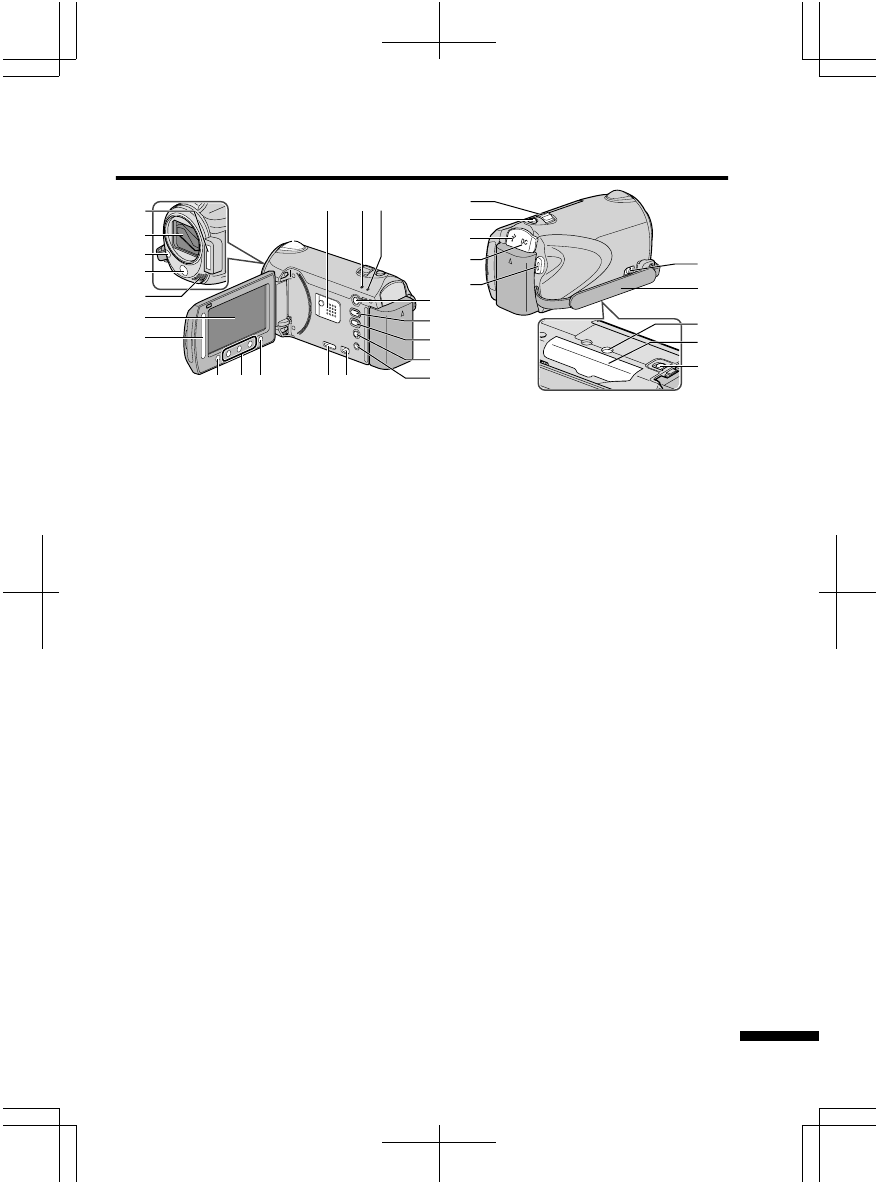

Names of Parts and Functions

.

AV

2
3
4
5

1

6
7

8 90

s

r

t

ji

a bc

f

e

d

h

g

m

o

n

l

k

q

p

A

Flash

B

Lens/Electronic Lens Cover

C

Light

D

Remote Sensor

E

Stereo Microphone

F

LCD Monitor
Turns the power on/off by opening and
closing.

G

Slider
Selects an image or item.

H

OK Button
Confirms the selected image or item.

I

Operation Buttons
Functions differently according to the
operation.

J

Menu (menu) Button ( P.21)

K

Speaker

L

ACCESS (Access) Lamp
Lights up/blinks during recording or
playback.

M

POWER/CHARGE (Power/Charge)
Lamp ( P.6)

N

+

 (Play) Button

Switches between recording and
playback modes.

O

/

 (Video/Still Image) Button

Switches between video and still
image modes.

P

UPLOAD/EXPORT
(Upload/Export to iTunes) Button
Recording

：

Takes videos in YouTube
or iTunes format.

Playback

：

Changes the video to
YouTube or iTunes format.

Q

,

 (Power/Information) Button

Recording

：

Displays the remaining
time as well as the
battery power during
continuous recording.

Playback

：

Displays file information.

Press and hold to turn the power on/off
while the LCD monitor is opened.

R

AV Terminal ( P.15, 20)

S

COMPONENT (Component)
Connector ( P.14)

T

HDMI Mini Connector ( P.14)

U

Zoom/Volume Lever ( P.9, 13)

V

SNAPSHOT (Still Image Recording)
Button ( P.10)

W

USB Terminal ( P.17)

X

DC Terminal ( P.6)

Y

START/STOP (Video Recording)
Button ( P.9)

Z

Grip Belt Release Lever

a

Grip Belt ( P.6)

b

Tripod Mounting Hole

c

SD Card Slot ( P.11)

d

Battery Release Lever ( P.6)

For more information, refer to the Detailed User Guide
