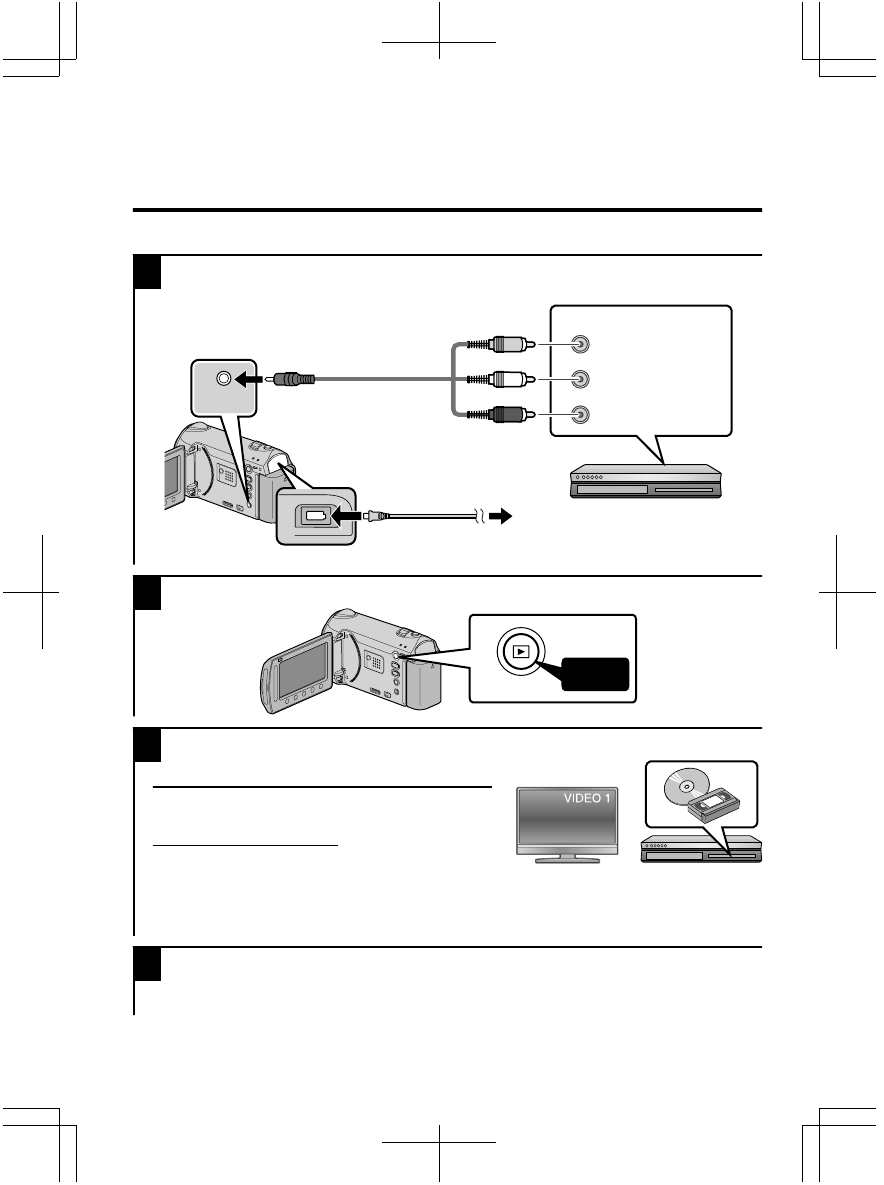

Dubbing Files by Connecting to a DVD
Recorder or VCR

You can dub videos in standard quality by connecting to a DVD recorder or VCR.

Refer also to the instruction manual of the TV, DVD recorder, VCR, etc.

1

Connect to a VCR/DVD recorder.

●

Press the Power button (

,

) for more than 2 seconds to turn off this unit.

.

AV Cable
(Provided)

White

Red

Yellow

To DC Terminal

VCR/DVD Recorder

To AV Terminal

Video Input

Video Input

Audio Input (L)

Audio Input (R)

AV

AV

AC Adapter
To AC Outlet
(110 V to 240 V)

●

This unit powers on automatically when the AC adapter is connected.

2

Select the playback mode.

.

AV

Press

3

Prepare to record.

Preparation on TV and VCR/DVD recorder

●

Switch to a compatible external input.

●

Insert compatible blank DVD or VHS to dub.

Preparation on this unit

●

Set “VIDEO OUTPUT” in the connection settings

menu to the aspect ratio (“4:3” or “16:9”) of the

connecting TV.

●

To include the date during dubbing, set “DISPLAY ON TV” in the connection settings

menu to “ON”. Alternatively, set ON-SCREEN DISPLAY in the playback menu to

DISPLAY DATE ONLY.

4

Start recording.

●

Start playback on this unit ( P.13) and press the record button on the recorder.

●

After playback is complete, stop the recording.
