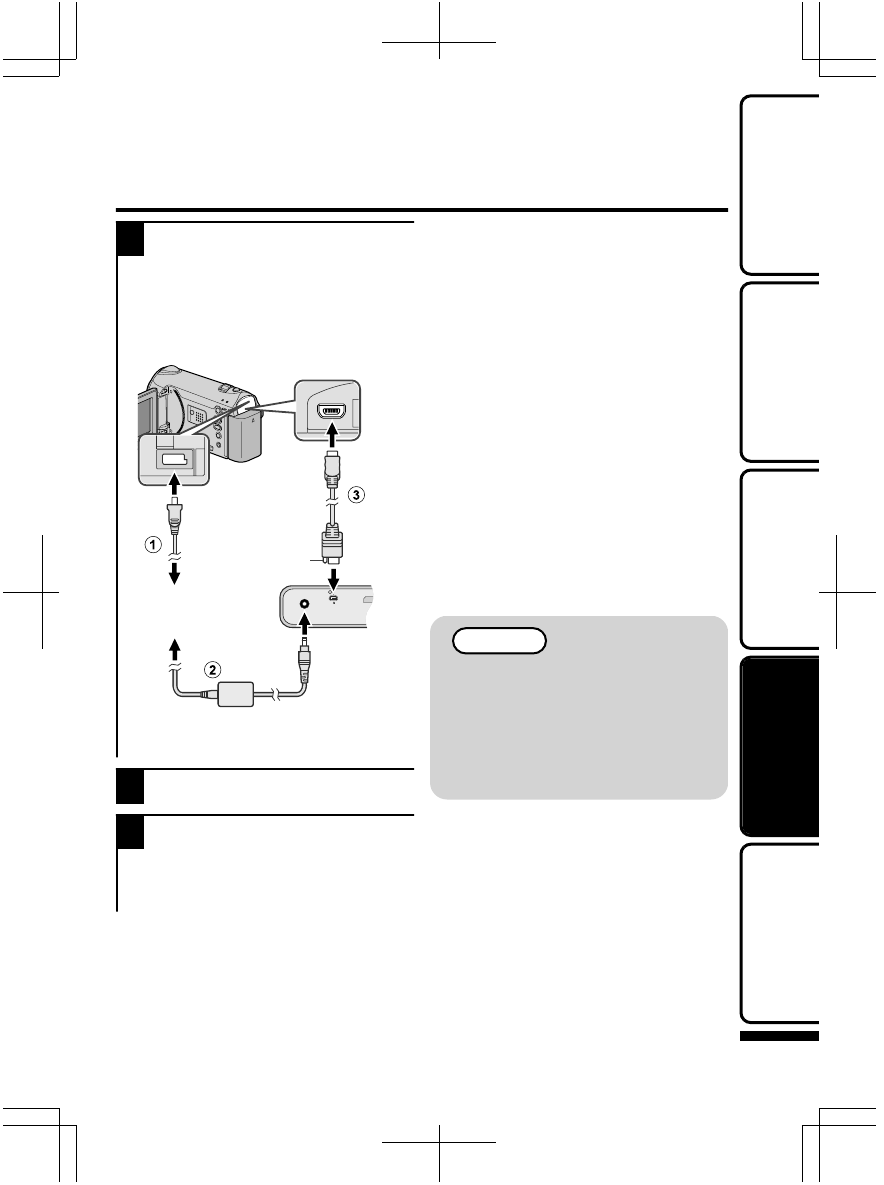

Creating Discs with a DVD Writer or
External Blu-ray Drive

1

Close the LCD monitor and connect.

①

Connect the AC adapter of this

unit.

②

Connect the AC adapter of the

DVD writer.

③

Connect the USB cable provided

with the DVD writer.

.

AV

AC Adapter
To AC Outlet
(110 V to 240 V)

To DC Terminal

To USB Terminal

Protrusion

DVD Writer
(When using
CU-VD50)

* Refer also to the instruction manual of

the DVD writer or external Blu-ray

drive.

2

Turn on the DVD writer or external

Blu-ray drive and insert a new disc.

3

Open the LCD monitor.

●

This unit turns on and the BACK-UP

menu appears.

●

While the USB cable is connected, the

BACK-UP menu is displayed.

■

To play back the created disc

Play back on an AVCHD compatible
device.

■

Compatible DVD writer

●

CU-VD50

●

CU-VD3

■

Compatible External Blu-ray
Drive

●

LG: Model No. BE06LU10

When connecting to the external Blu-
ray drive, use a USB cable with Mini-A
(Male) – B (Male) connectors.
To use the USB cable provided with
the external Blu-ray drive, purchase the
USB extension cable.

●

Mini-A (Male) – A (Female)
(Part number: QAM0852-001)

* Consult your nearest JVC service

dealer.

NOTE

●

The recordable time on the disc
varies according to the way of
recording.

●

When connected to this camera,
all buttons on the DVD writer
(CU-VD50), other than the
power and eject buttons, will not
work.

For more information, refer to the Detailed User Guide

http://manual.jvc.co.jp/index.html/
