Playing Back on TV

1

Connect to a TV.

* Refer also to the instruction manual of the TV.

●

Press the Power button (

,

) for more than 2 seconds to turn off this unit.

■

Playing back in HD quality

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI
terminal.

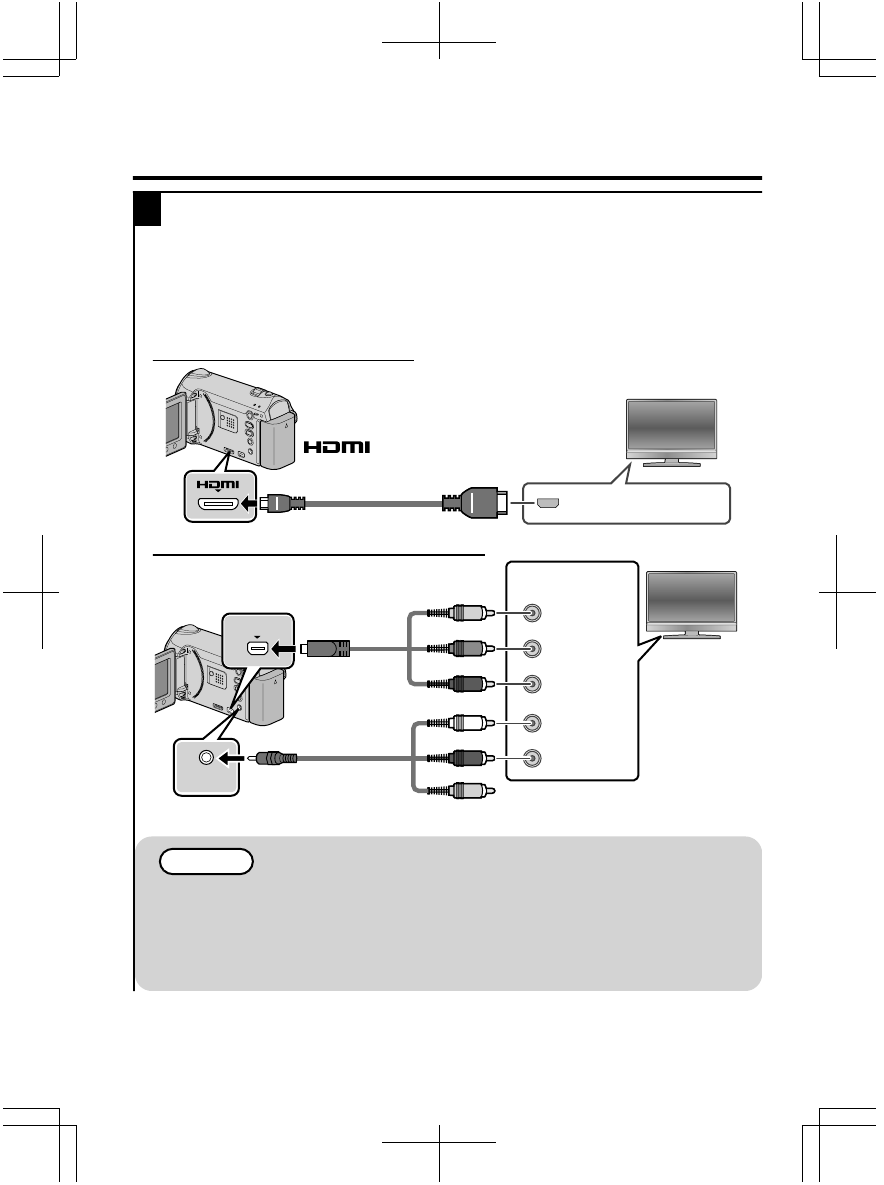

Connecting to the HDMI terminal

.

AV

To HDMI
(HDMI mini)Terminal

HDMI Terminal Input

TV

Connecting to the COMPONENT terminal

.

AV

COMPONENT

AV

Y

C

B

/P

B

C

R

/P

R

Green

Blue

Red

TV

* Do not connect the yellow plug

AV Cable
(Provided)

Component
Cable
(Provided)

Audio
Input (R)

Audio
Input (L)

Component
Video Input

To AV Terminal

To COMPONENT
Terminal

White

Red

when using component cable.

NOTE

●

Please contact the TV manufacturer on questions or problems with setting the
TV to the correct mode.

●

Use a High speed HDMI cable (category 2 cable) as the HDMI mini cable.

●

When playing back in HD quality, set “COMPONENT OUTPUT” in the
connection settings menu to “1080i”. The video is output in standard quality if
the setting remains at “480i”.

14

For more information, refer to the Detailed User Guide
