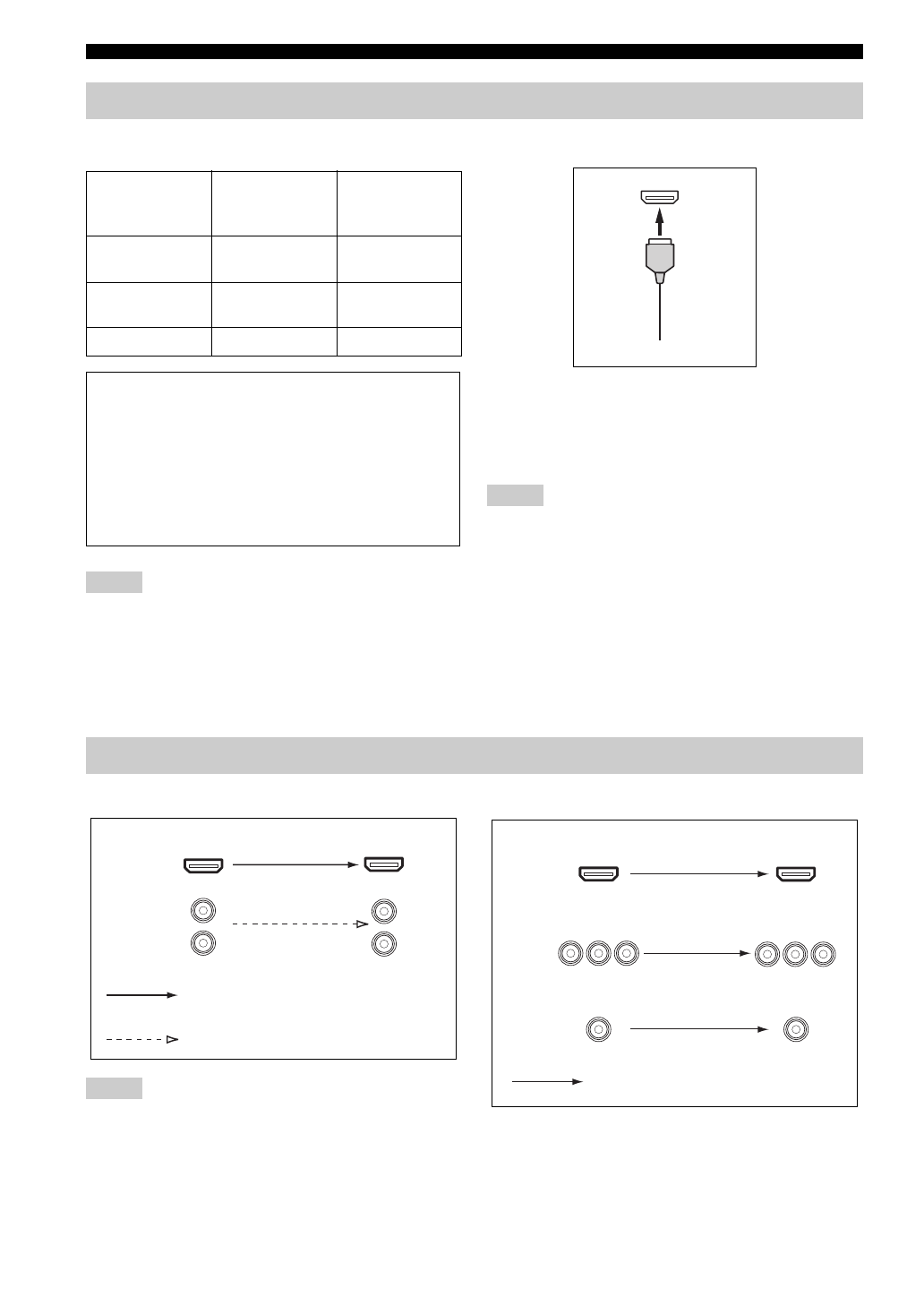

Connections

■

HDMI compatibility with this unit

• When CPPM copy-protected DVD audio is played back, video

and audio signals may not be output depending on the type of
the DVD player.

• This unit is not compatible with HDCP-incompatible HDMI or

DVI components.

• You can check the potential problem about the HDMI

connection (see page 36).

■

HDMI jack and cable plug

y

• We recommend using an HDMI cable shorter than 5 meters (16

feet) with the HDMI logo printed on it.

• Use a conversion cable (HDMI jack

↔

 DVI-D jack) to connect

this unit to other DVI components.

• Do not disconnect or connect the cable or turn off the power of

the HDMI components connected to the HDMI OUT jack of
this unit while data is being transferred. Doing so may disrupt
playback or cause noise.

• Audio signals input at input jacks other than the HDMI IN DVD

or HDMI IN DTV/CBL jack of this unit cannot be digitally
output at the HDMI OUT jack.

• If you turn off the power of the video monitor connected to the

HDMI OUT jack via a DVI connection, this unit may fail to
establish the connection to the component.

■

Audio signal flow

• 2-channel as well as multi-channel PCM, Dolby Digital and

DTS signals input at the HDMI IN DVD or HDMI IN DTV/
CBL jack can be output at the HDMI OUT jack only when
“SUPPORT AUDIO” is set to “Other” (see page 61).

• Audio signals input at the HDMI IN jacks are not output at the

AUDIO output jacks.

■

Video signal flow

Information on HDMI™

Audio signal

types

Audio signal

formats

Compatible

HDMI

components

2ch Linear PCM

2ch, 32-192 kHz,

16/20/24 bit

CD, DVD-Video,

DVD-Audio, etc.

Multi-ch Linear

PCM

8ch, 32-192 kHz,

16/20/24 bit

DVD-Audio, etc.

Bitstream

Dolby Digital, DTS

DVD-Video, etc.

This unit’s HDMI interface is based on the following
standards:
•

HDMI Version 1.2a (High-Definition Multimedia
Interface Specification Version 1.2a) licensed by
HDMI Licensing, LLC.

•

HDCP (High-bandwidth Digital Content Protection
System) licensed by Digital Content Protection,
LLC.
