13

 En

Connections

English

PRE

P

ARA

T

ION

Connect one of the type of the audio jack(s) and/or video jack(s) that your input components are equipped with.

■

Audio jacks

This unit has three types of audio jacks. Connection
depends on the availability of audio jacks on your other
components.

AUDIO jacks

For conventional analog audio signals transmitted via left
and right analog audio cables. Connect red plugs to the
right jacks and white plugs to the left jacks.

DIGITAL AUDIO COAXIAL jack

For digital audio signals transmitted via a coaxial digital
audio cable.

DIGITAL AUDIO OPTICAL jacks

For digital audio signals transmitted via optical digital
audio cables.

• You can use the digital jacks to input PCM, Dolby Digital and

DTS bitstreams. Optical input jacks are compatible with digital
signals with up to 96 kHz of sampling frequency.

• This unit handles digital and analog signals independently. Thus

audio signals input at the digital jacks are not output at the
analog AUDIO OUT (REC) jacks.

■

Video jacks

This unit has two types of video jacks. Connection
depends on the availability of input jacks on your video
monitor.

VIDEO jacks

For conventional composite video signals transmitted via
composite video cables.

COMPONENT VIDEO jacks

For component signals, separated into the luminance (Y)
and chrominance (P

B

, P

R

) video signals transmitted on

separate wires of component video cables.

The OSD signal is not output at the DVR OUT (REC) jacks.

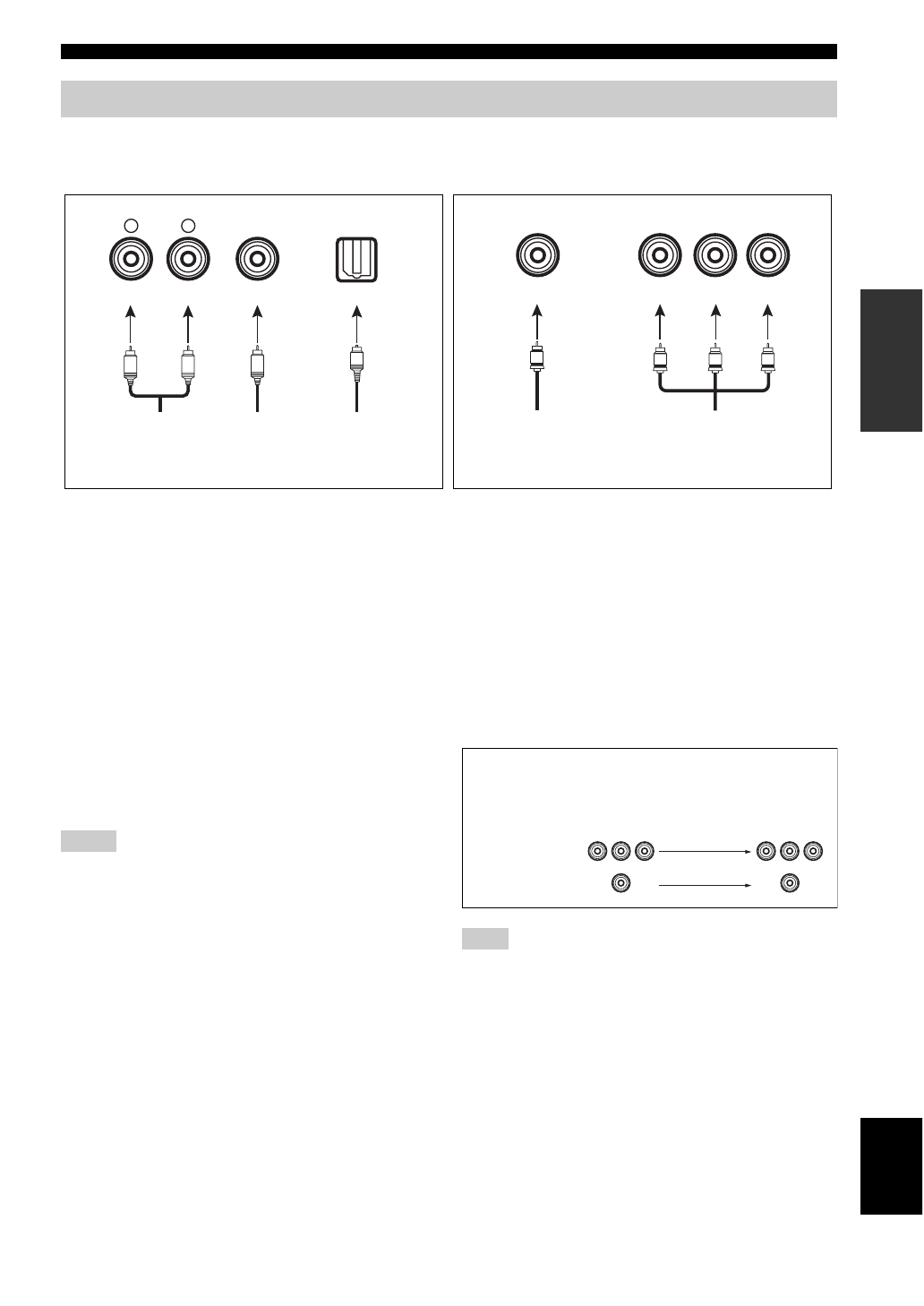

Information on jacks and cable plugs

 VIDEO

COMPONENT VIDEO

 P

R

 P

B

Y

P

B

P

R

Y

V

 COAXIAL

 DIGITAL AUDIO

AUDIO

 OPTICAL

 DIGITAL AUDIO

R

L

C

O

R

L

Left and right

analog audio

cable plugs

Optical

digital

audio cable

plug

Coaxial

digital audio

cable plug

Composite

video cable

plug

Component

video cable

plugs

Audio jacks and cable plugs

Video jacks and cable plugs

(Red)

(White)

(Orange)

(Yellow)

(Red)

(Blue)

(Green)

Notes

Note

P

R

P

B

Y

P

R

P

B

Y

Video signal flow for MONITOR OUT

Output

(MONITOR OUT)

Input

COMPONENT
VIDEO

VIDEO
