Connections

English

PRE

P

ARA

T

ION

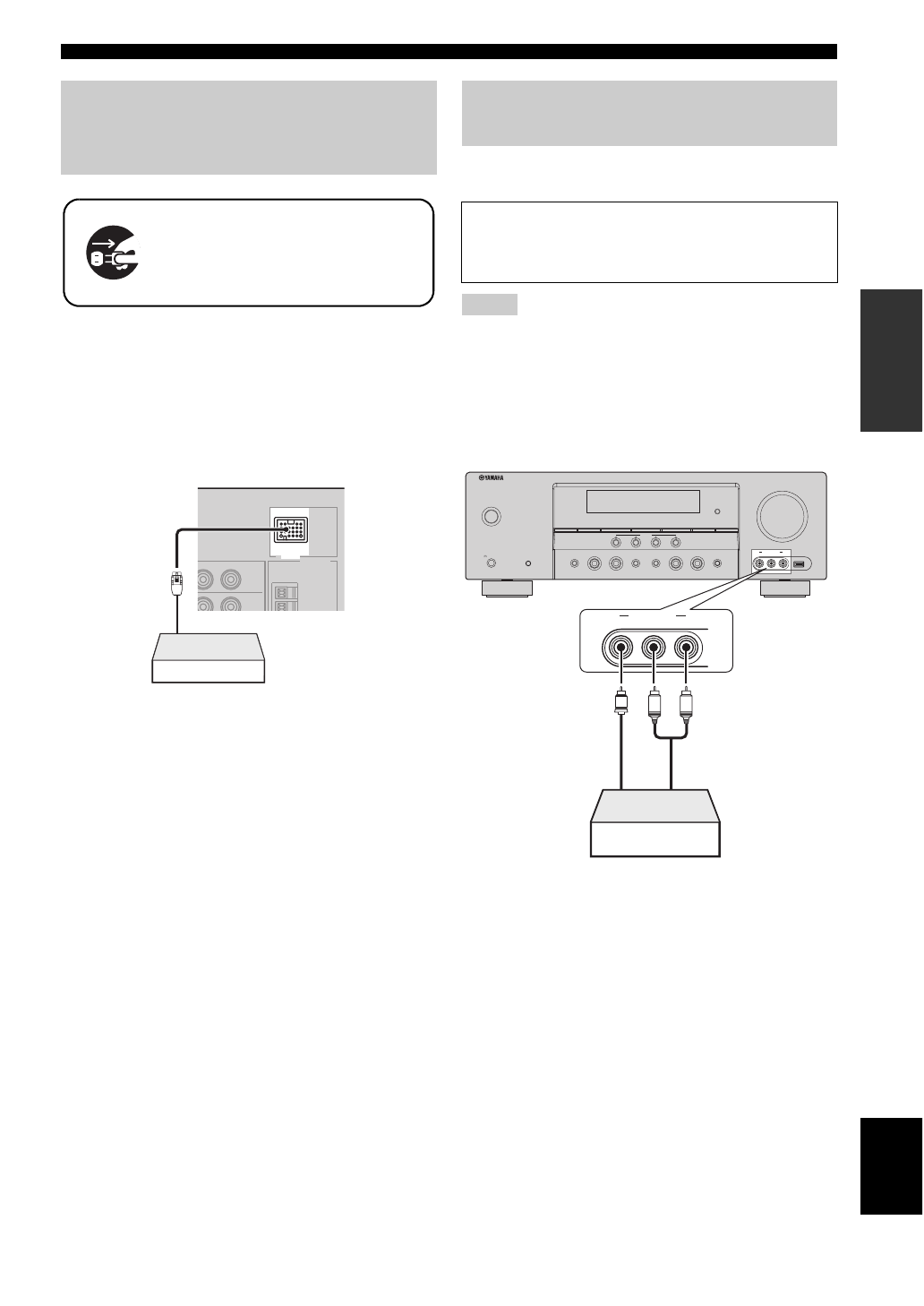

This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-10, sold separately) or Bluetooth
adapter (such as YBA-10, sold separately). Connect a
Yamaha iPod universal dock or Bluetooth adapter to the
DOCK terminal on the rear panel of this unit using its
dedicated cable.

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.

• To reproduce the source signals input at these jacks, select

“V-AUX” as the input source.

• When audio signals are input at the AUDIO jacks and the

DOCK terminal on the rear panel, the priority order of the input
signal is as follows:
1. DOCK
2. AUDIO

Connecting a Yamaha iPod™
universal dock or Bluetooth™
adapter

Make sure that this unit and other
components are unplugged from the
AC wall outlets.

DTV/CBL

DVR

P

B

Y

AM

GND

ANTENNA

DOCK

DOCK

Yamaha iPod universal dock

or Bluetooth adapter

Using the VIDEO AUX jacks on the
front panel

Caution

Be sure to turn down the volume of this unit and other
components before making connections.

Notes

SPEAKERS

PHONES

SILENT CINEMA

STANDBY/

ON

A/B/OFF

BAND

TUNING  AUTO/MAN'L

OPTIMIZER MIC

AUDIO SELECT

DIRECT

STRAIGHT

EFFECT

TONE CONTROL

l

       INPUT

h

l

   PROGRAM

h

VOLUME

SCENE

1

2

3

4

l

         PRESET/TUNING/CH

h

A/B/C/D/E

EDIT

PRESET/TUNING

MEMORY

VIDEO

L    AUDIO    R

VIDEO AUX

USB

VIDEO

L    AUDIO    R

VIDEO AUX

V

L

R

Game console or

video camera

Video

output

Audio
output
