Both FM and AM indoor antennas are supplied with this
unit. In general, these antennas should provide sufficient
signal strength. Connect each antenna correctly to the
designated terminals.

Notes

•

The AM loop antenna should be placed away from this unit.

•

A properly installed outdoor antenna provides clearer reception than an
indoor one. If you experience poor reception quality, install an outdoor
antenna. Consult the nearest authorized Yamaha dealer or service center
about outdoor antennas.

•

The AM loop antenna should always be connected, even if an outdoor
AM antenna is connected to this unit.

Connecting the wire of the AM loop antenna

Assembling the supplied AM loop antenna

Note

•

The types of the supplied AM loop antenna is different depending on the
models.

Once all connections are complete, plug the power cable
into the AC wall outlet.

Press

A

STANDBY/ON

 (or

c

POWER

) to turn on

this unit.

y

•

When you turn on this unit, there will be a 4 to 5-second delay before this
unit can reproduce sound.

Press

A

STANDBY/ON

 (or

b

STANDBY

) to turn

off this unit.

Note

•

In the standby mode, this unit consumes a small amount of power in
order to receive infrared signals from the remote control.

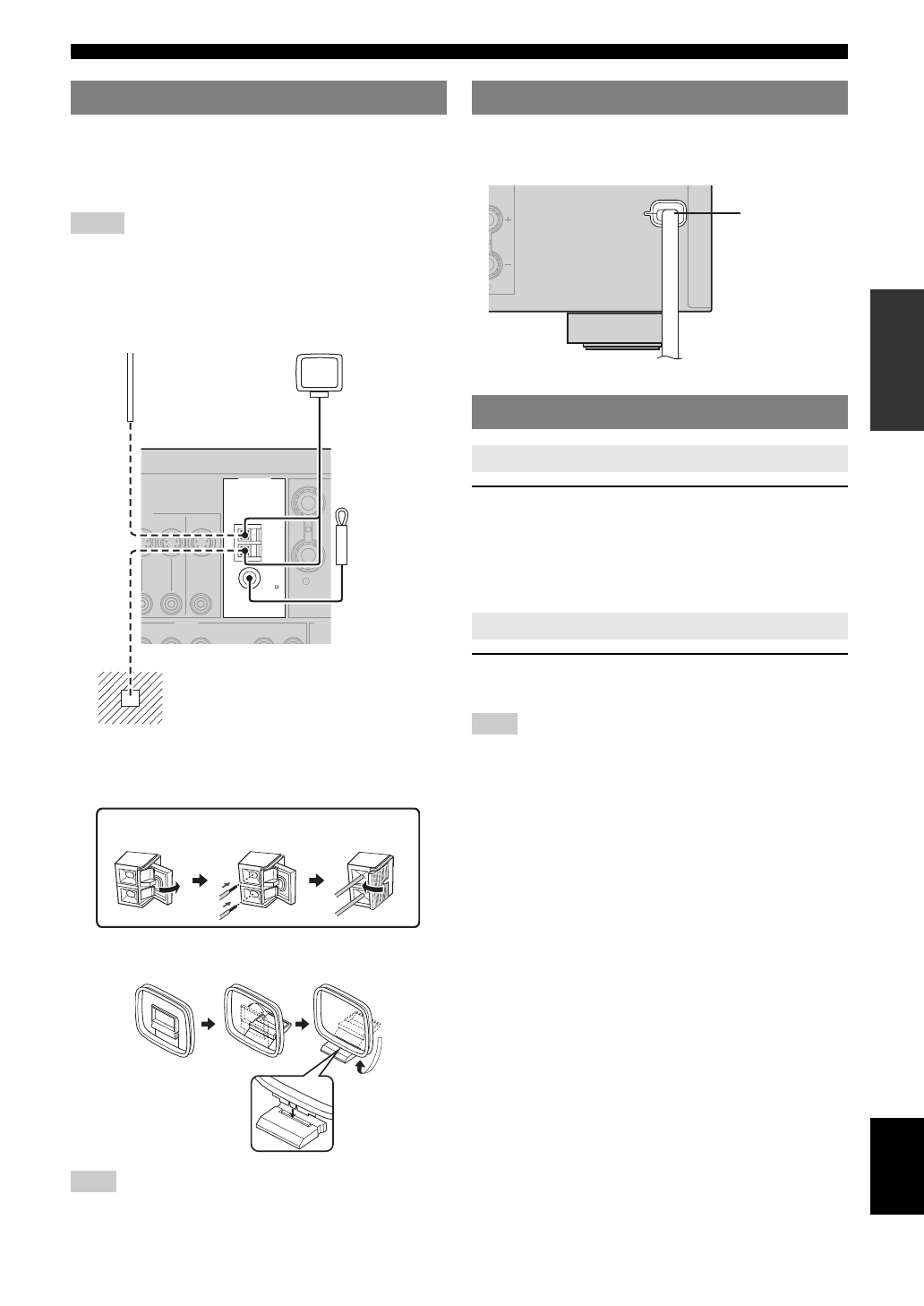

Connecting the FM and AM antennas
