14

 En

Connections

Notes

•

Be sure to make the same type of video connections as those made for your TV if the video conversion is disabled. For example, if you connected your
TV to the VIDEO MONITOR OUT jack of this unit, connect other components to the VIDEO jacks.

•

Check the copyright laws in your country to record from CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.

•

To make a digital connection to a component other than the default one assigned to each DIGITAL INPUT or DIGITAL OUTPUT jack, configure the
“INPUT ASSIGN” setting (see page 34).

•

Only analog audio signals output at AUDIO OUT (REC) jack can be recorded using the recording components. Therefore Digital signals input at the
DIGITAL INPUT jacks or analog signals input at MULTI CH IN jacks can be output at the analog AUDIO OUT (REC) jack for recording.

This unit is equipped with 6 additional input jacks
(FRONT L/R, SURROUND L/R, CENTER and
SUBWOOFER) for discrete multi-channel input from a
multi-format player, external decoder or sound processor.
Connect the output jacks on your multi-format player or
external decoder to the MULTI CH INPUT jacks. Be sure
to match the left and right output jacks to the left and right
input jacks for the front and surround channels.

Notes

•

When you select the component connected to the MULTI CH INPUT
jacks as the input source (see page 19), this unit automatically turns off
the digital sound field processor, and you cannot select sound field
programs.

•

This unit does not redirect signals input at the MULTI CH INPUT jacks
to accommodate for missing speakers. We recommend that you connect a
5.1-channel speaker system before using this feature.

•

The source connected to the MULTI CH INPUT jacks on this unit cannot
be recorded.

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit. To reproduce
the source signals input at these jacks, select “V-AUX” as
the input source.

Note

•

The audio signals input at the PORTABLE mini jack take priority over
the ones input at the AUDIO L/R jacks.

DVD recorder

Video

HDMI out*

HDMI (DVR)*

Video out (composite)

VIDEO (DVR IN)

Audio

Audio out (analog)*

AUDIO (IN (PLAY))*

Audio recording

Audio in (analog)*

AUDIO (OUT (REC))*

Video recording

Video in (composite)*

VIDEO (DVR OUT)*

CD player

Audio

Coaxial out*

OPTICAL (CD)*

Audio out (analog)

AUDIO (CD)

MD or CD recorder

Audio

Audio out (analog)*

AUDIO (IN (PLAY))*

Audio recording

Audio in (analog)*

AUDIO (OUT (REC))*

Component

Signal type

Jacks on component

Jacks on this unit

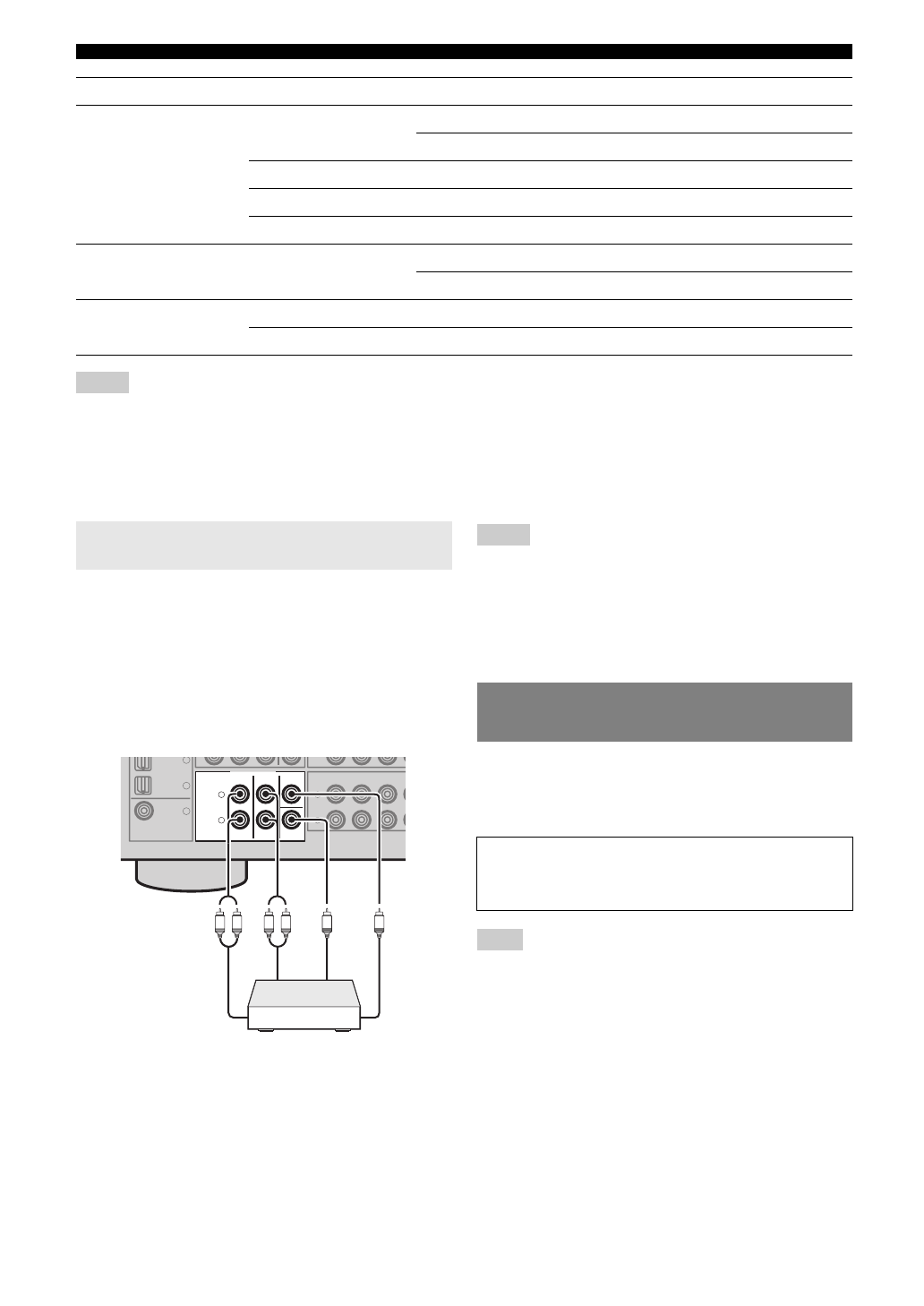

Connecting a multi-format player or an
external decoder

L

R

L

R

MULTI CH INPUT

1

2

3

DVD

COAXIAL

CD

DTV/
CBL

DVD

FRONT

CENTER

SUBWOOFER

SURROUND

DTV/CBL

DVR

IN

L

R

L

R

Fr

on
t ou

t

Su
rr

ou
nd
 ou
t

Su
bw
o

o

fe

r ou
t

Ce
nt

er

 o

u

t

Multi-format player or

external decoder

Using the VIDEO AUX jacks on the
front panel

Caution

Be sure to turn down the volume of this unit and other
components before making connections.
