Connections

* You can select the front speaker set from Front speakers (A) and Front

speakers (B) by pressing

C

SPEAKERS

 repeatedly. See page 19 for

details.

■

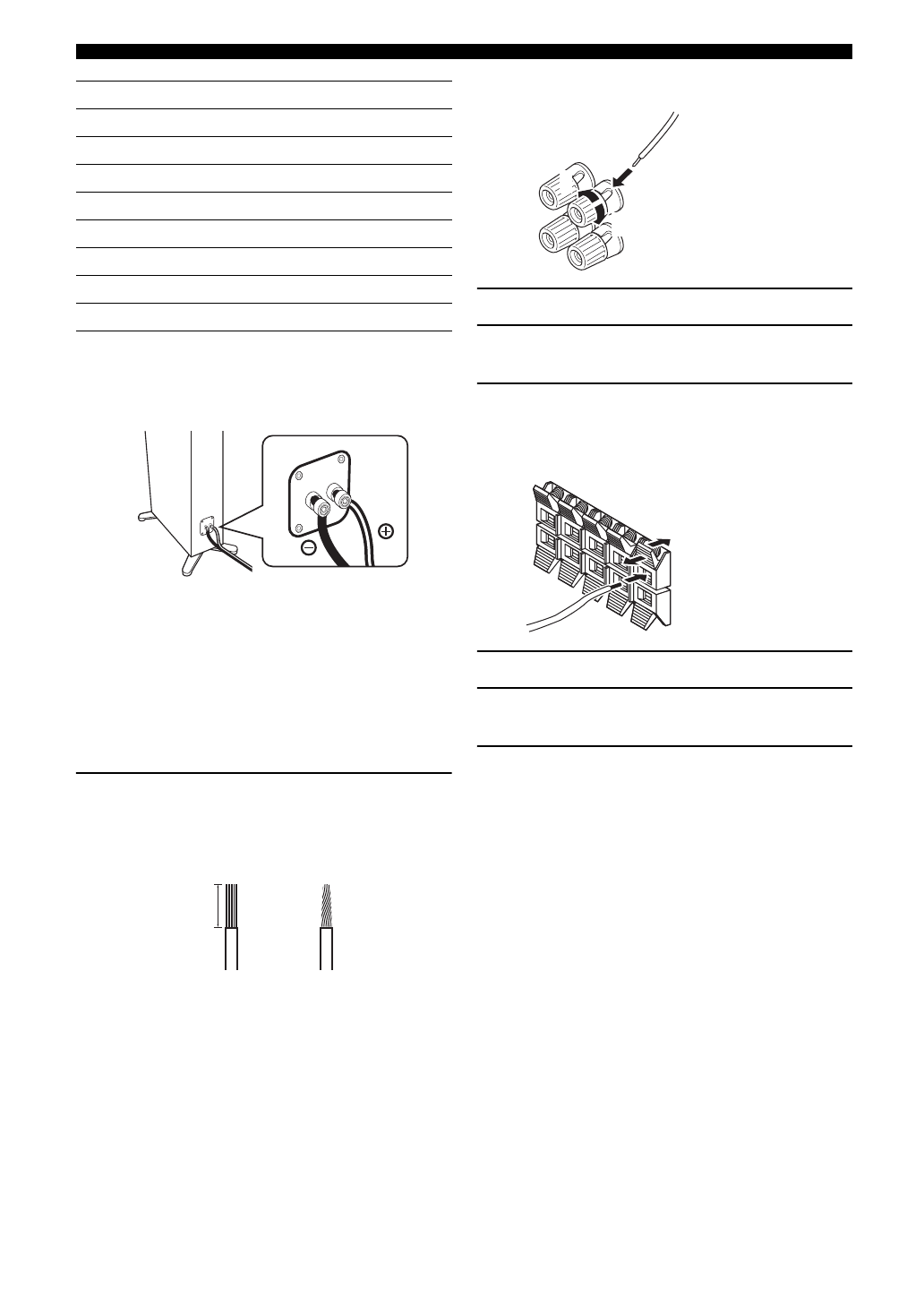

Connect speaker cables to each speaker

Cables are colored or shaped differently, perhaps with a
stripe, groove or ridge. Connect the striped (grooved, etc.)
cable to the “+” (red) terminals of your speaker. Connect
the plain cable to the “–” (black) terminals.

■

Before connecting to the SPEAKERS
terminal

A speaker cord is actually a pair of insulated cables
running side by side.

Remove approximately 10 mm (3/8”) of insulation
from the end of each speaker cable and then
twist the bare wires of the cable together to
prevent short circuits.

■

Connecting to the FRONT A terminals

1

Loosen the knob.

2

Insert the bare end of the speaker wire into
the slit on the terminal.

3

Tighten the knob to secure the wire.

■

Connecting to the FRONT B, CENTER, and
SURROUND terminals

1

Press down the tab.

2

Insert the bare end of the speaker wire into
the hole on the terminal.

3

Release the tab to secure the wire.

Speakers

Jacks on this unit

a

Front speaker (A) Right*

FRONT A (R)

b

Front speaker (A) Left*

FRONT A (L)

c

Surround speaker Right

SURROUND (R)

d

Surround speaker Left

SURROUND (L)

e

Center speaker

CENTER

f

Front speaker (B) Right*

FRONT B (R)

g

Front speaker (B) Left*

FRONT B (L)

h

Subwoofer

SUBWOOFER

10 mm (3/8”)

1

2

3

Red: positive (+)

Black: negative (–)

Red: positive (+)

Black: negative (–)
