MAINTENANCE

WARTUNG

ТЕХНИЧЕСКОЕ ОБСЛУЖИВАНИЕ

Changing the Light Bulb

CAUTION

•

Turn off the main power switch and unplug the machine
before changing the light bulb. If the main power switch
is on when the light bulb is changed, an electric shock
may result. If the machine is on and Start/Stop button is
pressed or foot controller is stepped on, injuries may
result.

•

To avoid burns, give the light bulb time to cool before
changing it.

1. Remove the power supply plug from the outlet.

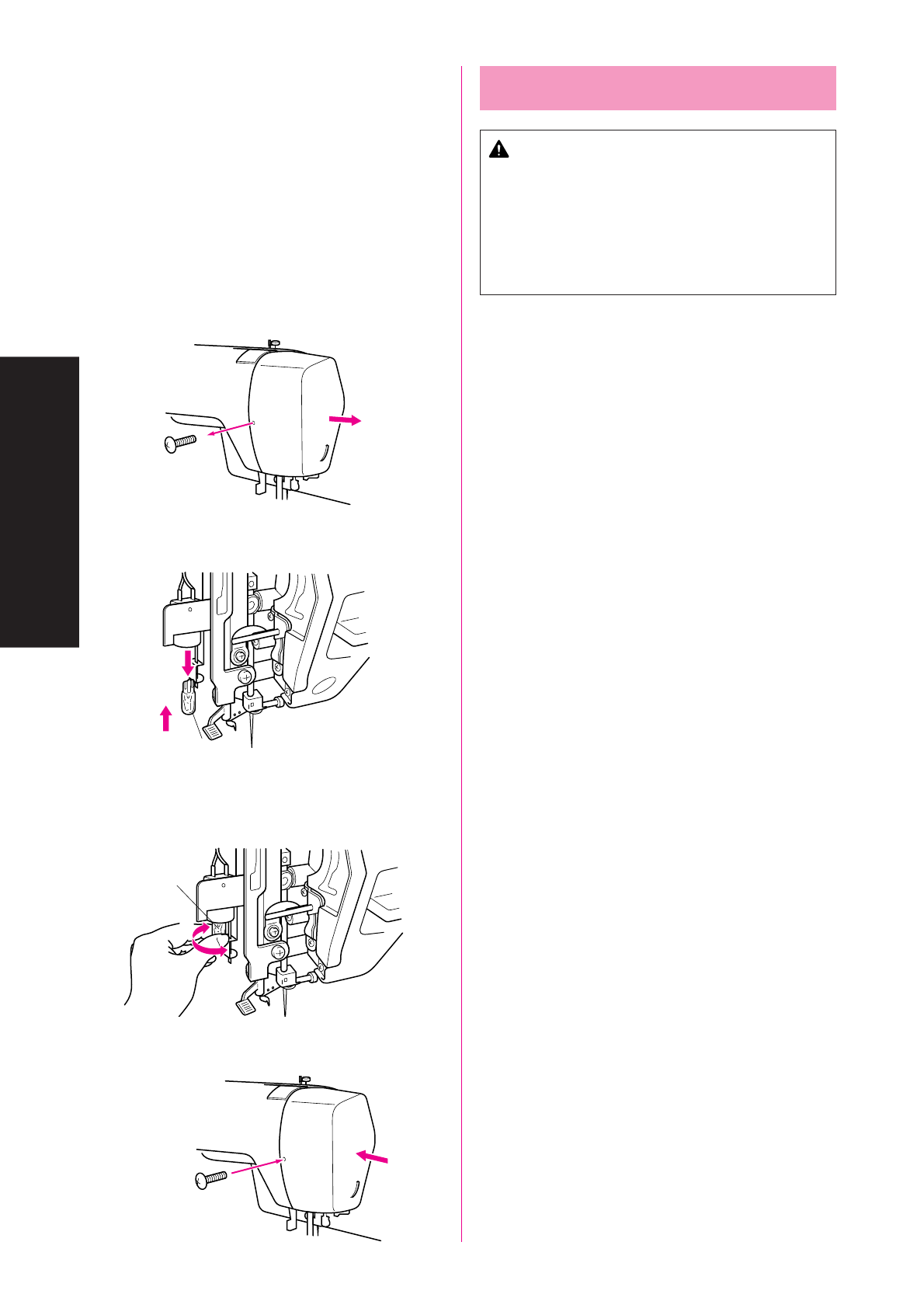

2. Loosen the screw on the reverse side of sewing head as shown

in fig. A.

3. Remove the light cover from the machine as illustrated in fig. A.

(Model STAR 240E, STAR 230E)
4. Replace the sewing light bulb. (See fig. B)

1

Bulb

1

Pull out

2

Push in

(Model PS-57, PS-55, STAR-50, RSR-55, XRX-55, PS-53)
4. Replace the sewing light bulb. (See fig. B)

1

Bulb

1

Loosen

2

Tighten

5. Reattach the light cover and fasten the screw as shown in fig.

C.

B

A

1

1

2

1

1

2

B

C

(Model STAR 240E, STAR 230E)

(Model PS-57, PS-55, STAR-50, RSR-55, XRX-55, PS-53)
