CP1117 Series

Air Drill

Original Instructions

Copyright 2011, Chicago Pneumatic Tool Co. LLC

All  rights  reserved.  Any  unauthorized  use  or  copying  of  the

contents or part thereof is prohibited. This applies in particular to

trademarks, model denominations, part numbers and drawings.

Use only authorized parts. Any damage or malfunction caused

by the use of unauthorized parts is not covered by Warranty or

Product Liability.

Noise & Vibration Declaration

Sound pressure level 83 dB(A), uncertainty 3 dB(A),

in accordance with EN ISO 15744. For sound power,

add 11 dB(A).

Vibration value a*

m/s²

Uncertainty k*

m/s²

CP1117P60

<2,5

-

CP1117P32

<2,5

-

CP1117P26

3,50

1,75

CP1117P09

3,68

2,71

CP1117P05

2,7

1,17

re. ISO 28927-5

Declaration of noise and vibration emission

All values are current as of the date of this publication. For the

latest information please visit cp.com.

These declared values were obtained by laboratory type

testing in accordance with the stated standards and are

suitable for comparison with the declared values of other

tools tested in accordance with the same standards. These

declared values are not adequate for use in risk assessments

and values measured in individual work places may be higher.

The actual exposure values and risk of harm experienced by

an individual user are unique and depend upon the way the

user works, the workpiece and the workstation design, as well

upon the exposure time and the physical condition of the user.

We, Chicago Pneumatic, cannot be held liable for the

consequences of using the declared values, instead of

values reflecting the actual exposure, in an individual risk

assessment in a work place situation over which we have no

control.

This tool may cause hand-arm vibration syndrome if its

use is not adequately managed. An EU guide to managing

hand-arm vibration can be found at www.pneurop.eu/uploads/

documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to

detect early symptoms which may relate to noise or vibration

exposure, so that management procedures can be modified to

help prevent future impairment.

MANUFACTURER’S LIMITED WARRANTY

Limited Warranty: The “Products” of the Chicago Pneumatic Tool Co. LLC

(“CP”) are warranted to be free from defects in material and workmanship

for  one  year  from  the  date  of  purchase.  This  Warranty  applies  only  to

Products purchased new from CP or its authorized dealers. Of course, this

Warranty does not apply to products which have been abused, misused,

modified,  or  repaired  by  someone  other  than  CP  or  its  Authorized

Service Representatives. If a CP Product proves defective in material or

workmanship within one year after purchase, return it to any CP Factory

Service Center or Authorized Service Center for CP tools, transportation

prepaid,  enclosing  your  name  and  address,  adequate  proof  of  date  of

purchase, and a short description of the defect. CP will, at its option, repair

or replace defective Products free of charge. Repairs or replacements are

warranted as described above for the remainder of the original warranty

period. CP’s sole liability and your exclusive remedy under this Warranty

is limited to repair or replacement of the defective Product.

(There Are No

Other Warranties Expressed Or Implied And CP Shall Not Be Liable

For  Incidental,  Consequential,  Or  Special  Damages,  Or  Any  Other

Damages, Costs Or Expenses Excepting Only The Cost Or Expense

Of Repair Or Replacement As Described Above.)

INSTRUCTION MANUAL

Machine Type:

Power tool equipped with 1/2” & 3/8” chuck for use

with various drill bits for drilling holes - No other use is

permitted

Air Supply Requirements

1. Supply tool with 90 psig (6.3 bar) of clean, dry air.

Higher pressure drastically reduces tool life.

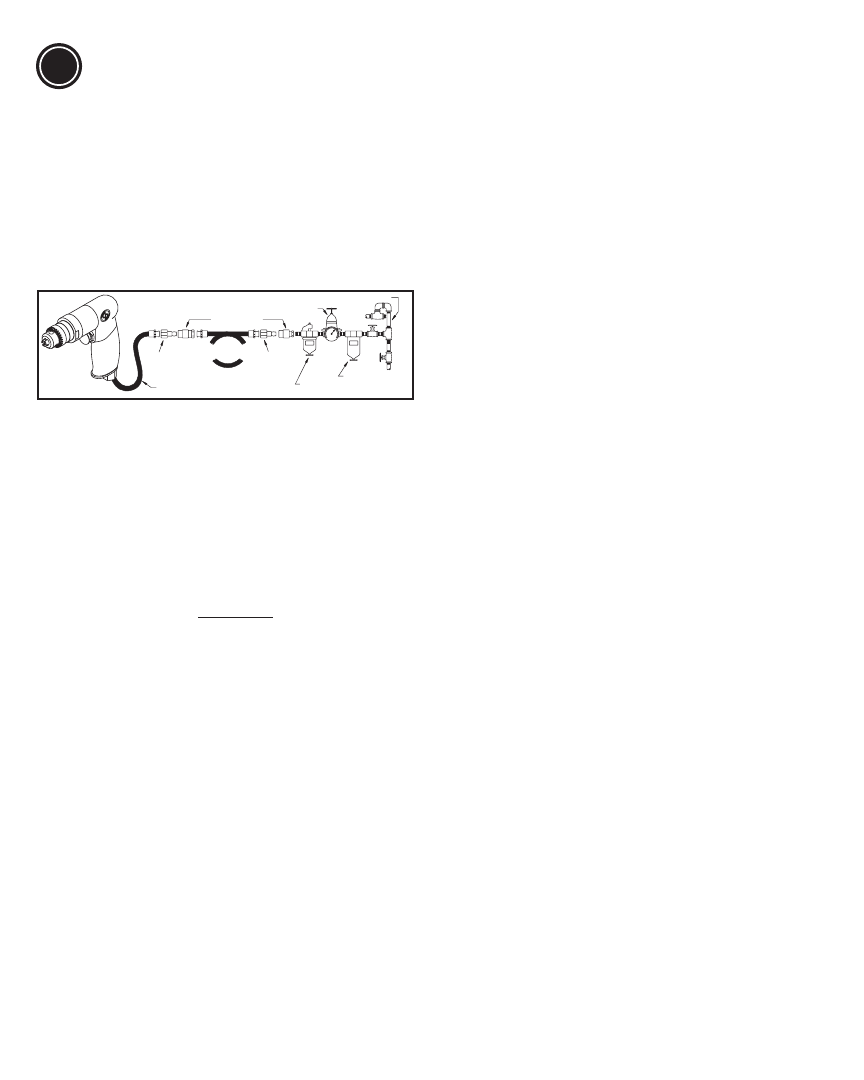

2. Connect tool to air line using pipe, hose and fitting

sizes shown in the diagram below.

Lubrication

1. Use an air line lubricator with SAE #10 oil, adjusted

to two drops per minute. If an air line lubricator

cannot be used, add air motor oil to the inlet once a

day.

2.  Make sure adequate lubrication is provided for

internal gears for long life.

Maintenance

1. Disassemble and inspect tool every three months

if the tool is used every day. Replace damaged or

worn parts.

2. High wear parts are underlined in the parts list.

3. To keep downtime to a minimum, the following

service kits are recommended:

Tune-Up Kit:

 2050552613

Technical Data

Free speed:

CP1117P60   6 000 RPM

CP1117P32   3 200 RPM

CP1117P26   2 600 RPM

CP1117P09   900 RPM

CP1117P05   500 RPM

Air pressure 90 psi (6.3 bar)

Air comsumption: 29,5 cfm (14 l/s)

Power: 1 Hp (750W)

English

EN

1/2" (12mm)

3/8" (10mm)

3/8" (10mm)

3/8" (10mm)

CA048361 (1/2")

CA048362 (1/2")

CA048360 (1/2")

3/8" (10mm)

3/8" (10mm)

130
