 English |

19

Bosch Power Tools

1 609 92A 04B | (14.12.12)

Temperature control of the power tool electronics:
– The  red  LED

14

 lights up continuously when pressing the

On/Off switch

8

: The temperature of the machine’s elec-

tronics is below 5 ° C or above 75 ° C.

– At a temperature above 90 ° C , the electronics of the pow-

er tool switch off until the temperature is within the allow-
able temperature range again.

Working Advice

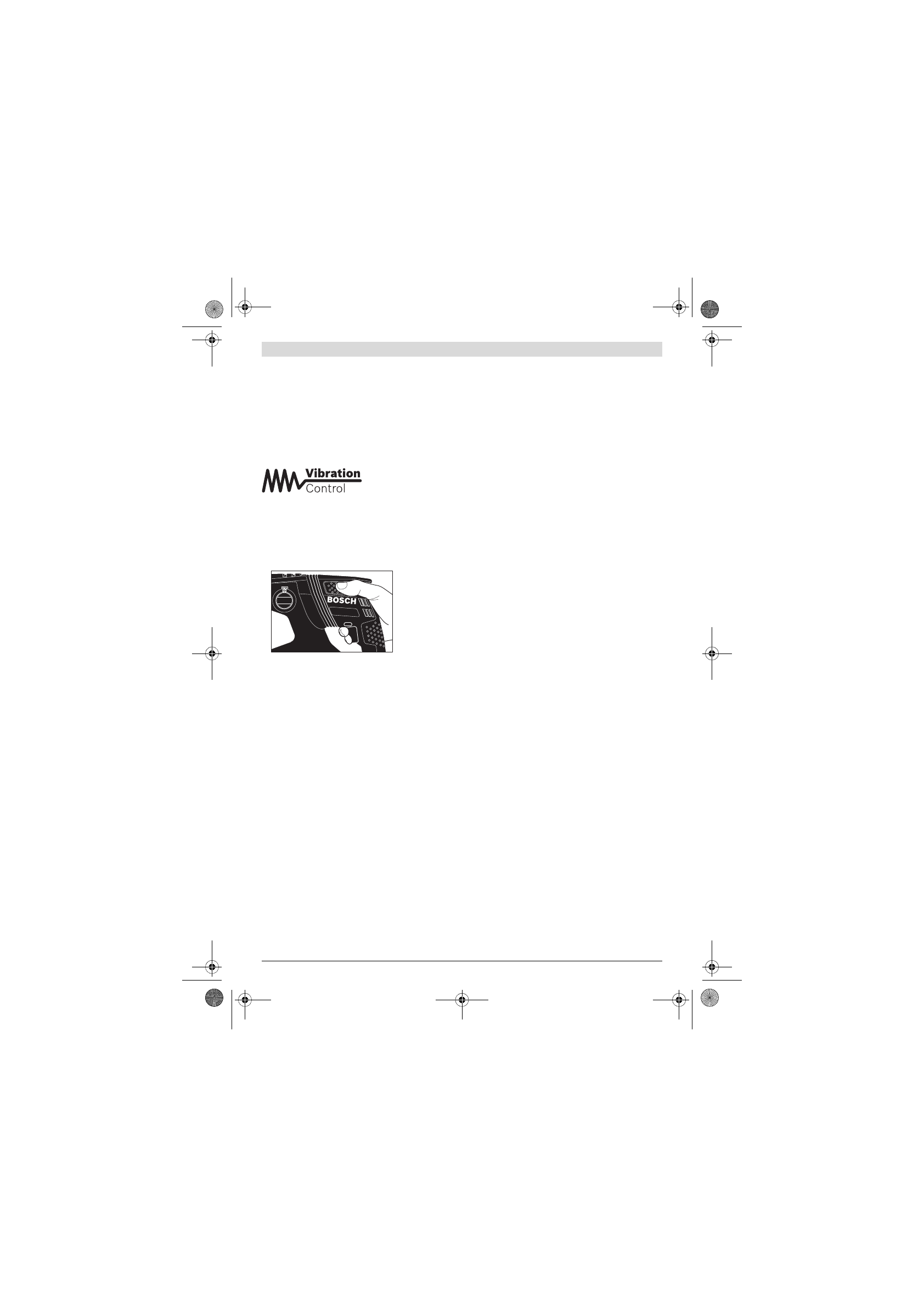

Vibration Damper

The integrated vibration damper reduces occurring vibra-
tions.

The soft grip handle increases the safety against slipping off
and thus provides for a better grip and handling of the power
tool.

– For optimum use of the vibration-dampening feature, hold

the power tool in the upper gripping area.

Inserting Screwdriver Bits (see figure J)



Apply the power tool to the screw/nut only when it is
switched off.

Rotating tool inserts can slip off.

To work with screwdriver bits, a universal bit holder

27

 with

SDS-plus shank (accessory) is required.

– Clean the shank end of the adapter shank and apply a light

coat of grease.

– Insert the universal bit holder with a turning motion into

the tool holder until it automatically locks.

– Check the locking effect by pulling the universal bit holder.
– Insert a screwdriver bit into the universal bit holder. Use

only screwdriver bits that match the screw head.

– To remove the universal bit holder, pull the locking sleeve

4

 toward the rear and remove the universal bit holder

27

out of the tool holder.

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Store the battery only within a temperature range between
0 ° C and 50 ° C. As an example, do not leave the battery in the
car in summer.

Occasionally clean the venting slots of the battery using a soft,
clean and dry brush.

A significantly reduced working period after charging indi-
cates that the battery is used and must be replaced.

Observe the notes for disposal.

Maintenance and Service

Maintenance and Cleaning



Before any work on the machine itself (e. g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating
the On/Off switch.



For safe and proper working, always keep the machine
and ventilation slots clean.



A damaged dust protection cap should be changed im-
mediately. We recommend having this carried out by
an after-sales service.

– Clean the tool holder

2

 each time after using.

If the machine should fail despite the care taken in manufac-
turing and testing procedures, repair should be carried out by
an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.

After-sales Service and Application Service

Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:

www.bosch-pt.com

Bosch’s application service team will gladly answer questions
concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: (0844) 7360109
Fax: (0844) 7360146
E-Mail: boschservicecentre@bosch.com

Ireland

Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
