have selected, change to a higher range. On some low DC and AC voltage ranges, with

the test leads not connected to a device, the display may show a random, changing

reading. This is normal and is caused by the high-input sensitivity. The reading will

stabilize and give a proper measurement when connected to the circuit.

  7.  Always turn the function switch to the OFF position when the meter is not in use. The

meter will automatically shut OFF if not used for 15 minutes.

Rotary Function Switch

The Rotary Function switch permits the user to select a measurement function by position-

ing the rotary switch to one of the icons around its perimeter.

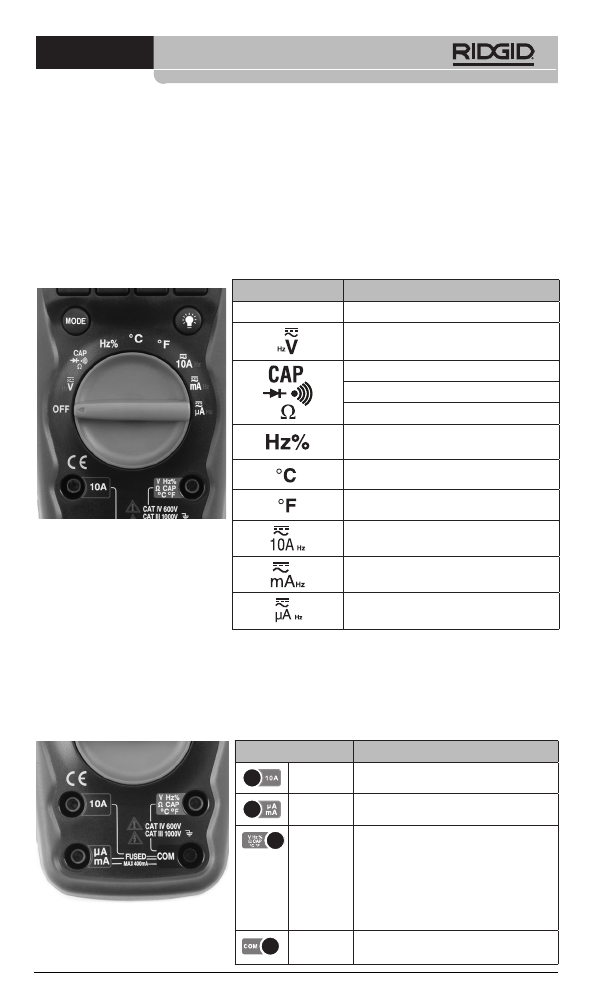

Figure 6 – Rotary Function Switch

Switch Position

Function

OFF

Switch Off the Multimeter

DC/AC Voltage Measurement

Capacitance Measurement
Continuity Check and Diode Test
Resistance Measurement

Frequency Measurement

Temperature Measurement in °C

Temperature Measurement in °F

DC/AC Current Measurement up to

10 A

DC/AC Current Measurement up to

400 mA

DC/AC Current Measurement up to

4000 µA

Input Terminals

The black test lead plugs into the negative (COM) terminal and the red test lead plugs into

any of the three the positive input terminals according to the measurement to be made.

Use the provided terminal plugs in idle terminals during operation.

Figure 7 – Input Terminals

Terminals

Description

10 A

Input Terminal for 0 to 10 A

µA / mA Input Terminal for 0 to 400 mA

V / Hz% /

Ω / CAP /

TEMP

Input Terminal for DC/AC Voltage

Measurement, Resistance

Measurement, Continuity

Check, Diode Test, Frequency

Measurement, Capacitance

Measurement and Temperature

Measurement

COM

Negative Terminal for all

measurements
