micro DM-100 Digital Multimeter

9

Icons

Screen Icons

6

7

8

9

10

11

5

4

3

2

1

Icon Number Icons on Screen Description

1

Low Battery.

2

—

Polarity Indicator. Negative readings, In relative

mode, this sign indicates that the present input is

less than the stored reference value.

3

AC

Alternating Current or Voltage.

4

DC

Direct Current or Voltage.

5

AUTO

Autoranging Mode is Active. Automatically selects

the best range for measurements.

6

HOLD

Data Hold is Active.

7

REL

Relative Mode is Active.

8

Diode Test Mode.

9

Continuity Check Mode.

10

°C and °F

Temperature Mode (Degree Celsius, Degree

Fahrenheit).

11

Ω, kΩ , M

ohm, kilohm, Megohm

Hz, kHz

hertz, kilohertz

%

Percent. Used for Duty Cycle Measurements.

V, mV

volts, millivolts

A, μA, mA

amperes (amps), microamp, milliamp

μμF, nF

microfarad, nanofarad

—

OL

Overload Condition.

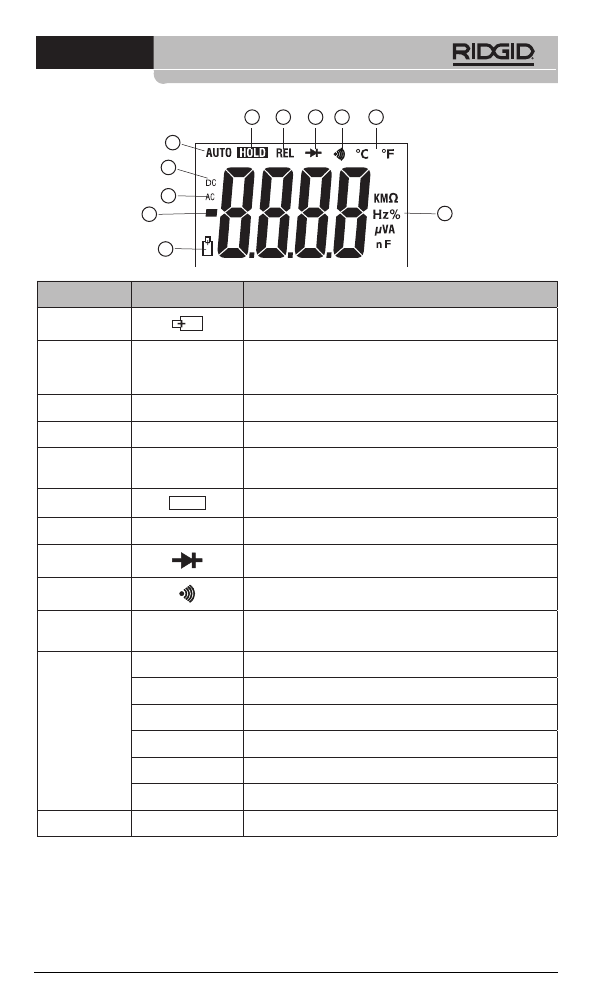

Figure 4 – Screen Icons
