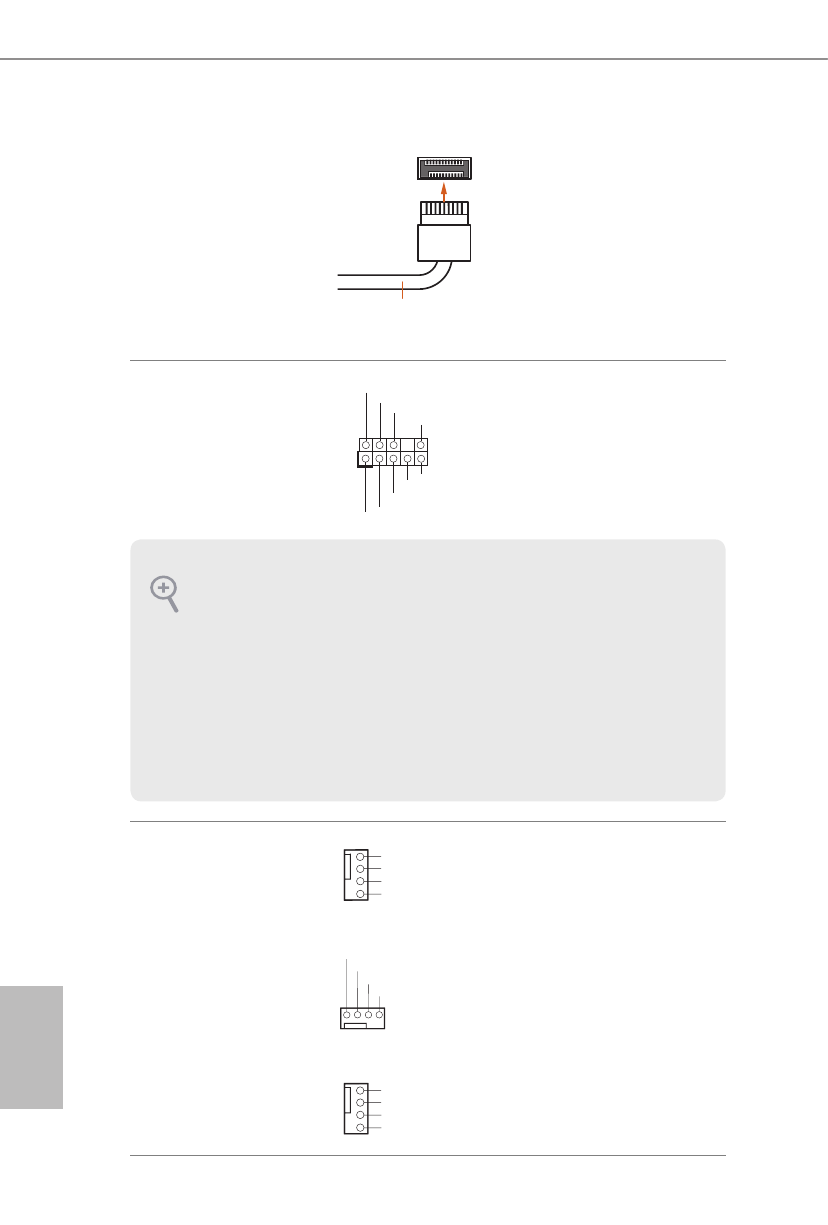

Front Panel Type C USB
3.2 Gen1 Header
(20-pin USB3_TC_1)
(see p.1, No. 10)

There is one  Front
Panel Type C USB 3.2
Gen1 Header on this
motherboard. This header
is used for connecting a
USB 3.2 Gen1 module for
additional USB 3.2 Gen1
ports.

Front Panel Audio
Header
(9-pin HD_AUDIO1)
(see p.1, No. 27)

This header is for
connecting audio devices
to the front audio panel.

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 29)

(4-pin CHA_FAN2/WP)
(see p.1, No. 22)
(4-pin CHA_FAN3/WP)
(see p.1, No. 23)

(4-pin CHA_FAN4/WP)
(see p.1, No. 30)

This motherboard
provides four 4-Pin
water cooling chassis fan
connectors. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.

1.  High Definition Audio supports Jack Sensing, but the panel wire on the chassis

must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2.  If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

GN D
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTRO L

1

2

3

4

GN D
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTRO L

1

2

3

4

GND

CHA_FAN_SPEED

FAN_SPEED_CONTROL

FAN_VOLTAGE

1     2     3    4

1    2    3    4

J _ S E N S E

O U T 2 _ L

1

M I C _ R E T

P R E S E N C E #

G N D

O U T 2 _ R

M I C 2 _ R

M I C 2 _ L

O U T _ R E T

USB Type-C Cable
