 English |

17

Bosch Power Tools

1 609 92A 0BR | (14.10.13)

– Avoid interruptions within the spray surface.

Guiding the spray gun evenly will provide uniform surface
quality.

Non-uniform clearance and spray angle lead to heavy forma-
tion of paint mist and thus to an uneven surface.

– End the spraying procedure outside the target area.

Never completely empty the container for the spray material
by spraying. If the suction tube is no longer immersed in the
spray material, the spray jet will be interrupted and this will
result in an inconsistent surface.

When coating material builds up on the nozzle and air cap,
clean both parts with the corresponding solvent.

Adjusting the Spray Pattern (see figure F)



Never actuate the trigger switch 9 while adjusting the
air cap 2.

– Loosen the union nut

3

.

– Turn  the  air  cap

2

 to the requested position.

– Firmly retighten the union nut.

Adjusting the Spraying Capacity (see figure G)

– To adjust the requested spraying capacity, turn the thumb-

wheel

5

:

I

: Min. spraying capacity,

IIII

: Max. spraying capacity.

Adjusting the Air Flow (see figure H)

– Turn control knob

16

 to adjust the air flow and the pres-

sure for the spray material being used.

It is recommended to start with the maximum air flow.

Transport

The filled spray gun or a closed container with spray material
can be placed in the set-down port

17

 for transport. The hold-

ing fixture retains the spray gun firmly in the set-down port.
Spray material cannot run out.

– Place down the spray gun on the set-down port and push in

against the resistance until tightly seated.

Maintenance and Service

Maintenance and Cleaning



Before any work on the machine itself, pull the mains
plug.

Cleaning (see figures I – K)

Proper cleaning is the requirement for flawless operation of
the spray gun. Improper or lack of cleaning voids warranty
claims.

Always clean the spray gun and the container with the respec-
tive diluting agent (paint thinner or water) for the spray mate-
rial being used.

Never immerse the complete spray gun into the cleaning
agent.

Never clean the nozzle and air holes of the spray gun with
pointed metal objects.

Do not pour diluted spray material back into the original spray
material drum/tin for storage.

Clean the spray gun thoroughly after having sprayed material
hazardous to one's health.

– Switch the base unit off and pull the trigger switch

9

 of the

spray gun so that the spray material can flow back into the
container.

– Unscrew the container

8

 and empty the remaining spray

material back into the original spray material.

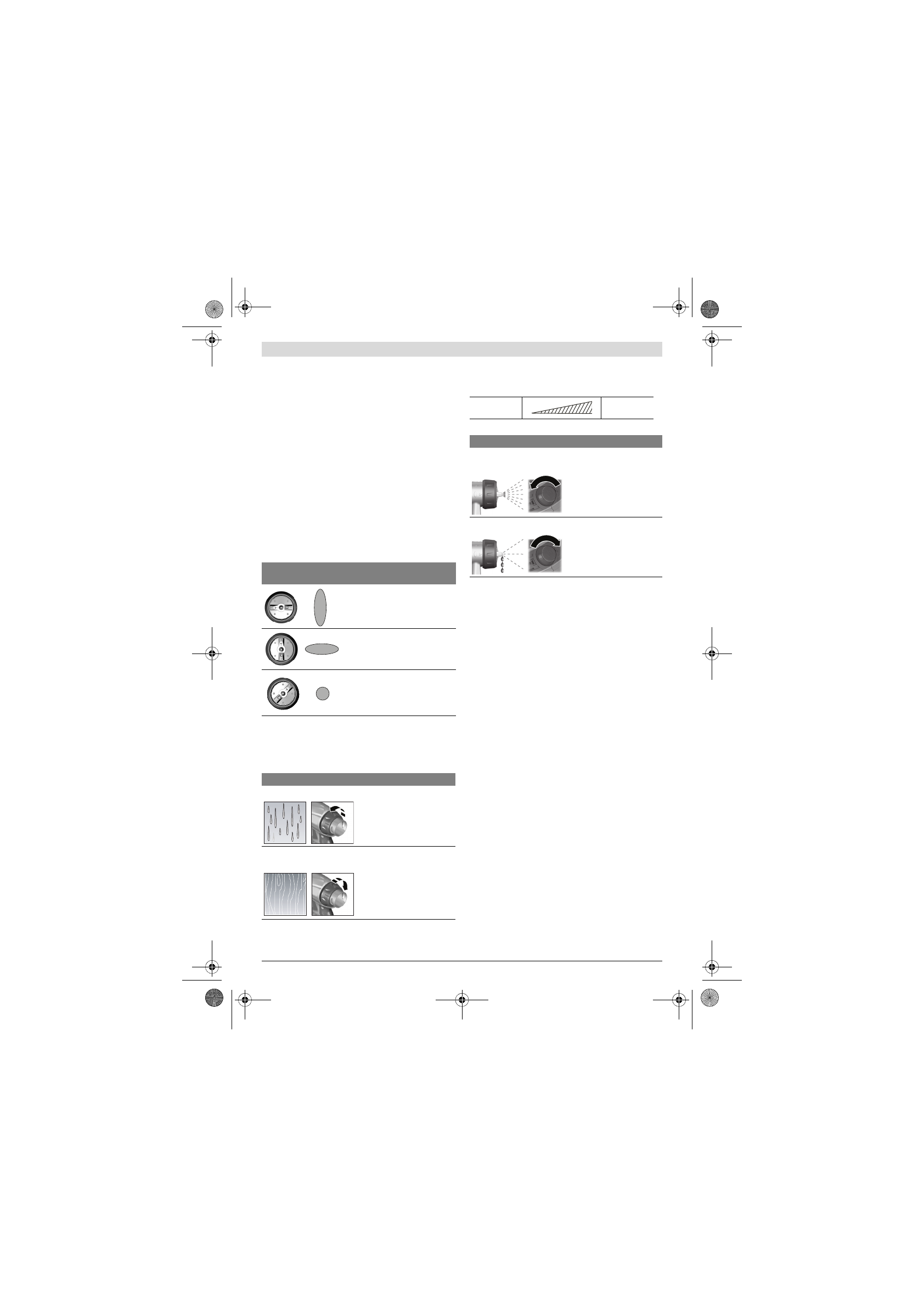

Air cap

Spray jet
pattern

Application

A

Vertical flat jet for horizontal
working direction

B

Horizontal flat jet for vertical
working direction

C

Round jet for corners, edges and
hard to reach locations

Spraying capacity

Adjustment

Too much material on target area:  The spraying capacity

must be reduced.

– Turn the thumbwheel

5

 in direction

I

.

Not enough material on target
area:

The spraying capacity
must be increased.

– Turn the thumbwheel

5

 in direction

IIII

.

Minimal air flow

Maximum air
flow

Air Flow

Adjustment

Too much fog of coating
material:

The air flow must be re-
duced.

– Turn control knob

16

 to-

ward the left.

Atomisation too coarse:

The air flow must be in-
creased.

– Turn control knob

16

 to-

ward the right.
