13

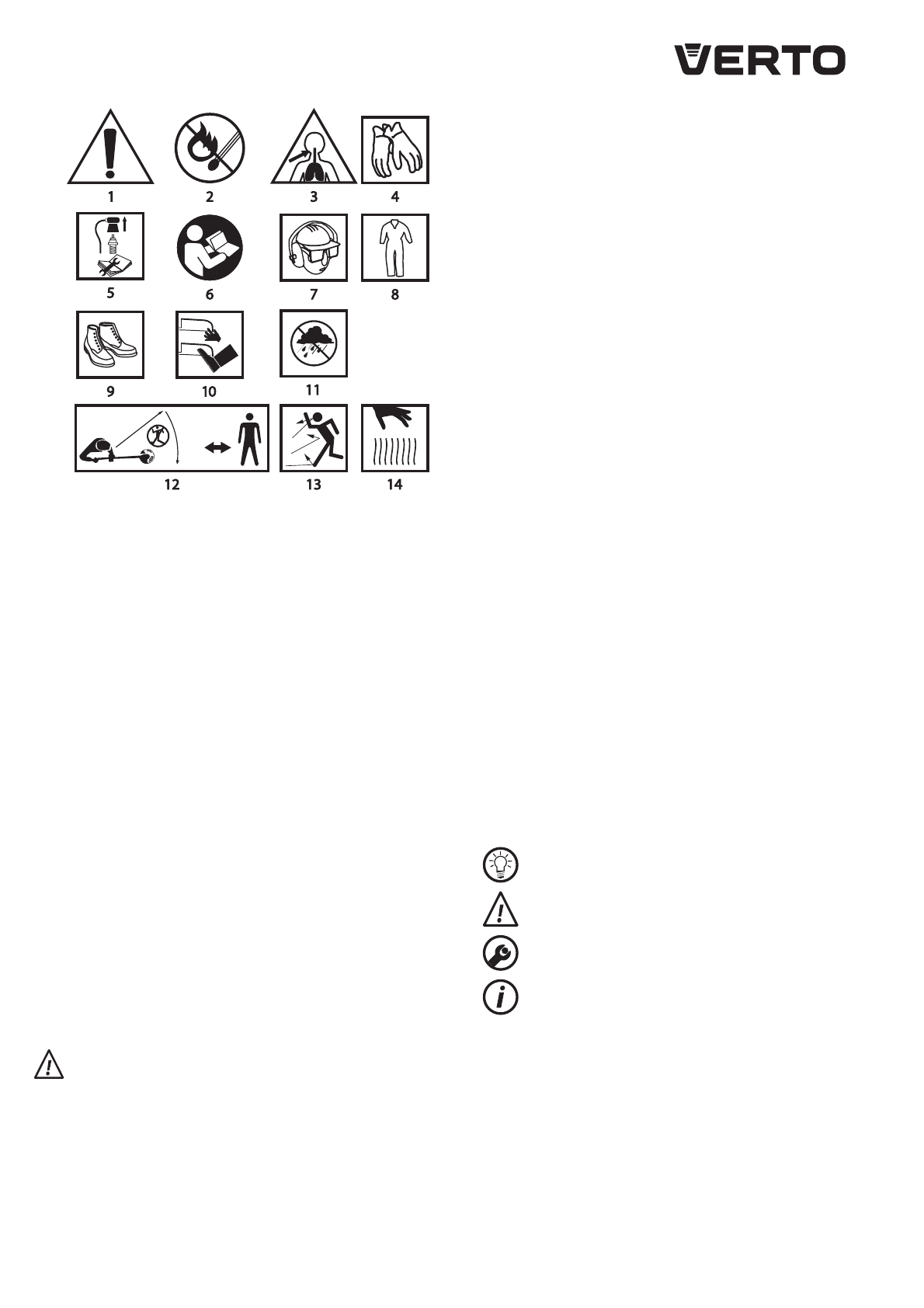

E X P L A N AT I O N O F U S E D S YM B O L S
36
0°
1
5
m
1.
Warning, use precaution measures.
2.
Fire hazard
3.
Exhaust gas poisoning hazard
4.
Use protective gloves.
5.
Switch off the engine and remove wire from the sparking plug
before commencing any maintenance or repair.
6.
Read instruction manual, observe warnings and safety conditions
therein!
7.
Use head, eyes and ears protection.
8.
Use protective clothes.
9.
Use protective shoes.
10.
Do not put your hands or legs close to cutting parts.
11.
Protect against humidity.
12.
Do not allow other persons in the grass cutter work area, keep
minimum distance 1
5
m from bystanders.
13.
Watch out for projected objects.
14.
Do not touch hot parts.
CAUTION! The design is assumed to be safe, protection measures
and additional safety systems are used, never theless there is
always a small risk of operational injuries.
CONSTRUC TION AND USE
Petrol grass cutter is driven by a one -cylinder, air cooled, two-stroke
combustion engine. Petrol grass cutter is per fect for rough terrain,
where petrol mowers cannot operate. Two hands handle allows
comfor t cutting of large areas. The tool equipped with appropriate
cutting element can also be used for trimming lawn edges and
finishing works around trees, pathways, to remove tangled grass,
reed and nettle in garden. Use accessories only designed for the type
of device and follow all instructions contained in the manual. Petrol
grass cutter is intended for amateur use only.
Use the tool according to its purpose only.
D E S C R I P T I O N O F D R AW I N G PAG E S
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1.
Engine control
2.
Shoulder strap holder
3.
Starter line
4.
Ignition plug
5.
Air filter casing
6.
Fuel filler plug
7.
Fuel tank
8.
Throttle cable
9.
Handle
10.
Carrying harness
11.
Drive shaft cover
12.
Shield
13.
Cutting element
14.
Fixing screws
15.
Cover of spool with cutting line
18.
Safety catches
19.
Spool with cutting line
20.
Spring
21.
Cutting line holes
22.
Spindle
23.
Spindle lock hole
24.
Three-blade knife
25.
Blade for cutting excess cutting line
26.
Fixing screws for plastic shield
28.
Additional button for locking throttle lever
29.
Ignition switch
30.
Throttle lever
31.
Shoulder strap spring hook
32.
Shoulder strap fastener
33.
Transmission lubrication cap
34.
Key for ignition plugs
35.
Ignition plug wire
36.
Ignition plug contacts
37.
Fuel filter
38.
Choke lever
39.
Membrane pump
40.
Idle running speed adjustment screw
41.
Air filter
42.
Air filter shield
* Differences may appear between the product and drawing.
M E A N I N G O F S YM B O L S
CAUTION
WARNING
ASSEMBLY/SET TINGS
INFORMATION
E Q U I PM E N T A N D ACC E S S O R I E S
1. Cover of spool with cutting line
- 1 pce
2
. Three -blade knife
- 1 pce
3
. Handle
- 1 pce
4
. Bolts and nuts
- 1 set
5
. Carr ying harness
- 1 pce
6
. Key with screwdriver
- 1 pce
7. Hexagonal key
-
2
pce
8
. Use petrol-oil blend tank
- 1 pce
9
. Plastic shield
- 1 pce
