DIVAtop MICRO F
43
EN
cod. 3540S261 - 02/2010 (Rev. 00)

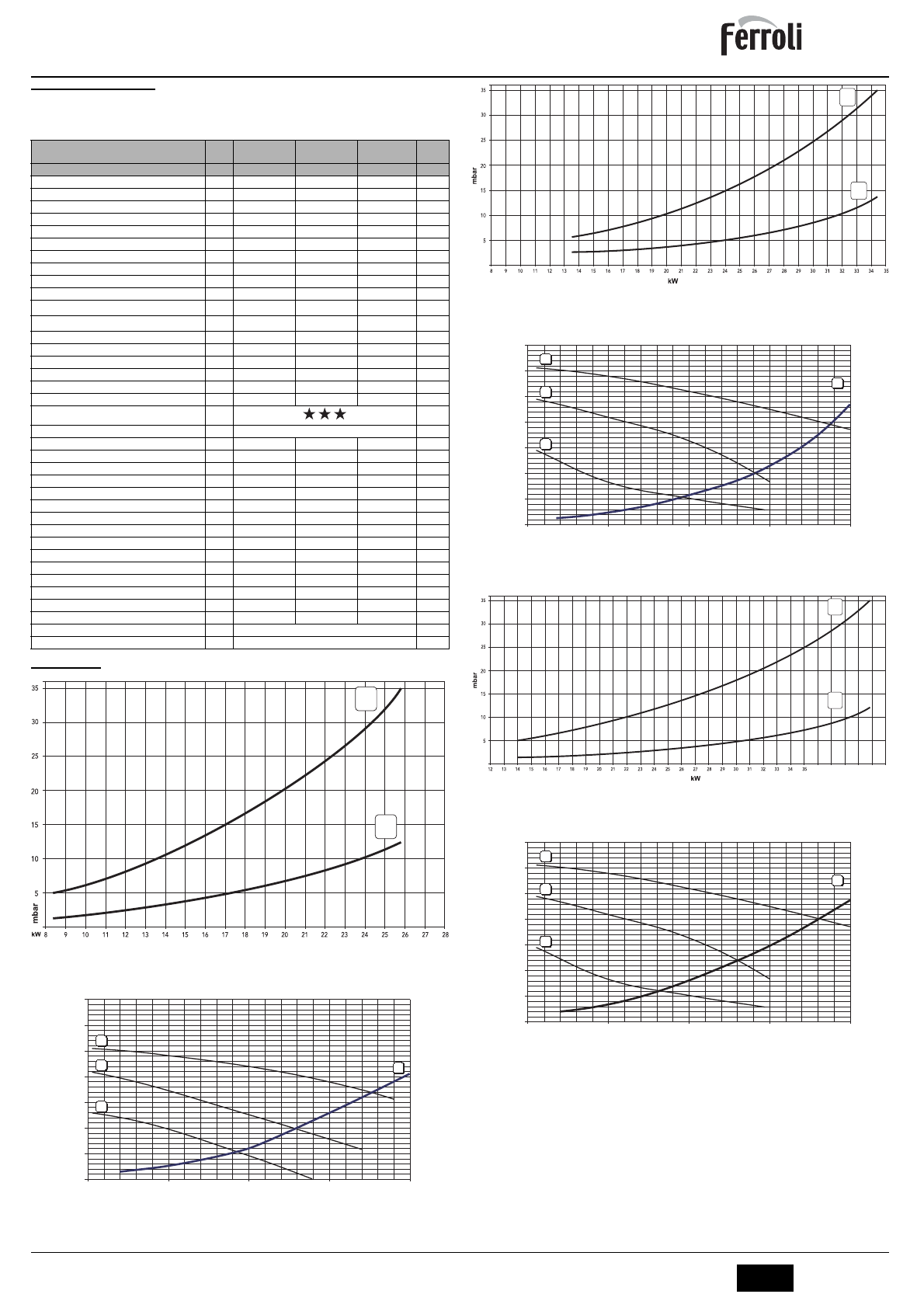

5.2 Technical data table
The column on the right gives the abbreviation used on the dataplate.
5.3 Diagrams
fig. 33 - Pressure/power diagram DIVAtop MICRO F 24
A
LPG
B
NATURAL GAS
fig. 34 - Circulating pump head / pressure losses DIVAtop MICRO F 24
A
Boiler pressure losses
1 - 2 - 3
Circulating pump speed
fig. 35 - Pressure/power diagram DIVAtop MICRO F 32
A
LPG
B
NATURAL GAS
fig. 36 - Circulating pump head / pressure losses DIVAtop MICRO F 32
A
Boiler pressure losses
1 - 2 - 3
Circulating pump speed
fig. 37 - Pressure - power diagram DIVAtop MICRO F 37
A
LPG
B
NATURAL GAS
fig. 38 - Circulating pump head / pressure losses DIVAtop MICRO F 37
A
Boiler pressure losses
1 - 2 - 3
Circulating pump speed
DIVAtop MICRO
F 24
DIVAtop MICRO
F 32
DIVAtop MICRO
F 37
Data
Unit
Value
Value
Value
Max. heating capacity
kW
25.8
34.4
39.7
(Q)
Min. heating capacity
kW
8.3
11.5
14.0
(Q)
Max. Heat Output in heating
kW
24.0
32.0
37.0
(P)
Min. Heat Output in heating
kW
7.6
10.6
12.9
(P)
Max. Heat Output in hot water production
kW
24.0
32.0
37.0
Min. Heat Output in hot water production
kW
7.6
10.6
12.9
Burner nozzles G20
no.x Ø
11 x 1.35
15 x 1.35
17 x 1.35
Gas supply pressure G20
mbar
20
20
20
Max. pressure downstream of gas valve (G20)
mbar
12.0
12.0
12.0
Min. pressure downstream of gas valve (G20)
mbar
1.5
1.5
1.5
Max. gas delivery G20
nm
3
/h
2.73
3.64
4.20
Min. gas delivery G20
nm
3
/h
0.88
1.22
1.48
Burner nozzles G31
no.x Ø
11 x 0.79
15 x 0.79
17 x 0.79
Gas supply pressure G31
mbar
37.0
37
37.0
Max. pressure downstream of gas valve (G31)
mbar
35.0
35.0
35.0
Min. pressure downstream of gas valve (G31)
mbar
5.0
5.0
5.0
Max. gas delivery G31
kg/h
2.00
2.69
3.10
Min. gas delivery G31
kg/h
0.65
0.90
1.10
Efficiency class Directive 92/42 EEC
-
NOx emission class
-
3 (<150 mg/kWh)
(NOx)
Max. working pressure in heating
bar
3
3
3
(PMS)
Min. working pressure in heating
bar
0.8
0.8
0.8
Max. heating temperature
°C
90
90
90
(tmax)
Heating water content
litres
1.0
1.2
1.5
Heating expansion tank capacity
litres
8
10
10
Heating expansion tank prefilling pressure
bar
1
1
1
Max. working pressure in hot water production
bar
9
9
9
(PMW)
Min. working pressure in hot water production
bar
0,25
0.25
0.25
DHW flowrate
'
t 25°C
l/min
13.7
18.3
21.2
DHW flowrate
'
t 30°C
l/min
11.4
15.2
17.6
(D)
Protection rating
IP
X5D
X5D
X5D
Power supply voltage
V/Hz
230V/50Hz
230V/50Hz
230V/50Hz
Electrical power input
W
110
135
150
Electrical power input in hot water production
W
110
135
150
Empty weight
kg
33
36
40
Type of unit
C12-C22-C32-C42-C52-C62-C72-C82-B22
PIN CE
0461BR0844
B
A
0
1
2
3
4
5
6
7
0
500
1.000
1.500
2.000
Q
[l/h]
H
[m H
2
O]
A
3
2
1
A
B
0
1
2
3
4
5
6
7
0
500
1.000
1.500
2.000
Q
[l/h]
H
[m H
2
O]
A
3
1
2
5
4
A
B
36
37
38
39
40
41
0
1
2
3
4
5
6
7
0
500
1.000
1.500
2.000
Q
[l/h]
H
[m H
2
O]
A
3
1
2
