Pump LED.
The LED flashes green when the pump is powered and the pwm control signal is connected.
The LED lights up steady green when the pump is powered and the signal cable disconnected. In these conditions the pump
works at maximum and without control.
If the pump detects an alarm, the LED switches from green to red; this can mean one of the following failures:
- low supply voltage;
- rotor seized;
- electrical error.
For a detailed description of the meaning of the red LED, refer to (Parag. 3.8).
The LED, in addition to being green or red, can also remain off.
It is normal for the LED to be off when the pump is not powered, whereas with the pump powered, the LED must be lit: if
switched off, it means there is a fault.
Pump release.
If after a long period of inactivity, the circulator is blocked, adjust the screw in the centre of the head in order to manually release the mo-
tor shaft.
Take great care during this operation to avoid damage to the motor.

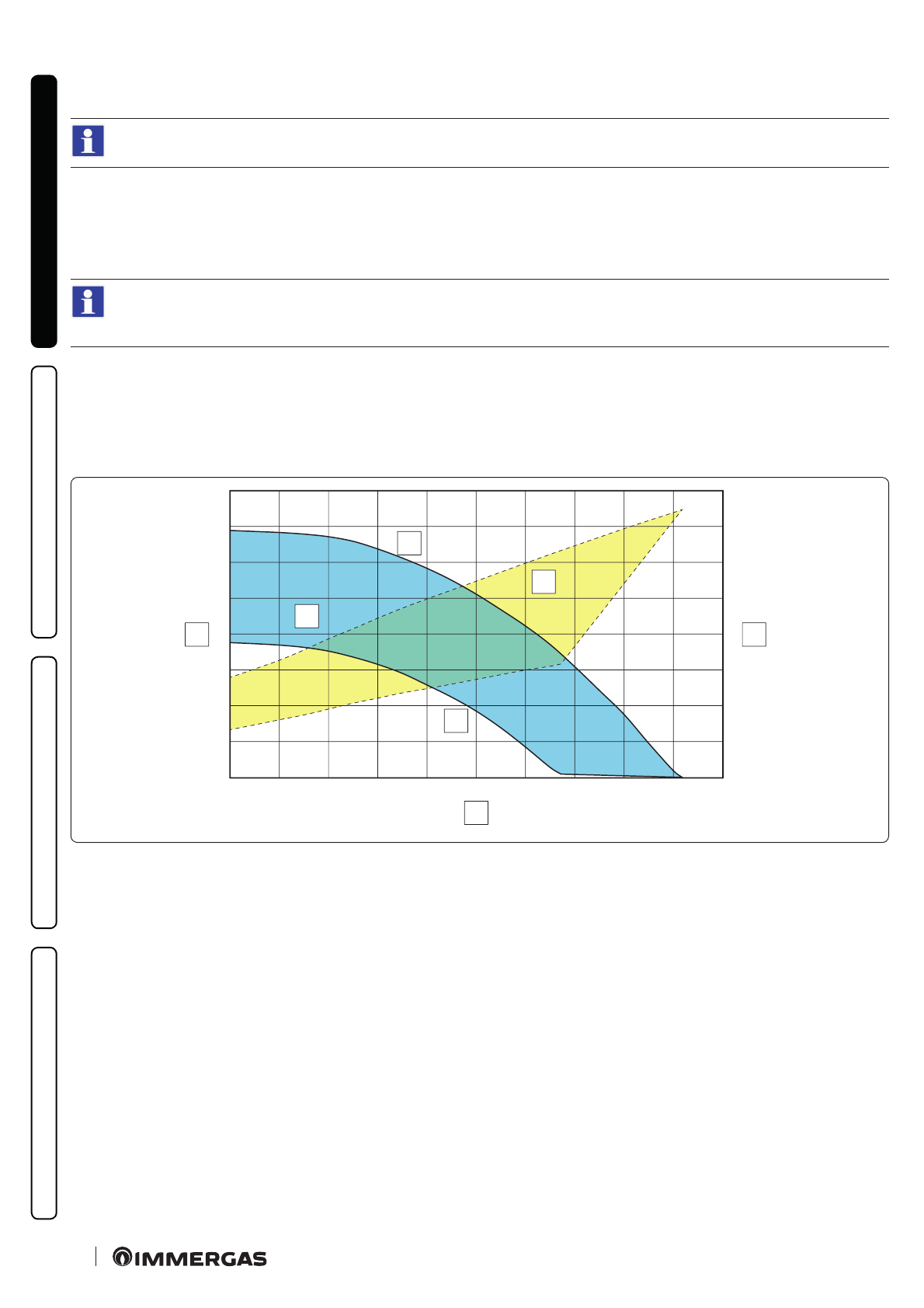

Total head available to the system.
0
10
20
30
40
50
60
70
80
0
10
20
30
40
50
60
70
80
0
200
400
600
800
1000
1200
1400
1600
1800
2000
1
2
A
B
X1
Y1
Y2
19
Key (Fig. 19):
X1
= Flow rate (l/h)
Y1 =
Head
(kPa)
Y2
= Circulator pump absorbed power
(W)
1
= Maximum speed (100%)
2
= Minimum speed (70%)
A
= Head available to the system
B
= Power absorbed by the circulator
pump (dotted area)
1.21 KITS AVAILABLE ON REQUEST
- 3 kW heating system integrated resistance kit. Should it be necessary, you can install an electrical resistance to supplement the central
heating system; this resistance can be installed directly inside the indoor unit.
- 2 zone kit (1 direct and 1 mixed). Should it be necessary, you can install the zone kit, which allows you to divide the heating system into
two separate zones - one direct and one mixed.
- Configurable relay interface kit. The module is set up for a relay board, which amplifies the appliance features and, thus, the operating
possibilities.
- 2-relay board kit. The indoor unit can manage up to two dehumidifiers. A 2 relay board that manages dehumidifier enabling is available
to pair the appliances.
- R32 circuit connection kit. For R32 circuit wall connections, there is a kit with the two pipes necessary to create the circuit.
