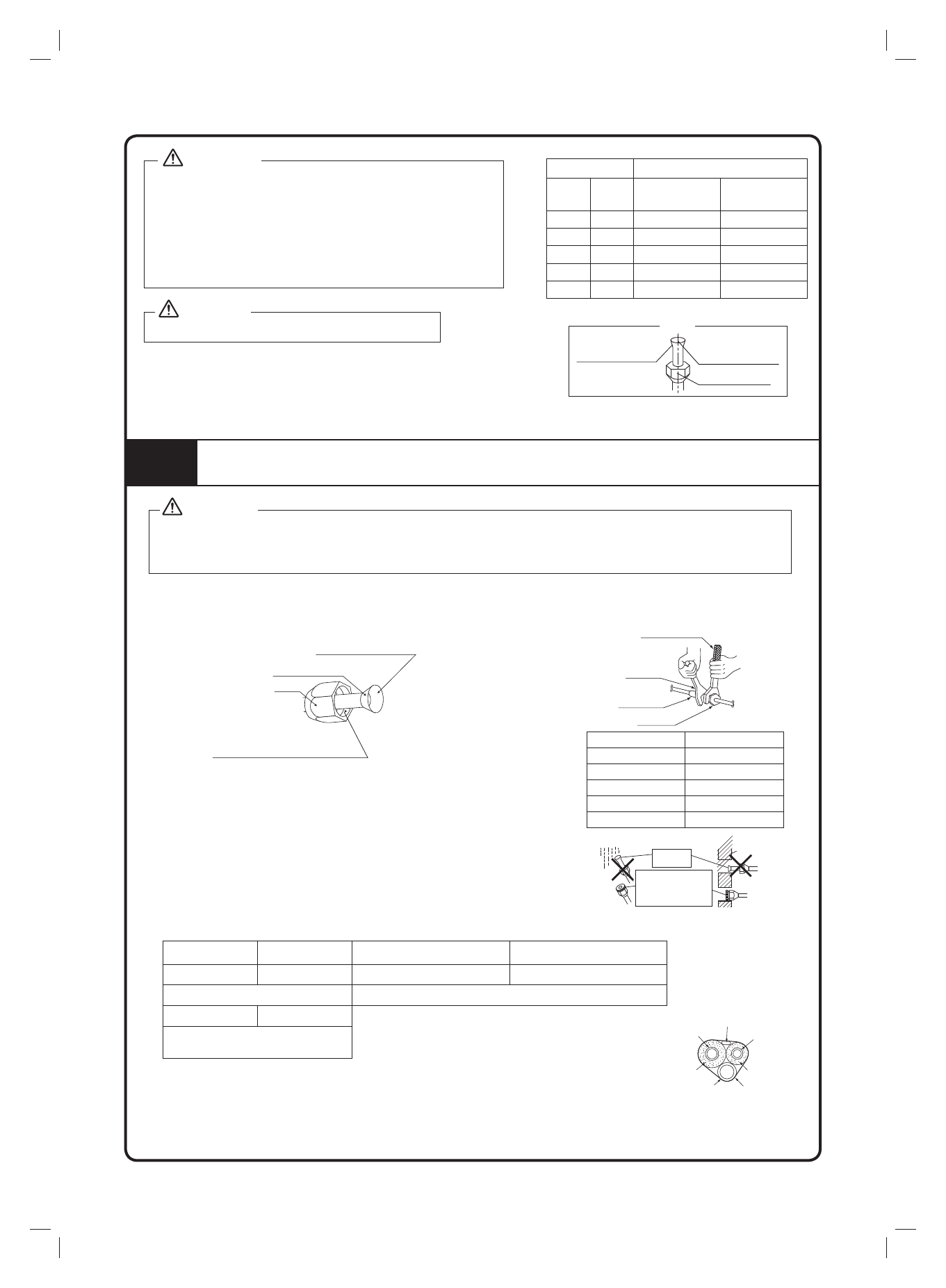

1-18
• Do not use mineral oil on
fl
ared part.
• Prevent mineral oil from getting into the system as this would
reduce the lifetime of the units.
• Never use piping which has been used for previous installations.
• Only use parts which are delivered with the unit.
• Do never install a drier to this R32 unit in order to guarantee its
lifetime.
• The drying material may dissolve and damage the system.
• Incomplete
fl
aring may cause refrigerant gas leakage.
WARNING
Do not reuse joints which have been used once already.
CAUTION
4
REFRIGERANT PIPING
1) Use the
fl
are nut
fi
xed to the main unit. (To prevent cracking of the
fl
are nut by aged deterioration.)
2) To prevent gas leakage, apply refrigeration oil only to the inner surface of the
fl
are. (Use refrigeration oil for R32.)
3) Use torque wrenches when tightening the
fl
are nuts to prevent damage to the
fl
are nuts and gas leakage.
CAUTION
Align the centres of both flares and tighten the flare nuts 3 or 4 turns by hand. Then tighten them fully with the torque
wrenches.
1. Cautions on pipe handling
1) Protect the open end of the pipe against dust and moisture.
2) All pipe bends should be as gentle as possible.
Use a pipe bender for bending.
2. Selection of copper and heat insulation materials
When using commercial copper pipes and
fi
ttings, observe the following:
1) Insulation material: Polyethylene foam
Heat transfer rate: 0.041 to 0.052W/mK (0.035 to 0.045kcal/(mh •
˚
C)
Refrigerant gas pipe’s surface temperature reaches 110
˚
C max.
Choose heat insulation materials that will withstand this temperature.
2) Be sure to insulate both the gas and liquid piping and to provide insulation dimensions as below.
Gas side
Liquid side
Gas pipe thermal insulation
Liquid pipe thermal insulation
O.D. 12.7mm
O.D. 6.4mm
I.D. 14-16mm
I.D. 8-10mm
Minimum bend radius
Thickness 10mm Min.
40mm or more
30mm or more
Thickness 0.8mm
(C1220T-O)
3) Use separate thermal insulation pipes for gas and liquid refrigerant pipes.
Ø Tube, D
A (mm)
Inch
mm
Imperial
(Wing-nut Type)
Rigid
(Clutch Type)
1/4"
6.40
1.3
0.7
3/8"
9.52
1.6
1.0
1/2"
12.70
1.9
1.3
5/8"
15.88
2.2
1.7
3/4"
19.05
2.5
2.0
Flare’s inner surface
must be
fl
aw-free
The pipe end must
be evenly
fl
ared in
a perfect circle.
Make sure that the
fl
are nut is
fi
tted.
Check
[Apply oil]
Apply refrigeration oil to the
inner surface of the
fl
are.
Do not apply refrigeration
oil to the outer surface.
Do not apply refrigeration oil to
the
fl
are nut to avoid tightening
with excessive torque.
Flare nut
[Tighten]
Torque wrench
Spanner
Pipe union
Flare nut
Wall
Rain
Be sure to
place a cap.
If no
fl
are cap is
available, co ver the
fl
are mouth with tape to
keep dirt or water out.
Pipe Size, mm (in) Torque, Nm/(ft-lb)
6.40 (1/4")
18 (13.3)
9.52 (3/8")
42 (31.0)
12.70 (1/2")
55 (40.6)
15.88 (5/8")
65 (48.0)
19.05 (3/4")
78 (57.6)
Inter-unit wire
Drain hose
Liquid pipe
insulation
Gas pipe
insulation
Finishing tape
Gas pipe
Liquid pipe
