1-16
5

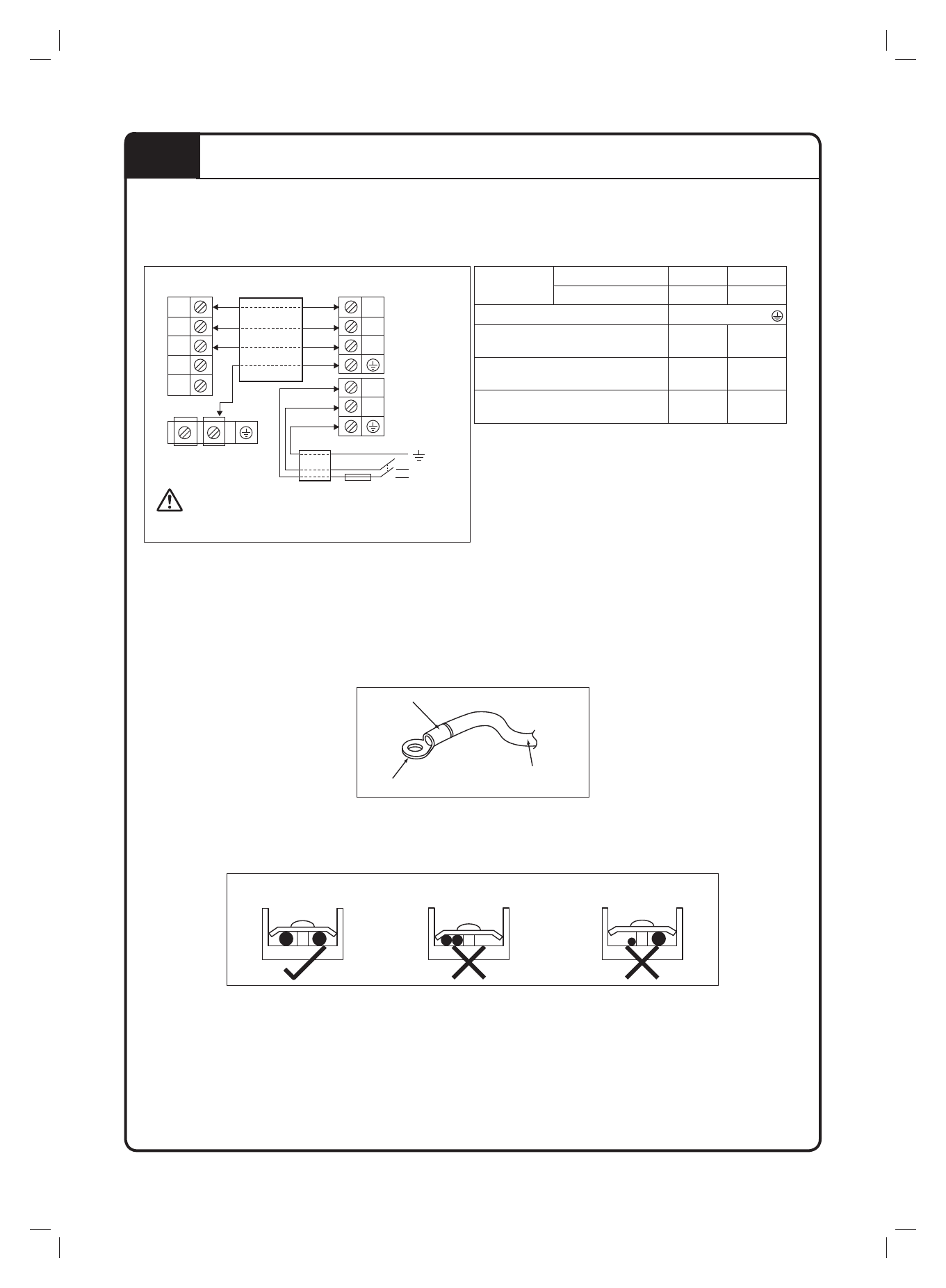

WIRING
IMPORTANT:
* The
fi
gures shown in the table are for information purpose only. They should be checked and selected
to comply with the local/national codes of regulations. This is also subject to the type of installation
and conductors used.
** The appropriate voltage range should be checked with label data on the unit.
2
1
2
1
N
L
3
3
Indoor Unit
Terminal Block
Interconnection
cable
Outdoor Unit
Terminal Block
Power Supply Cable
Fuse/Circuit
Breaker
Main
Switch
Power
Supply
N/L2
L/L1
There must be an all pole
disconnection in the supply
mains with a contact
separation of at least 3mm.
Model
Indoor (ATXC)
20/25/35B 50/60/71B
Outdoor (ARXC)
20/25/35B 50/60/71B
Voltage range**
220-240V/~/50Hz +
Power supply cable size*
Number of conductors
mm
2
1.5
3
2.5
3
Interconnection cable size*
Number of conductors
mm
2
1.5
4
2.5
4
Recommended fuse/circuit
breaker rating
A
16
20
• All wires must be
fi
rmly connected.
• Make sure all the wire do not touch the refrigerant piping, compressor or any moving parts.
• The connecting wire between the indoor unit and the outdoor unit must be clamped by using provided cord
anchorage.
• The power supply cord must be equivalent to H07RN-F which is the minimum requirement.
• Make sure no external pressure is applied to the terminal connectors and wires.
• Make sure all the covers are properly
fi
xed to avoid any gap.
• Use round crimp-style terminal for connecting wires to the power supply terminal block. Connect the wires by
matching to the indication on terminal block. (Refer to the wiring diagram attached on the unit).
Attach insulation sleeve
Round crimp-style terminal
Electric wire
• Use the correct screwdriver for terminal screws tightening. Unsuitable screwdrivers can damage the screw head.
• Over tightening can damage the terminal screws.
• Do not connect wire of different gauge to same terminal.
• Keep wiring in an orderly manner. Prevent the wiring from obstructing other parts and the terminal box cover.
Connect wires of the
same gauge to both side.
Do not connect wires of the
same gauge to one side.
Do not connect wires
of different gauges.
