English

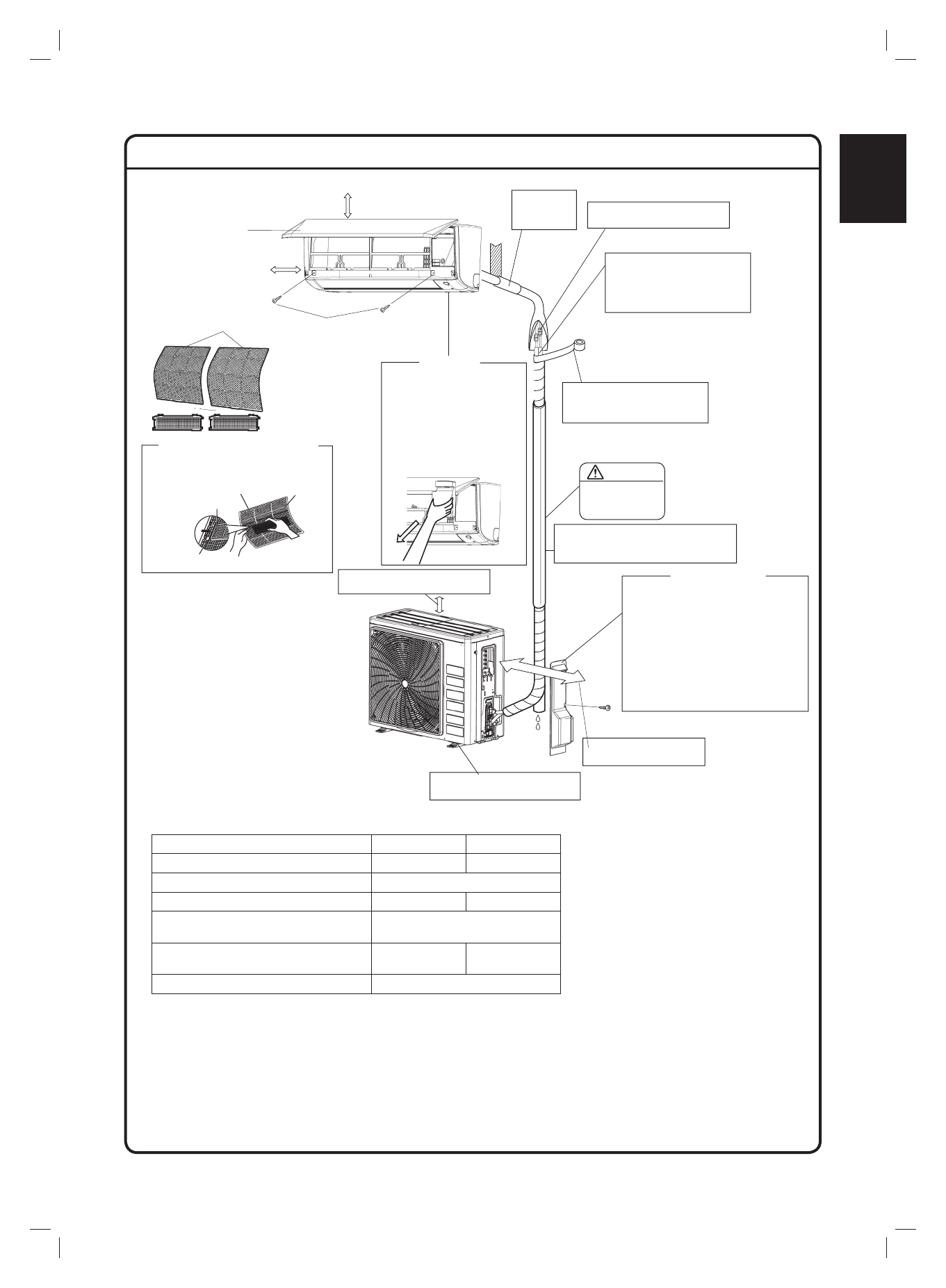

INDOOR/OUTDOOR UNIT INSTALLATION DRAWINGS
500mm from w
all
The service lid is removable
Opening method
1) Remove the service
lid screws
2) Pull out the service lid
diagonally down in the
direction of the arrow.
3) Pull down.
Service lid
55mm or more from ceiling
Caulk pipe
hole gap
with putty.
The
fl
are connection should
be installed outdoors
Cut thermal insulation pipe
to an appropriate length and
wrap it with tape, making
sure that no gap is left in the
insulation pipe’s cut line.
Wrap the insulation pipe
with the
fi
nishing tape from
bottom to top.
Refrigerant piping must be
protected from physical damage.
Install a plastic cover or equivalent.
CAUTION
Set the piping
length from
3m to 30m
Allow space for piping
and electrical servicing.
Where there is a danger of
the unit falling, use foot bolts.
Allow 300mm of work space
below the ceiling surface.
Air
fi
lters
Front panel
Air
fi
lter
Filter frame
Tab
Titanium apatite
deodorizing
fi
lter
Titanium apatite deodorizing
fi
lter (2)
Screws
(M4 x 12L)
50mm or more from
walls (on both sides)
How to remove the stop valve cover.
• Remove the screw on the stop
valve cover.
• Slide the lid downward to
remove it.
How to attach the stop valve cover.
• Insert the upper part of the stop
valve cover into the outdoor
unit to install.
• Tighten the screws.
Stop valve cover
ARXC20/25/35
ARXC50/60/71
Max. allowable piping length
20m
30m
Min. allowable piping length**
3m
Max. allowable piping height
15m
20m
Additional refrigerant required for
refrigerant pipe exceeding 7.5m in length*
17g/m
Gas pipe
3/8 inch
(9.52mm)
1/2 inch
(12.7mm)
Liquid pipe
1/4 inch (6.4mm)
* Be sure to add the proper amount of additional refrigerant.
Failure to do so may result in reduced performance.
** The suggested shortest pipe length is 10ft (3m), in order to avoid noise from the outdoor unit and vibration.
(Mechanical noise and vibration may occur depending on how the unit is installed and the environment in which it is used.)
