Use

 Extraction version

In this case the fumes are conveyed outside of the building by
means of a special pipe connected with the connection ring
located on top of the hood.


 CAUTION

!

The exhausting pipe is not supplied and must be purchased
apart.
Diameter of the exhausting pipe must be equal to that of the
connection ring.


 CAUTION

!

If the hood is supplied with active charcoal filter, then it must
be removed.

Connect the hood and discharge holes on the walls with a
diameter equivalent to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller
dimensions will cause a diminution of the suction performance
and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensable length.

!

Use a duct with as few elbows as possible (maximum
elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

 Filtration version

The aspirated air will be degreased and deodorised before
being fed back into the room.
In order to use the hood in this version, you have to install a
system of additional filtering based on activated charcoal.


Mounting

This type of cooker hood must be fixed to the ceiling.

Very heavy product; hood handling and installation must
be carried out by at least two persons.
Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.

 Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must
verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take
the weight of the hood.

Do not tile, grout or silicone this appliance to the wall.
Surface mounting only.

Operation


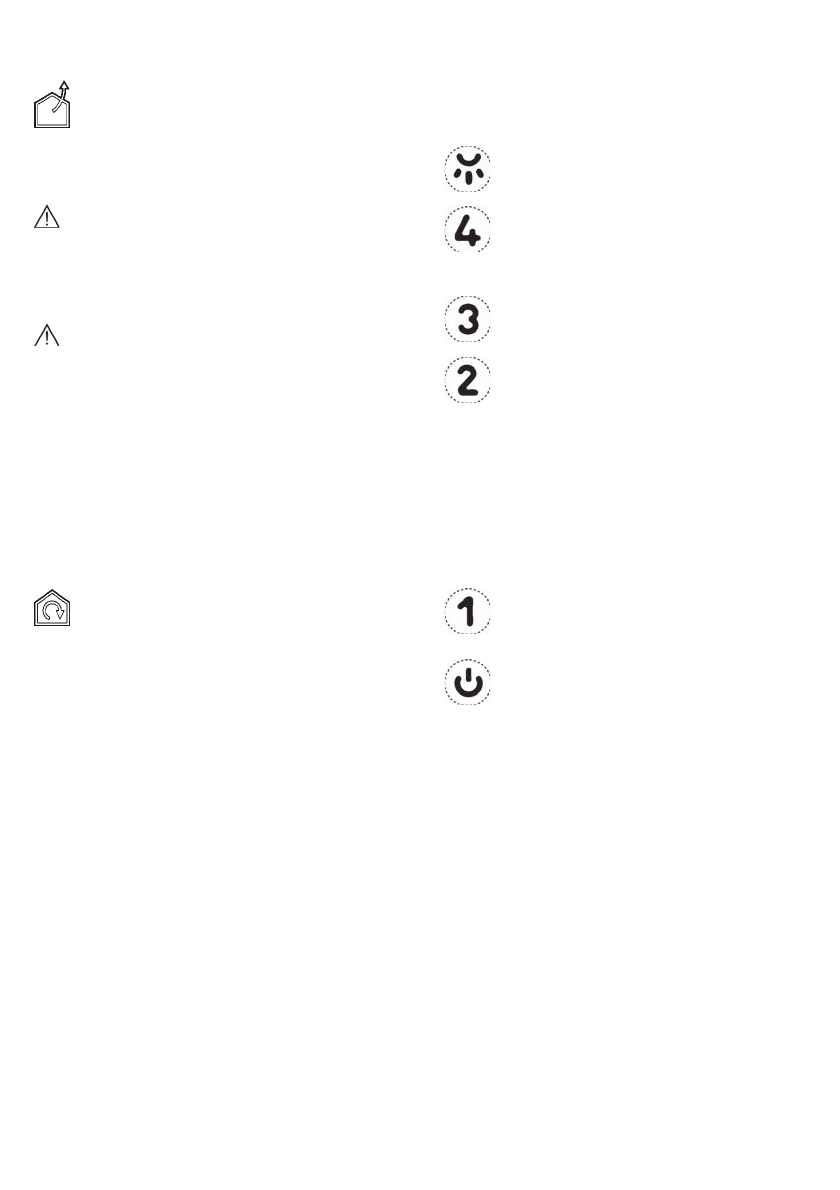

To select the functions of the hood just touch the commands.


Light key ON/OFF

Intensive speed selection key

 (suction power) -

duration 5 minutes

:

the hood sets this power and

at the end of the 5 minutes returns to the previous
setting.

High-speed selection key

(suction power).

Medium-speed selection key

 (suction power) -

when flashing it indicates the need to wash or
replace the carbon filter. This signal is normally
deactivated. To activate the alarm, disable the
electronic by pressing the

0

 button for 3 seconds.

Next, simultaneously press buttons

1

 and

2

 for 3

seconds; at first, only button

1

 will flash, then both

buttons

1

 and

2

 will flash to indicate activation.

Repeat the procedure to deactivate the alarm; at
first buttons

1

 and

2

 will flash and subsequently

only button

1

 to indicate deactivation.

Low-speed selection key

 (suction power) –

when flashing it indicates the need to wash the
fats filter.

Motor key OFF

 (stand by) – excludes the

electronics – reset wash/replace filters signals.

MOTOR OFF

Press briefly to switch the motor off.

RESET FILTERS SIGNALS

In functioning mode, after carrying out filter
maintenance, press the key until hearing the
sound signal. The flashing LED

1

(grease filter) or

2

(carbon filter) stops flashing.

EXCLUDING THE ELECTRONICS

Press the key for 3 seconds. The hood command
electronics will be excluded.
This function can be useful during the product
cleaning operations.
Just repeat the operation to reinsert the
electronics.


If the hood fails to operate correctly, briefly disconnect it from
the mains power supply for almost 5 sec. by pulling out the
plug. Then plug it in again and try once more before
contacting the Technical Assistance Service.
