βζ

η)  Set the engine level, and gradually ill up to upper limit mark with new oilέ
θ)  After illing, tightly secure oil cap, so that it will not loosen and cause leaksέ

If oil cap is not tightly secured, it may leakέ

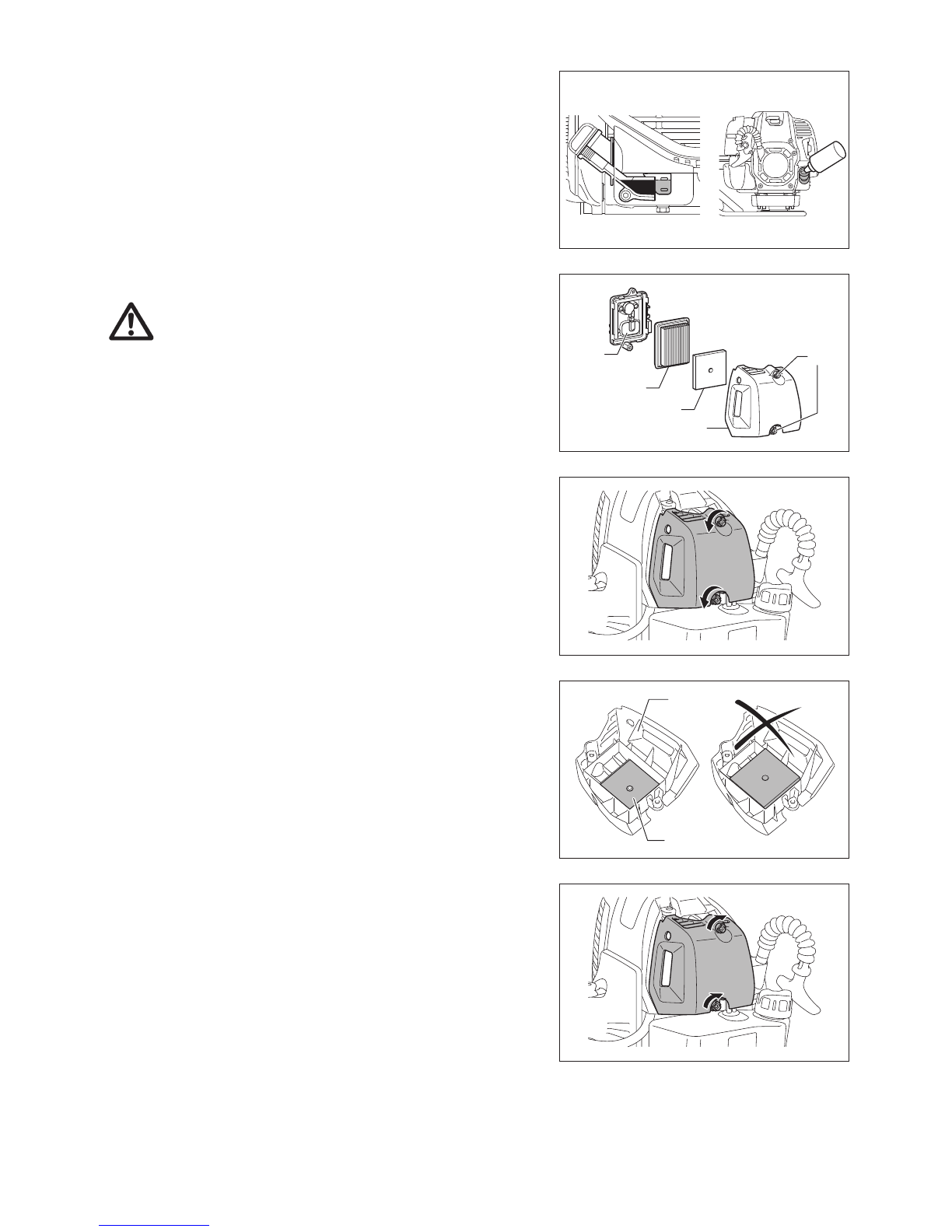

CLEANING OF AIR CLEANER

WARNINGμ Shut off the engine, keep away from open lames

and do not smoke.

Interval of Cleaning and Inspectionμ Daily (every 10 operating hours)

●

Turn  the  choke  lever  to  the  full  close  side,  and  keep  the  carburetor  off  from

dust or dirtέ

Removing air cleaner cover

●

δoosen two ixing bolts (1)έ

●

Pull and remove the air cleaner cover (β)έ

Cleaning element

●

Remove the elements (γ, ζ) and tap them to remove dirtέ

●

όor heavy contaminationμ
1)  Remove  the  element  (sponge)  (γ),  immerse  it  in  warm  water  or  in  waterά

diluted  neutral  detergent,  and  dry  it  completelyέ  Do  not  squeeze  or  rub  it
when washingέ

β)  Clean the element (paper) (ζ) by tapping it gentlyέ If you can use an air blow

gun, blow the compressed air onto the inside of the element (paper)έ Do not
wash the element (paper)έ

●

Before attaching the element (sponge), be sure to dry it completelyέ Insuficient

drying of the element (sponge) may lead to dificult startάupέ

●

Wipe out oil adhering around the air cleaner cover and separator plate (η) with

waste clothέ

Attaching air cleaner cover

●

όit the element (sponge) and element (paper)έ Insert the element (sponge) all

the way into the air cleaner coverέ

●

Tighten the air cleaner cover with two ixing boltsέ

NOTICEμ

●

Clean the elements several times a day, if excessive dust adheres to itέ Dirty

elements reduce engine power and make starting engine dificultέ

●

Remove  oil  on  the  elementsέ  If  operation  continues  with  the  elements

remaining not cleared of oil, oil in the air cleaner may fall outside, resulting in

contamination of the environmentέ

●

Do not put the elements on the ground or dirty placeέ τtherwise they pick up

dirt or debris and it may damage the engineέ

●

σever use fuel for cleaning the elementsέ όuel may damage themέ

POINTS ON OIδ

●

σever discard replaced engine oil in garbage, earth or sewage ditchέ Disposal

of  oil  is  regulated  by  lawέ  In  disposal,  always  follow  the  relevant  laws  and

regulationsέ  όor  any  points  remaining  unknown,  contact  Authorized  Service

Agentέ

●

τil  will  deteriorate  even  when  it  is  kept  unusedέ  Perform  inspection  and

replacement at regular intervals (replace with new oil every θ months)έ

(1)

(2)

(3)

(4)

(5)

(2)

(3)
