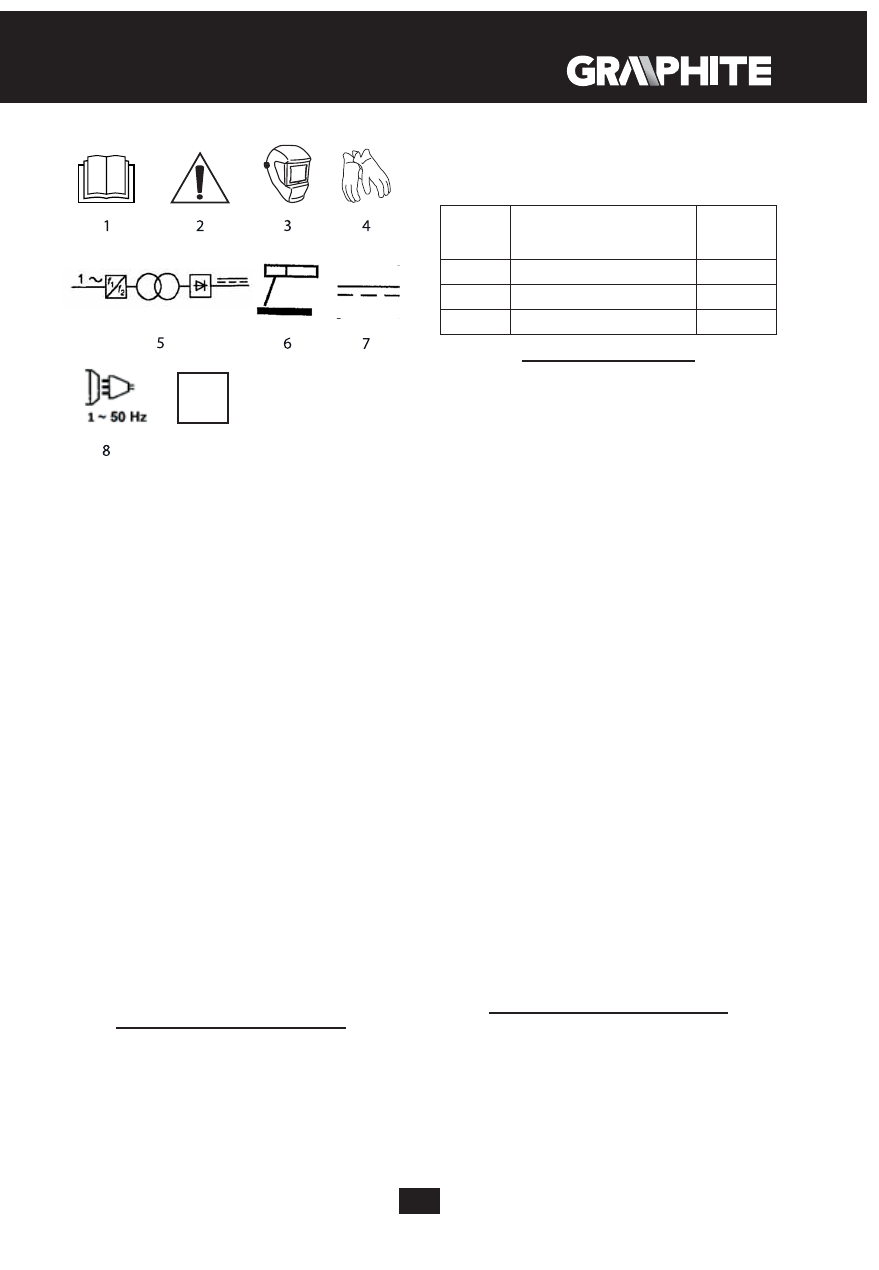

E X P L A N AT I O N  O F  U S E D  S YM B O L S

9

IP21S

1

0

S

1.

Read instruction manual, obser ve warnings and safety
conditions therein!

2.

Warning, use precaution measures

3.

Use welding mask (helmet).

4.

Use protective gloves

5.

Single phase transformer

6.

Manual welding with covered electrodes

7.

DC energy supply

8.

Power supply circuit is single phase, alternating current at
50 Hz

9.

Suitable for welding in environments at higher risk of
electric shock

10.

Welding power source designed to operate indoors

E M C  C L A S S I F I C AT I O N

EN 55011 – class B

CONSTRUC TION AND USE

The welding machine is a device with insulation class I and it
is used for MMA welding. MMA welding uses coated electrodes
installed in MMA welding cable clamp. These electrodes are
melted with the welded material. Welders have constant current
characteristics.

D E S C R I P T I O N  O F  D R AW I N G  PAG E S

Below enumeration refers to the device elements depicted on
the drawing pages of this manual.

1.

Ear th cable socket (-)

2.

MMA welding cable socket (+)

3.

Welding current setting knob

4.

Device power indicator

5.

Winding overheat indicator

E Q U I PM E N T  A N D  ACC E S S O R I E S

1.

Welding

shield

     -

1

pce

2.

Welding hammer with brush

- 1 pce

3.

MMA welding cable

- 1 pce

4.

Ear th

cable

      -

1

pce

PREPARATION FOR OPERATION

CO N N E C T I O N TO  P OW E R  S U P P LY  N E T WO R K I

Before connecting the tool to mains network make sure that
the supply voltage and current are matched with values shown
on the rating plate. Power cord must be protected with fuses
or circuit breakers, their operating range must be appropriate
for the tool operating power. Connect the welding machine to
power supply and make sure the control indicator is on.

CAUTION: Electric system should be equipped with residual
current circuit breaker appropriate for the rated current of
the welding machine. The system should be professionally
set and provide correct functioning at the rated load of the
residual current circuit breaker.

MMA

welder

model

Protection

Value

56H811

Residual current circuit breaker

≥ 16 A

56H812

Residual current circuit breaker

≥ 20 A

56H813

Residual current circuit breaker

≥ 25 A

OPERATION / SET TINGS

CAUTION: Always connect the welding machine to power
supply in the end, after preparing the material and making
sure that all the connections are done correctly.

MMA WELDING

To star t MMA welding:

•

Connect the ear th cable (

B

) to the socket (

1

).

•

Connect the MMA welding cable (

A

) to the socket (

2

).

•

Only when the device is correctly connected you can connect
power supply and turn the device on with the switch located
on the rear wall of the device.

•

Use the welding current setting knob (

12

) to set required

welding current, depending on welding electrode used and
thickness of processed piece.

INDICATION

The device features two indicating diodes (4, 5). Device power
indicator diode (4) shows when the device is connected to
electric power supply. Winding overheat indicator diode (5) turns
on when the device works too long at high load and the winding
temperature exceeds allowed value. When the diode (5) turns
on, stop operation immediately. Wait until winding temperature
drops down and the diode (5) turns off. Only when the diode
(5) turns off it is possible to continue device operation. When
the indicator diode (5) turns on immediately after connecting to
power supply, then the power supply voltage is different from
the rated voltage. In such case disconnect the device and check
the power supply.

CAUTION:

When you exceed rated operation time when

welding, the device temperature increases above allowed value.
This may cause damage and/or faster wear of the device.

IMPORTANT:

Provide good connection between welded object

and the welder clamp. Use the dial to set current intensity
adequate for material thickness and type of the weld. High
intensity of welding current may inter fere with operation of
other electrical devices.

Duty cycle X(%)

defines rated load time related to 10 minute

working cycle at a given load. For example, marking of 60%
means 6 minutes of operation at a given load (specified in the
table along with rated data and in the table on the device), and 4
minutes rest before star ting the device again.

OPERATION AND MAINTENANCE

CAUTION! Unplug the power cord from mains socket before
commencing any activities related to installation, adjustment,
repair or maintenance.
