English - 21

C

onnections

English

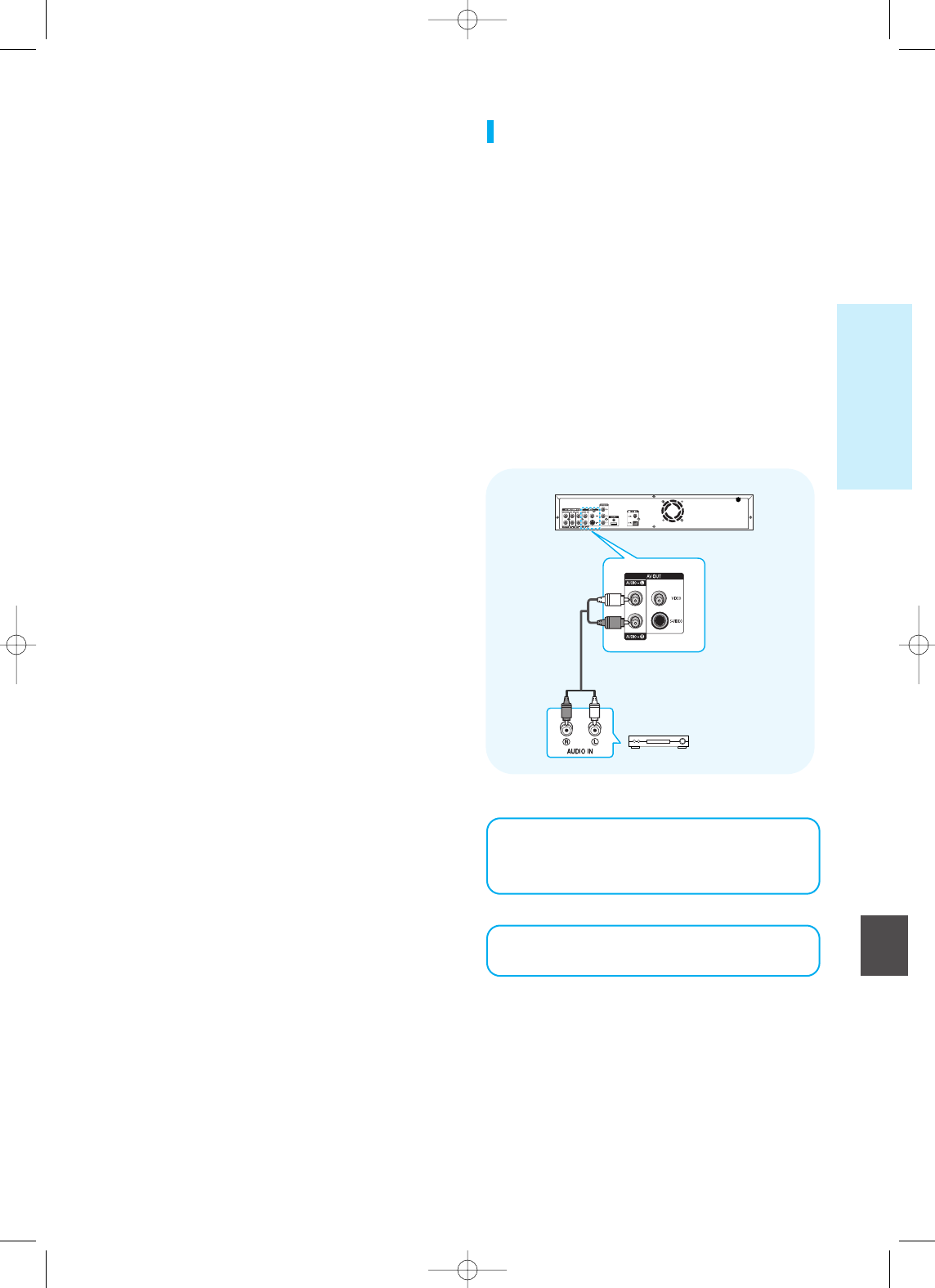

Connecting to an Audio System
(2 Channel Amplifier)

1. Using the audio cables, connect the AUDIO (red and

white) OUT terminals on the rear of the Blu-ray disc
player to the AUDIO (red and white) IN terminals of
your Amplifier.

2. Using the video signal cable(s), connect the VIDEO,

S-VIDEO, COMPONENT or HDMI OUT terminals on
the rear of the Blu-ray disc player to the VIDEO,
S-VIDEO, COMPONENT or HDMI IN terminal of your
TV as described on pages 18 to 20.

3.Turn on the Blu-ray disc player, TV and Amplifier.

4. Press the input select button of the Amplifier to select

external input in order to hear sound from the
Blu-ray disc player. Refer to your Amplifier's user
manual to set the Amplifier's audio input.

• HDMI (High Definition Multimedia Interface)

HDMI is an interface that enables the digital
transmission of video and audio data with just a
single connector.
Using HDMI, the Blu-ray disc player transmits a
digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.

• HDMI connection description

HDMI connector - Supports video and digital audio
data (LPCM or Bit Stream).

- HDMI outputs only a pure digital signal to the TV.

- If TV does not support HDCP (High-bandwidth

Digital Content Protection), random noise
appears on the screen.

• Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal.
However, when playing a BD/DVD, the data
transmitted to a TV is digital. Therefore either a
digital-to-analog converter (in the Blu-ray disc
player) or an analog-to-digital converter (in the TV)
is required. During this conversion, the picture
quality is degraded due to noise and signal loss.
HDMI technology is superior because it requires no
D/A conversion and is a pure digital signal from the
player to your TV.

• What is the HDCP?

HDCP (High-band width Digital Content Protection)
is a system for protecting BD/DVD content
outputted via HDMI from being copied. It provides
a secure digital link between a video source (PC,
DVD. etc) and a display device (TV, projector .
etc). Content is encrypted at the source device to
prevent unauthorized copies from being made.

RED

WHITE

RED

WHITE

2-Channel stereo amp

Audio Cable

Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.

“DTS” and “DTS DIGITAL SURROUND” are
trademarks of DTS, Inc.

 229L_P1000_XER_ENG_IB_1~38  12/22/06 4:03 PM  Page 21
