7

RQT7448

G

e

tt

in

g

 st

ar

te

d

When there is no 21-pin Scart terminal on the television (

➡

page 8)

∫

RGB

This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.

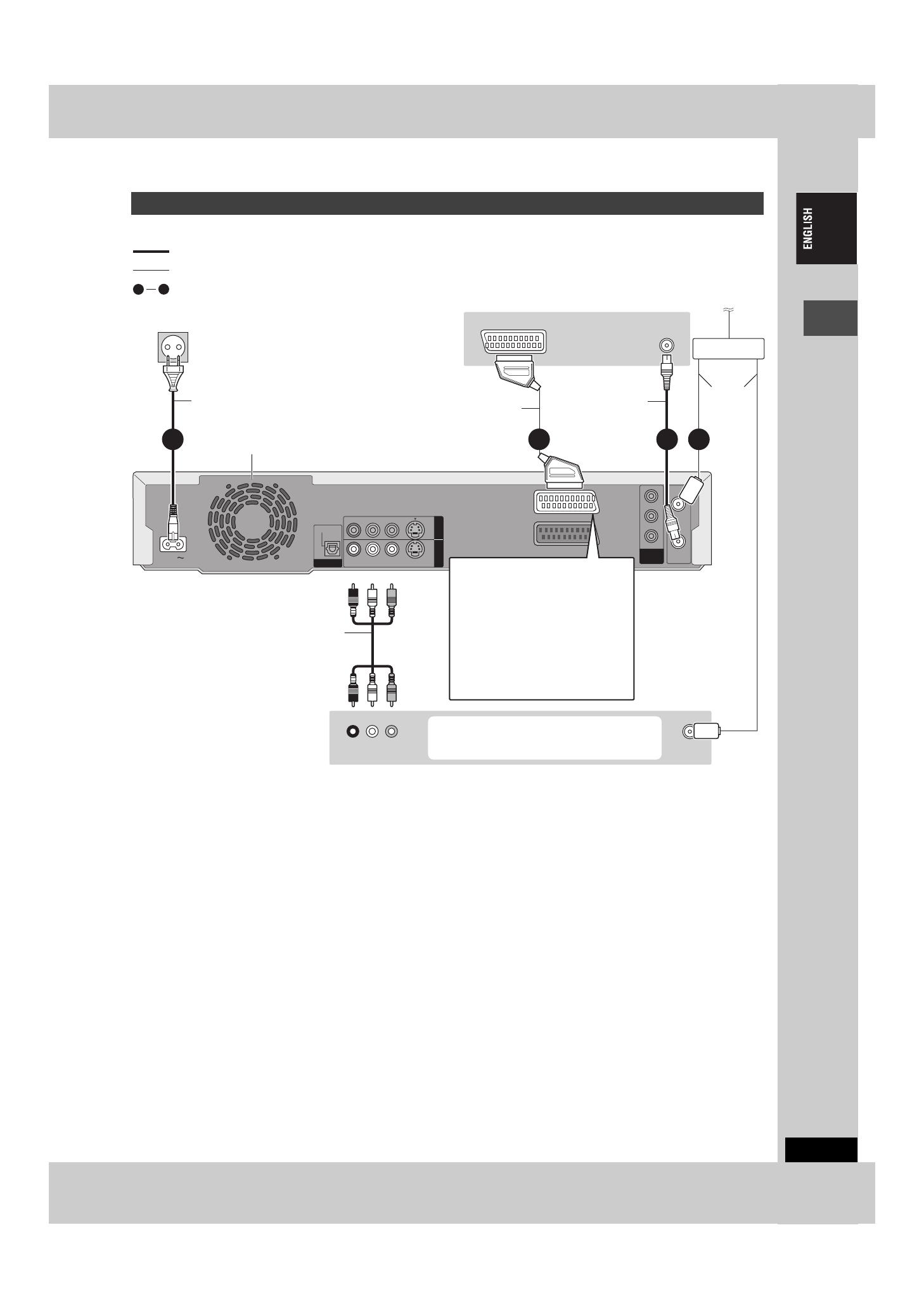

Connecting a television with 21-pin Scart terminal and VCR

R - AUDIO - L

VIDEO

P

R

S-VIDEO

R - AUDIO - L

VIDEO S-VIDEO

OPTICAL

OUT

AV
4

 I

N

RF IN

RF OUT

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

COMPONENT

VIDEO OUT

P

B

Y

AV1  (TV)

AV2  (DECODER/EXT)

AC IN

AV IN

VHF/UHF

RF IN

VHF/UHF

RF IN

R         L

AUDIO OUT VIDEO OUT

2

1

3

4

1

4

(PROGRESSIVE/
 INTERLACE)

To the aerial

Splitter

Television’s

rear panel

Aerial

cable

VCR’s rear panel

Cooling fan

RF

coaxial cable

This unit’s rear panel

Red White Yellow

Audio/Video cable

To household mains socket

(AC 220–240 V, 50 Hz)

Fully wired 21-pin Scart cable

You can also connect with the AV2 terminal
on this unit using the 21-pin Scart cable.

Red White Yellow

indicates included accessories.

indicates accessories not included.

are required connections. Connect in the numbered order.

AV1 terminal

If your television is equipped with RGB
input capability, by connecting with a
fully wired 21-pin Scart cable you can
see video using RGB output on this
unit (

➡

below).

To output in RGB select
“RGB ( without component )” from
“AV1 Output” in the SETUP menu
(

➡

page 44) after tuning is completed

(

➡

page 10, 11).

Use a splitter if you
also want to connect
the aerial to your VCR.

AC mains lead

Connect only after all other
connections are complete.
