Any  shelf  or  unit  of  combustible  material  should  be  at  least  660mm  above  the

hotplate.  In  addition  an  area  of  75mm  wide  on  either  side  and  behind  the  hotplate

must  be c lear  of  any  combustible  materials  to  a  height  of  400mm.  Units  must  not

overhang over the hob.

Kitchen  cabinets  may  be f itted  flush  to  the  sides  of  the  cooker,  but  to  allow  for

cleaning and servicing

It  is  recommended  that  a  2.5mm  gap be al lowed  on  each  side  so  that  the  cooker

may be moved if necessary.

The  worktop  or  kitchen  cabinets  must  not  protrude  beyond  the  height  of  the  cooker

hotplate frame.



Ventilation                      Your appliance is not connected to a combustion products evacuation device. Th

e  room  in  which  it  is  to  be  installed  must  have  an  air  supply  in  accordance  with

national  standards.  The  room  must  have  an  opening  window  or  equivalent,  and

some  rooms  may  require  a  permanent  vent  in  addition  to  the  opening  window.

General  guidelines:  The  cooker  must  not  be i nstalled  in  a b edsit  room  of  20m³  or

less. If  the cooker is installed in a room with a volume of less than 5m³, then a vent

with an effective area of 100cm³ is required.  If it is installed in a room with a volume

of  between  5m³  and  10m³,  then  an  air  vent  with  an  effective  area  50cm³  is

necessary.  If  there  are  other  fuel  burning  appliances  in  the  room,  please  consult

national standards for guidance.





Gas connection            Gas connection to the hob should be made by flexible connecting reinforced tube

.





compliant with BS 669-1. A 1/2" BSP threaded male fitting is supplied with the







cooker so that the flexible tube can be connected to the gas inlet.  Appropriate







coupling connector and gas hose need to be supplied by the installer



 Before connecting the appliance to the gas network, make sure that the data on the



rating plate attached on the under-oven drawer or on the back of the cooker are

                                   compatible with what is indicated for the gas distribution network.

A  rating  plate  attached  on  the  last  page  of  this  handbook  and  in  the  under-oven

drawer  (or  on  the  back)  of  the  appliance  indicates  the  appliance  adjustment

conditions: type of gas and operating pressure.

IMPORTANT:  This  appliance  must  be i nstalled  in  compliance  with  current  national

standards in force and used only in a well-ventilated room.

WARNING:  It  should  be  recalled  that  the  appliance  utilises  a  threaded  1/2"  gas

cylindrical male fitting according to UNI-ISO 228-1.

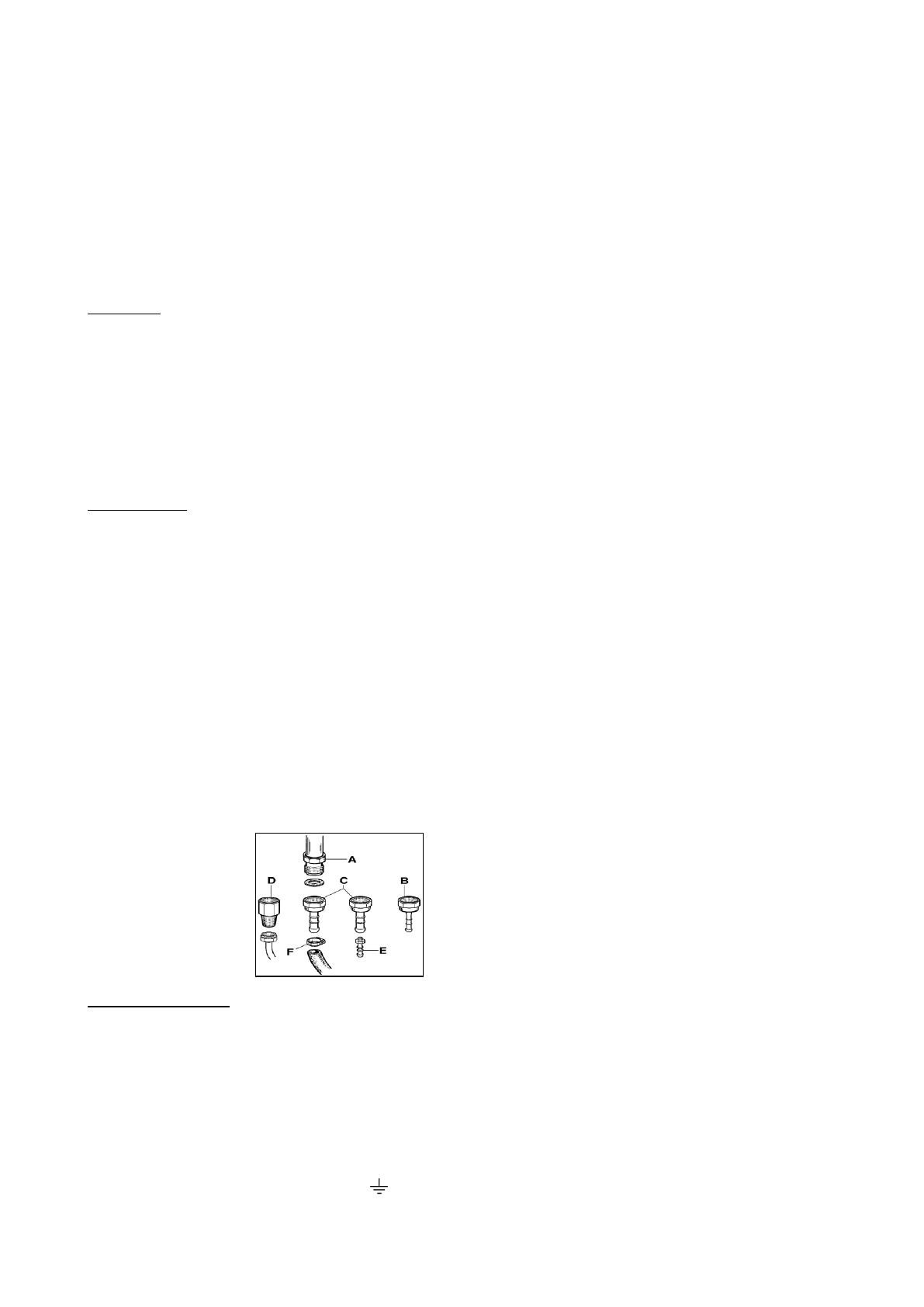

To  connect  the  appliance  to  the  gas  network  with  a f lexible  rubber  hose,  a

supplemental  hose  nipple  fitting  is  needed  (Fig.3)  which  is  supplied  with  the

appliance.The appropriate coupling connector and gas hose need to be supplied by

the installer.

 fig.3





Electrical connection      The electric connection must comply with the current legal standards and

regulations.

Before making the connection, check that:

- The system electrical rating and the current outlets are adequate for the maximum

power output of the appliance (see the rating plate applied to back of the cooker).

-  The  outlet  or  the  system  is  equipped  with  an  efficient  ground  connection  in

accordance  with  the  current  legal  standards  and  regulations.  The  company  will  not

be responsible for the non-compliance with these instructions.



                                       letter L (phase)

 = brown wire;

                                       letter N (neutral)

 = blue wire;

                                       ground symbol

 = green-yellow wire;
