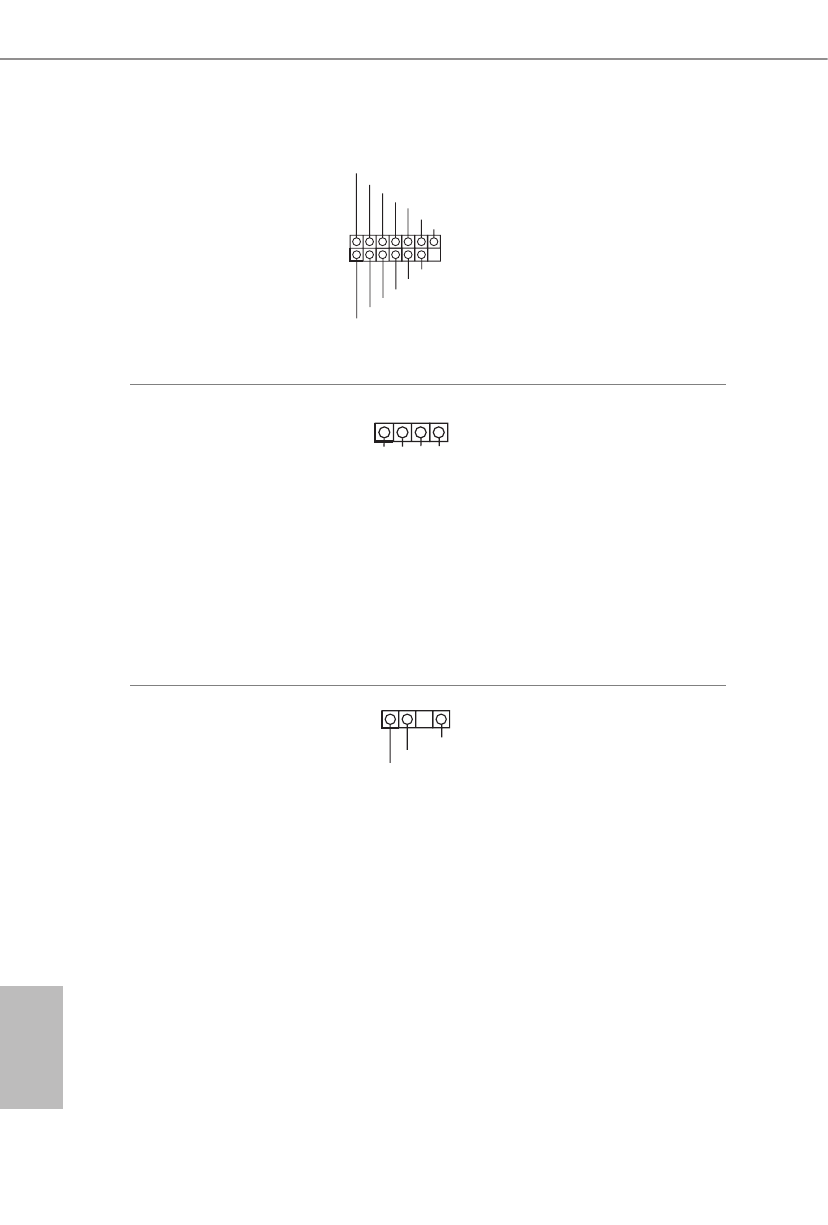

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1,  No. 11)

1

SPI_DQ3

+3.3V

SPI_DQ2

SPI_CS0

TPM_Present

CLK

SPI_MISO

SPI_MOSI

GND

SPI_TPM_CS#

RST#

RSMRST#

TPM_PIRQ

This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certificates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.

RGB LED Headers
(4-pin RGB_LED1)
(see p.1,  No. 28)
(4-pin RGB_LED2)
(see p.1,  No. 7)

12V G R B

1

RGB headers are used to connect
RGB LED extension cables which
allow users to choose from
various LED lighting effects.

Caution: Never install the
RGB LED cable in the wrong
orientation; otherwise, the cable
may be damaged.

*Please refer to page 40 for
further instructions on this
header.

Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 27)
(3-pin ADDR_LED2)
(see p.1, No. 8)

These headers are used to connect
Addressable LED extension ca-
bles which allow users to choose
from various LED lighting
effects.

Caution:

Never install the

Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.

*Please refer to page 41 for
further instructions on this
header.

VOUT

DO_ADDR

GND

1
