B550 Pro4

29

English

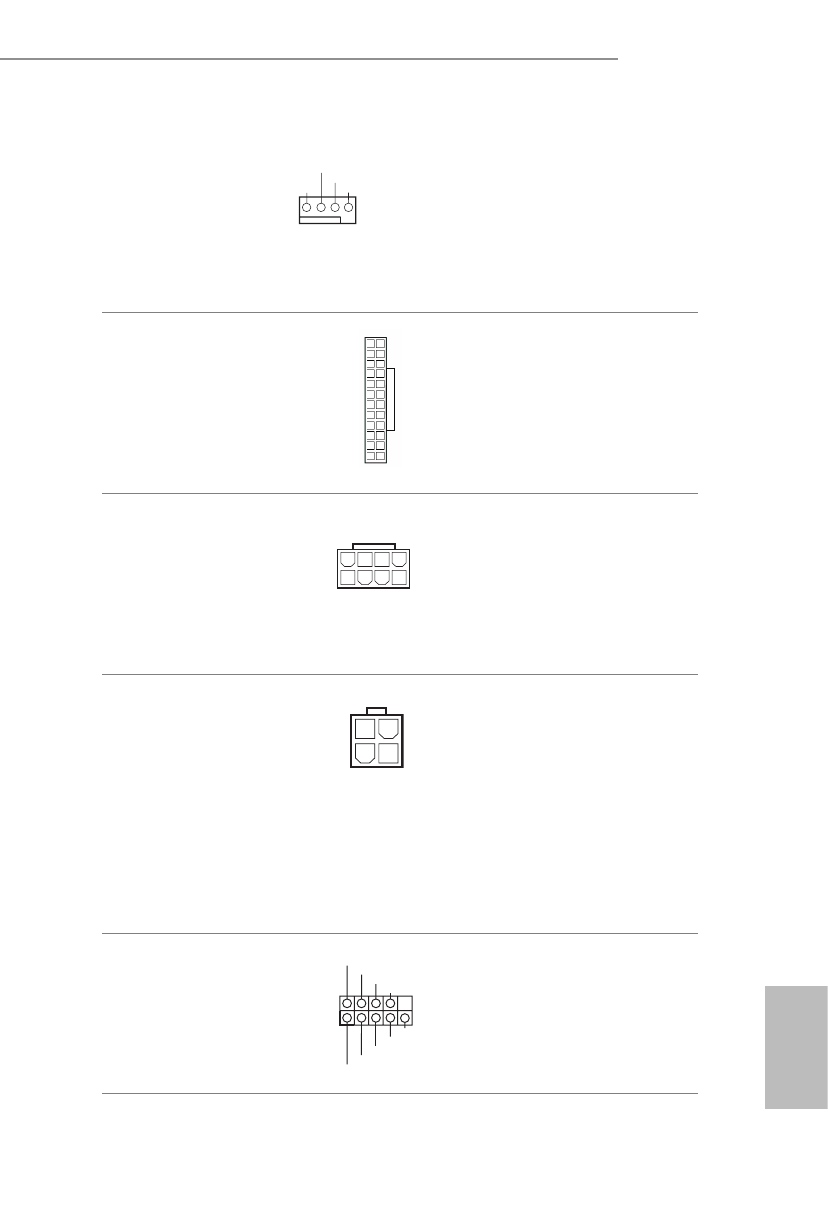

CPU Fan / Waterpump
Fan Connector
(4-pin CPU_FAN2/WP)
(see p.1, No. 1)

GND

FAN_VOLTAGE

CPU_FAN_SPEED

FAN_SPEED_CONTROL

1    2    3    4

This motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 9)

12

1

24

13

This motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 2)

This motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.

ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.1, No. 3)

Please connect an ATX
12V power supply to this
connector.

*Connecting an ATX
12V 4-pin cable here is
optional.

*The power supply plug
fits into this connector in
only one orientation.

Serial Port Header
(9-pin COM1)
(see p.1, No. 29)

C C T S # 1

R R T S # 1

D D S R # 1

D D T R # 1

R R X D 1

G N D

T T X D 1

D D C D # 1

1

R R I # 1

This COM1 header
supports a serial port
module.

4

 1

8

5
