en

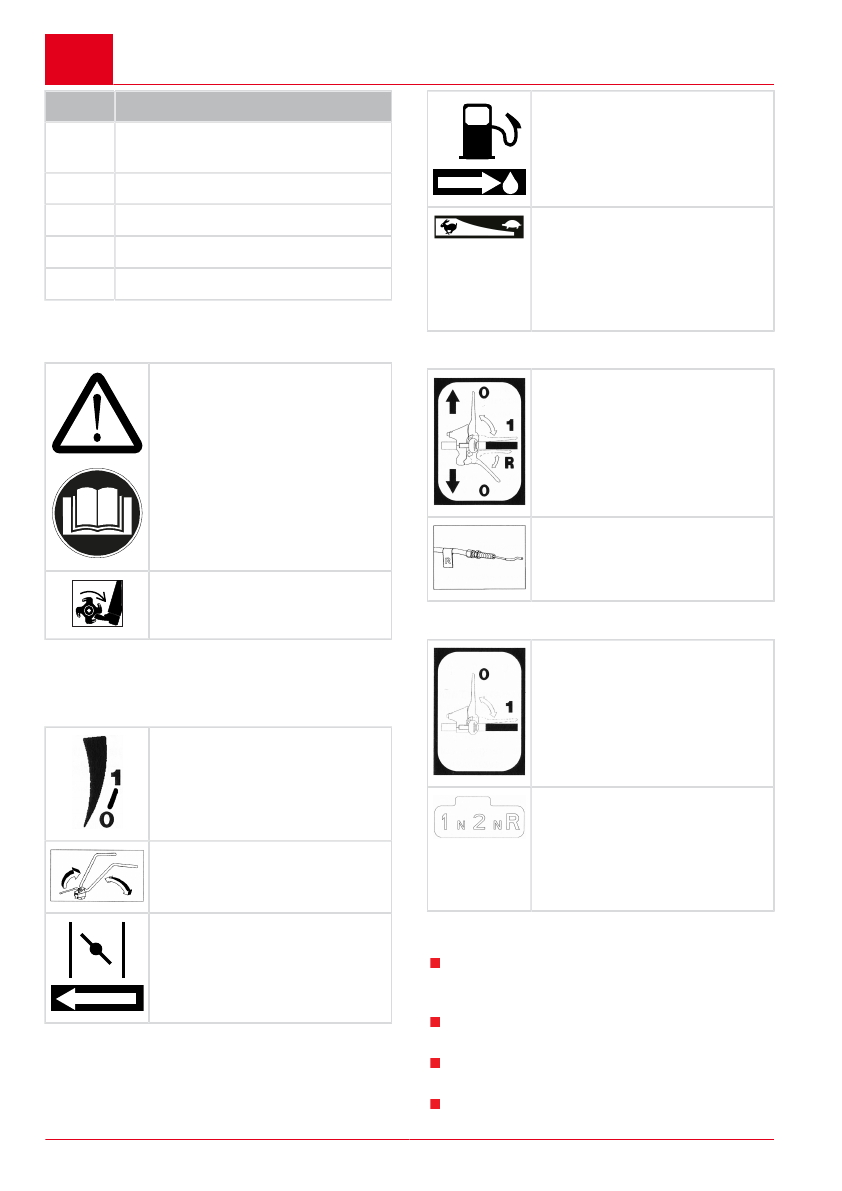

Product description

20

7505 VR / 7505 V2R

Item

Controls

(01b/15) 7505 V2R: Gear lever for 2 forward

gears and 1 reverse gear

(01/16) Choke lever
(01/17) Petrol cock
(01/18) Controller for the motor speed
(01/19) Grip for starter rope

Safety symbols on the appliance

Safety symbols on the cultivator:

Read the operating instructions

before starting operation.

Rotating tool! Keep your hands

and feet away!

For the safety symbols on the motor or petrol tank,

see the operating instructions of the motor.

Operating symbols on the appliance

Sticker on the gas lever:

1 = Start motor.

0 = Stop motor.

Sticker on the handlebar:

Release the cam lever and turn

the handlebar.

Push the choke lever towards

the choke symbol.

Push the lever of the petrol cock

ON in the direction of the arrow.

Adjusting the motor speed or

work speed:

Direction of the ”Hare” = in-

crease work speed.

Direction of the ”Tortoise” = de-

crease work speed.

7505 VR:

Sticker for tiller blades:

1 = tiller blades in forward gear.

R = tiller blades in reverse gear.

0 = stop tiller blades.

Label for reverse gear Bowden

cable

7505 V2R:

Sticker for tiller blades:

1 = start tiller blades.

0 = stop tiller blades.

Plate for gear display:

1 = 1st gear

N = idle

2 = 2nd gear

N = idle

R = reverse gear

SAFETY INSTRUCTIONS

Young  people  under  16  years  of  age,  and

people  who  do  not  know  the  instructions  for

use, are not allowed to use the machine.
The device should not be used on rocky ter-

rain.
Comply  with  local  regulations  on  the  mini-

mum age of people operating the machine.
Do not wear loose clothing.
