5.5 Replacing air filter

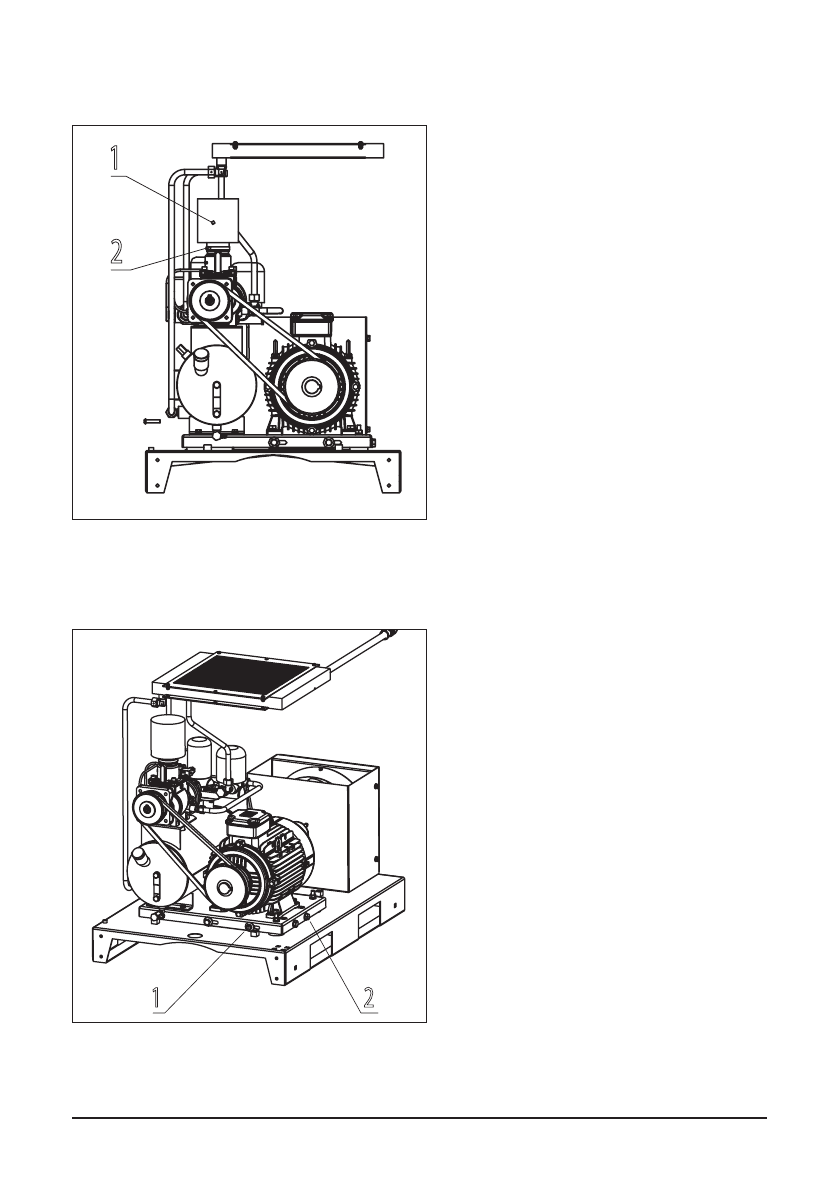

Fig. 5.6 Changing drive belt

The  air  filter  (1)  is  attached  to  the

compressor’s intake valve.

In order to replace it, open the left side
panel, loosen the clamp (2) securing the

filter. Remove the contaminated filter, and

detach the clamp from it.

Set  the  new  filter  in  its  place  and  fit  into

place with the clamp.

5.6 Changing drive belt

Open  the  left  side  panel,  loosen  the  4

screws (3) securing the bracket of the air
end by turning them 2 revolutions.

Loosen the 2 bolts of the motor (2) and the
2 corresponding nuts (1) on the tensioner
using a wrench. Remove the old belts from
the pulleys and install the new belts.

After installing the new belt, tighten the
belt with the appropriate tensile force
(see section 5.3 Checking Drive Belt).

Tighten the 2 bolts of the motor (2) and
the 2 corresponding nuts on the tensio-

ner.  Tighten  the  4  screws  of  the  brak

-

ket of the air end. Check the belt tensi-
on within four hours of the compressor’s
operation in accordance with section 5.3.

Fig. 5.5 Air filter replacing
