32

Version 1.3

5.3 Checking drive belt

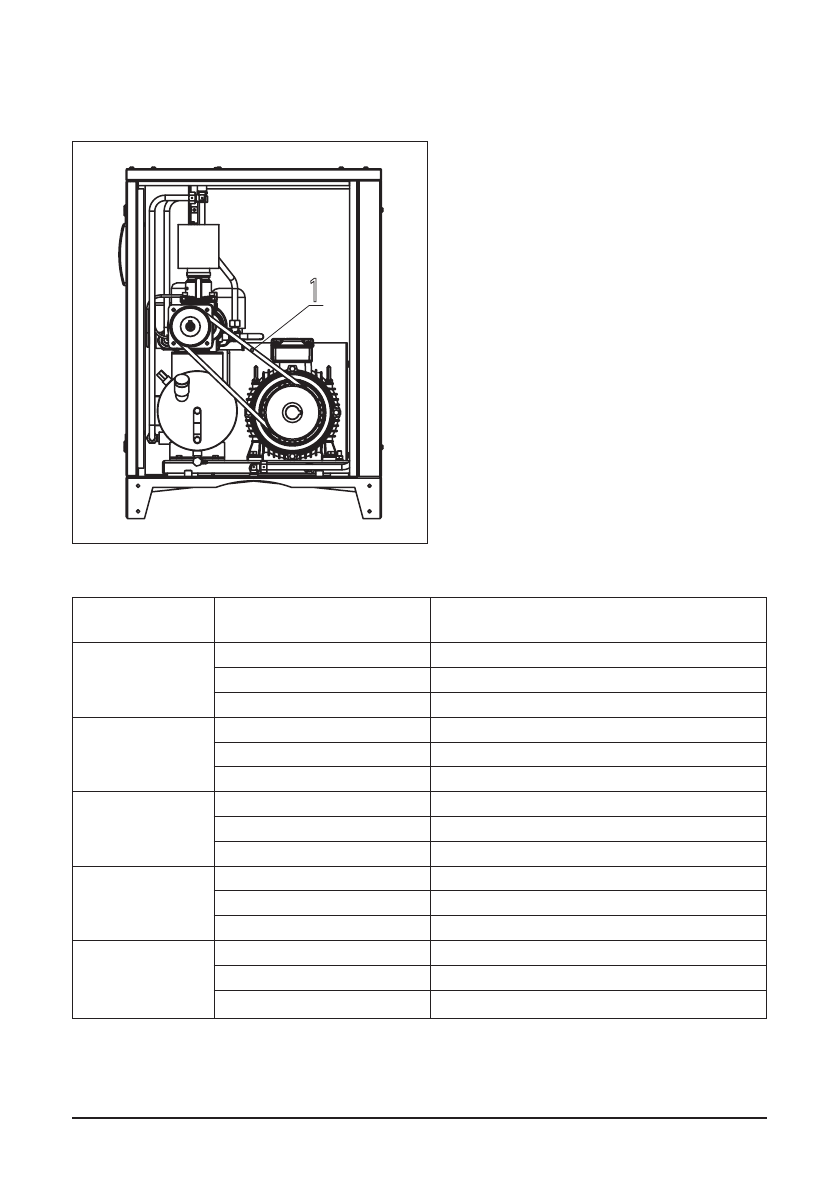

Fig. 5.3 Checking drive belt

Model

Maximum working pressure,

bar

Tension force F,

N

F05 - F07,

FR05 - FR07,

FRD05  -FRD07

8

300

10

300

13

400

F11, FR11, FRD11

8

250

10

250

13

300

F15, FR15, FRD15

8

250

10

300

13

300

F18, FR18,

FRD18

8

250

10

300

13

300

F22, FR22,

FRD22

8

400

10

450

13

500

Check on a monthly basis drive belts con-
dition and the tension on drive belts.

In order to access the belt, stop the com-

pressor and remove the left side panel.

Inspect belts (1) for signs of wear on side

edges and for cracks. If belts are dama-

ged, then they should be replaced. Using

belt tension gauge, check the tensile force

of the compressor belts.

1
