11

COMPRAG Screw air compressor F-Series

2.2 General description

The  F-Series  oil-filled  screw  compressor  series  is  designed  for  uninterrupted  and  efficient

compressed-air production.

The F-Series compressor is an electric motor-operated, intake-regulated, belt-driven and air-
cooled compressor, enclosed in a sound-insulated canopy. An electronic controller t-Log  with
an LCD indicator panel is provided, including start and stop buttons and an emergency stop
button. Pressure and  temperature relays are used for system control and protection.

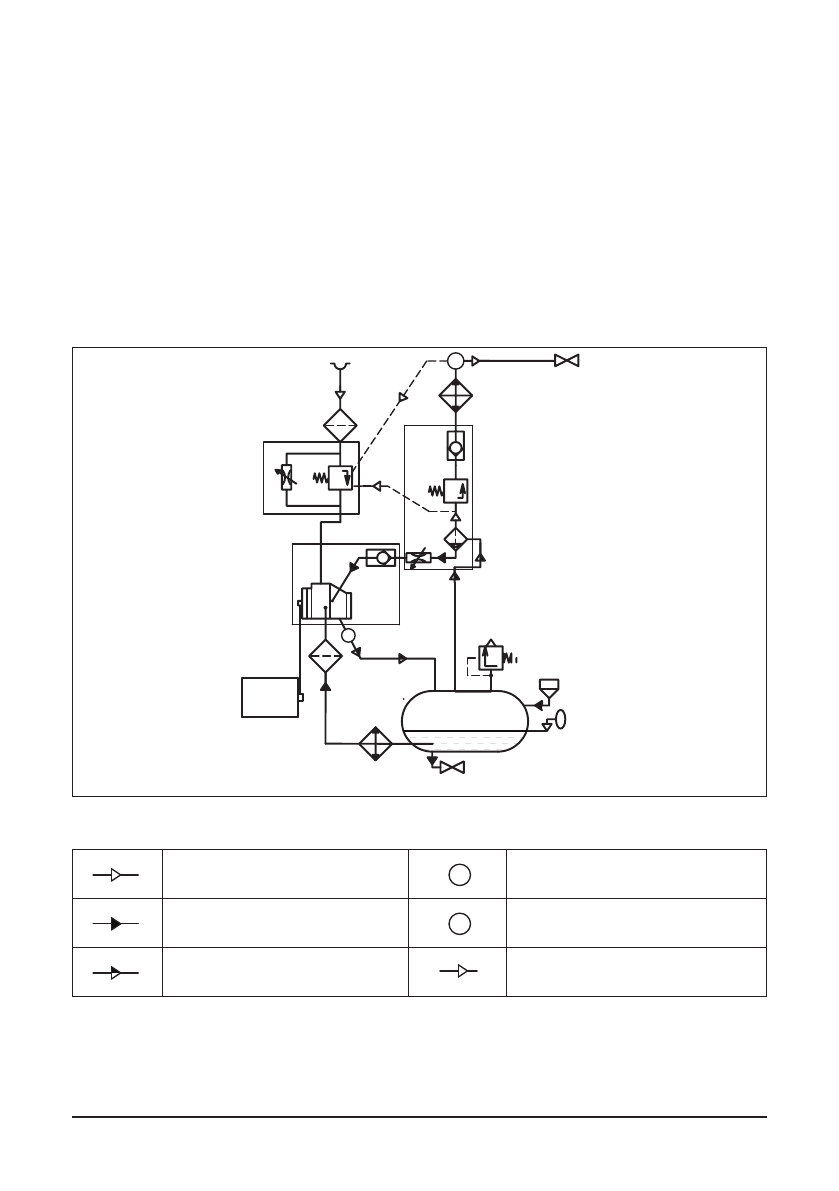

2.3 Function diagram and main components

Т

Р

Air flow

Т

Р

Temperature sensor

Т

Р

Oil flow

Т

Р

Pressure sensor

Т

Р

Air/Oil mix flow

Т

Р

Pneumatic control line

Fig. 2.3.1 Function diagram F 05..-F22.

M

1

2

3

6

7

8

11

12

9

10

13

20

4

5

18

14

16

17

19

P

T

к потребителю

to the user
