GB

Installation

these instructions are aimed at qualified fitters as a
guide to installation, adjustment and maintenance in
compliance with the laws and standards in force. The
operations must always be carried out with the appliance
disconnected from the electricity supply.

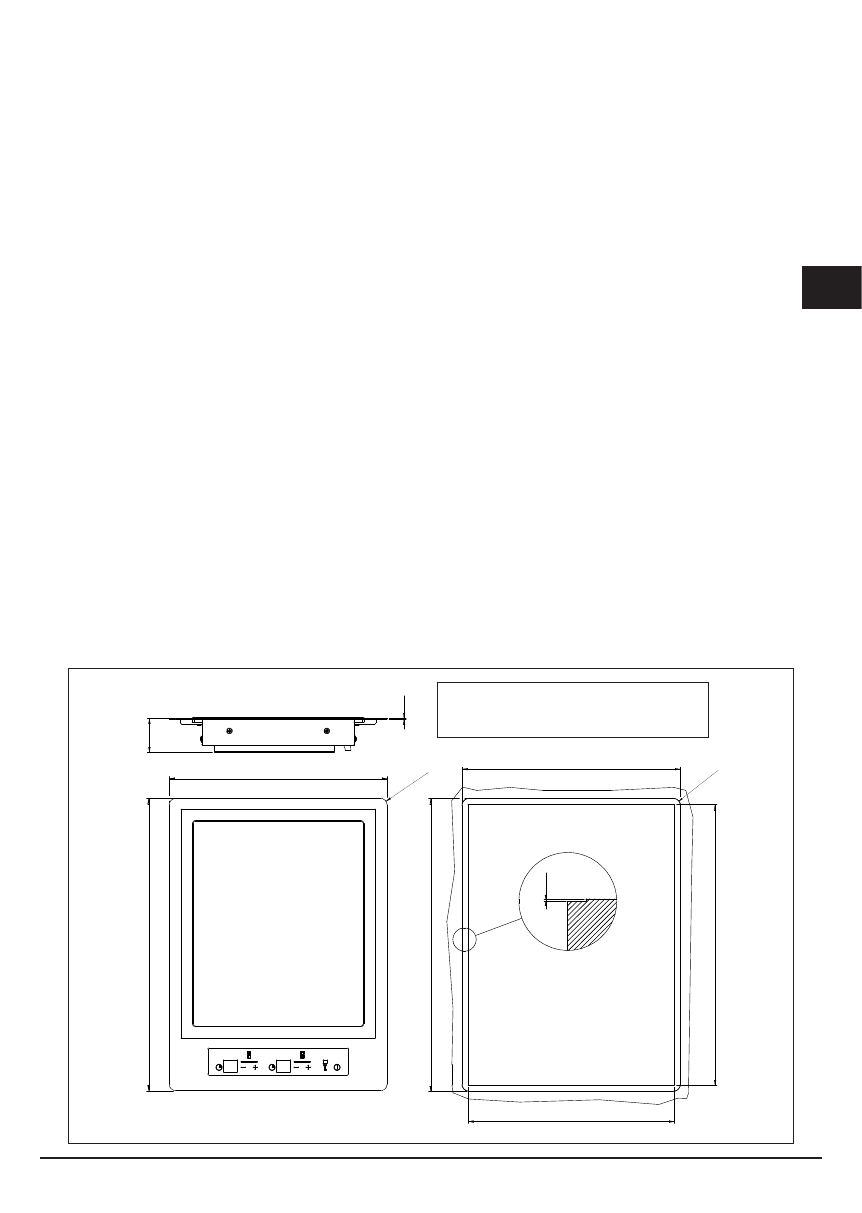

Positioning (Fig. 2)

The appliance is made to be fitted into a counter top, as
show in the figure. Apply the sealant supplied around the
whole perimeter of the hob. Installation over an oven is
not recommended, but if this is necessary, check that:

-  the oven has an efficient cooling system;
-  there is no passage of hot air from the oven to the

hob;

-  allow air passages as shown in the figure (Fig. 3).

To fasten the surface to the top, use the brackets with
screws provided and the sealant, which is placed under
the perimeter edge of the surface and the top where it is
installed (see Fig. 4).

Electrical connection (Fig. 5)

Before connecting to the electricity supply, ensure that:

-  the characteristics of the system are such as to satisfy

that indicated on the registration plate applied to the
bottom of the hob;

- the system has an effective earth connection

compliant with the standards and laws in force.
Connection to earth is compulsory by law.

If the appliance has no cable and/or plug, use material
suitable for the absorption indicated on the registration
plate and for the working temperature. The cable must
not reach a temperature higher than 50°C above room
temperature in any point.
For direct connection to the network it is necessary
to fit an omnipolar switch of a suitable size to ensure
disconnection of he network with a contact opening
distance that allows complete disconnection in the
conditions of the overtension category III, compliant with
the installation regulations (the yellow/green earth wire
must not be interrupted).
The omnipolar socket or switch must be easy to reach
when the appliance is installed.
N.B.:

- The manufacturer declines all responsibility if the

usual accident prevention standards and the above
instructions are not observed.

If the power cable is damaged, it must be replaced by
the manufacturer or by the manufacturer’s technical
servicing network, or by a similarly qualified operator, to
prevent every possible risk.

Installation instructions

1

R 1

1

510

60

R

12

381

+1

0

511

+1 0

360

+1

0

490

+1 0

1,5

380

Fig. 2

N.B. For the Semifilo version, it is not
necessary to lower the hob by 1.5 mm.
