8

GB

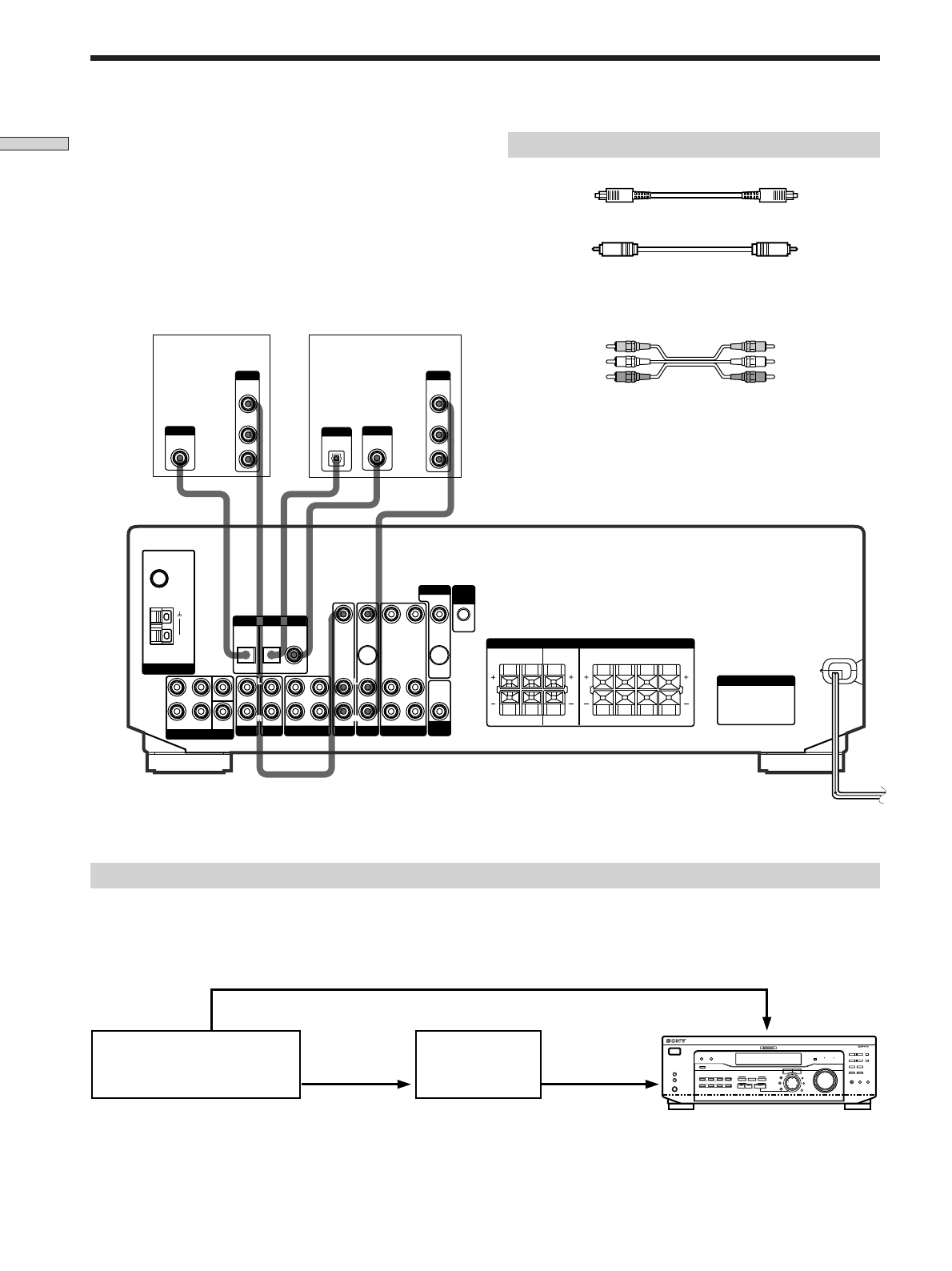

Hooking Up the Components

DVD player (etc.)*

Required cords

Optical digital cords (not supplied)

Coaxial digital cord (not supplied)

Audio/video cords (not supplied)

When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.

Connect the digital output jacks of your DVD player and
satellite tuner (etc.) to the receiver ’s digital input jacks to
bring the multi channel surround sound of a movie
theater into your home. To enjoy full effect of multi
channel surround sound, five speakers (two front
speakers, two rear speakers, and a center speaker) and a
sub woofer are required. You can also connect an LD
player with an RF OUT jack via an RF demodulator, such
as the Sony MOD-RF1 (not supplied).

Digital Component Hookups

Please note that you cannot connect an LD player ’s AC-3 RF OUT jack directly to the receiver ’s digital input jacks. You
must first convert the RF signal to either an optical or coaxial digital signal. Connect the LD player to the RF demodulator,
then connect the RF demodulator ’s optical or coaxial digital output to the receiver ’s OPTICAL or COAXIAL DVD/LD IN
jack. Refer to the instruction manual supplied with your RF Demodulator for details on AC-3 RF hookups.

Example of LD player connected via an RF demodulator

RF demodulator

LD player

Black

                                            Black

Yellow

                                                Yellow

Yellow (video)

Yellow (video)

White (L/audio)

White (L/audio)

Red (R/audio)

Red (R/audio)

Note

When making connections as shown above, be sure to set INPUT MODE (

3

 on page 23) manually. The receiver may not operate correctly

if INPUT MODE is set to “AUTO.”

* When making digital audio connections to a DVD player, connect to either the coaxial OR optical digital jacks, and not

both. It is recommended to make digital audio connections to the coaxial jack.

** STR-DE545 and STR-SE501 only.

Note

The optical and coaxial digital input jacks on the receiver are
compatible with sampling frequencies of 32 kHz, 44.1 kHz, and
48 kHz.

DIGITAL

COAXIAL

OUTPUT

VIDEO

OUT

R

AUDIO

OUT

OUTPUT

L

DIGITAL

OPTICAL

OUTPUT

VIDEO

OUT

AUDIO

OUT

OUTPUT

DIGITAL

OPTICAL

OUTPUT

FRONT

REAR

SUB

WOOFER

AUDIO IN

AUDIO IN

TV/SAT

**

**

OPTICAL

OPTICAL

COAXIAL

DVD/LD

REC OUT

IN

AUDIO IN

VIDEO IN

AUDIO IN

VIDEO IN

AUDIO OUT

AUDIO IN

VIDEO OUT

VIDEO IN

VIDEO OUT

S-VIDEO

OUT

S-VIDEO

 IN

AUDIO

OUT

4

Ω

8

Ω

CENTER

L

R

L

R

L

R

L

R

L

R

FRONT

REAR

R

L

R

L

R

L

R

SWITCHED 120W/1A MAX

SWITCHED 120W/1A MAX

AC 120V 60Hz

AC 120V 60Hz

L

R

L

R

L

CENTER

B    FRONT    A

FM

75

Ω

COAXIAL

AM

MD/TAPE

ANTENNA

DIGITAL IN

TV/SAT

5.1 CH INPUT

AUX

CD

DVD/LD

VIDEO

SUB

WOOFER

IMPEDANCE

SELECTOR

SPEAKERS

CTRL
A1

I I

MONITOR

AC   OUTLET

TV or Satellite

tuner

DVD/LD

VIDEO IN

DIGITAL

DVD/LD IN

(COAXIAL)

(OPTICAL)

AC-3 RF
OUT

VIDEO OUT

MULTI CHANNEL DECODING

MASTER VOLUME

DISPLAY

INPUT MODE

VIDEO

MD/TAPE

CD

TUNER

AUX

DVD/LD

TV/SAT 5.1CH INPUT

CINEMA STUDIO

LEVEL

I

–

i

+

SET UP

BASS BOOST

TONE

FM/AM

MUTING

TONE

BASS

BOOST

MEMORY

FM MODE

RDS EON RDS PTY

PRESET/

–   PTY SELECT   +

–   TUNING   +

NAME

ENTER

SUR

BASS/

TREBLE

SOUND FIELD

A. F. D.

A

B

C

2CH

MODE

DIMMER

SPEAKERS

R

 ON

r

 OFF

A

PHONES

B

?

/

1

SHIFT

DIGITAL

DVD/LD IN

(COAXIAL)

or (OPTICAL)
